Speed Dial Outdoor IP Vandal Proof Public Emergency Telephone For Kiosk-JWAT151V

Short Description:

Kiosk device requires emergency, convenient,fast telephones communication.

Joiwo team not only understands this, but also strives to exceed these expectations even for your toughest customers. Our telephones offer excellent quality and have proven to withstand areas of high usage, abuse,vandalism and outdoor environment.

Joiwo Public Telephones featured vandal resistant, steel material, IP66 waterproof defend grade which could be installed on the outdoor , Easy to clean,high corrosion resistant, high mechanical strength and strong impact resistance.

With a professional R&D team in industrial telecommunication solution filed since 2005 Year, Each Public Emergency Telephone have been passed the FCC,CE international certificates.

Your first-choice provider of innovative communication solutions and competitive products  for the Kiosk communication.



Product Detail

Product Tags

Product Introduction

JWAT151V Vandal Proof Public Emergency Telephone is designed to make a efficient Kiosk telephone system solution.
The body of the telephone is made of SUS304 stainless steel(cold rolled steel optional), corrosion resistance and oxidation resistance, with high tensile handset which could afford 100kg force strength. Extremely Easy to install and adjust to wall.Easy to fix the housing and backplate through 4 screws.The panel have 5 speed dial button and the button quantity and function could be customized Equipped with tamper resistant security screws for added strength and durability.The cable entrance is on the back of the phone to prevent from artificial damage.
Several versions are available, color customized,with keypad, without keypad and on request with additional function buttons.
Telephone parts is produced by self-made , every parts like keypad, cradle, handset could be customized.


1. 304 stainless steel material shell, high mechanical strength and strong impact resistance.
2. Heavy Duty handset with hearing Aid compatible receiver, Noise canceling microphone available.
3. Stainless steel speed dial keys.
4. The sensitivity of the speaker and microphone can be adjusted; optional voice coding methods such as G.729, G.723, G.711, G.722, G.726;Support 2 lines SIP, SIP 2.0 (RFC3261).
5. IP Protocols:IPv4, TCP, UDP, TFTP, RTP, RTCP, DHCP, SIP.
6. Weather proof protection to IP66.
7. Wall mounted, Simple installation.
8 .Multiple housings and colors.
9. Self-made telephone spare part available.
10. CE, FCC, RoHS, ISO9001 compliant.

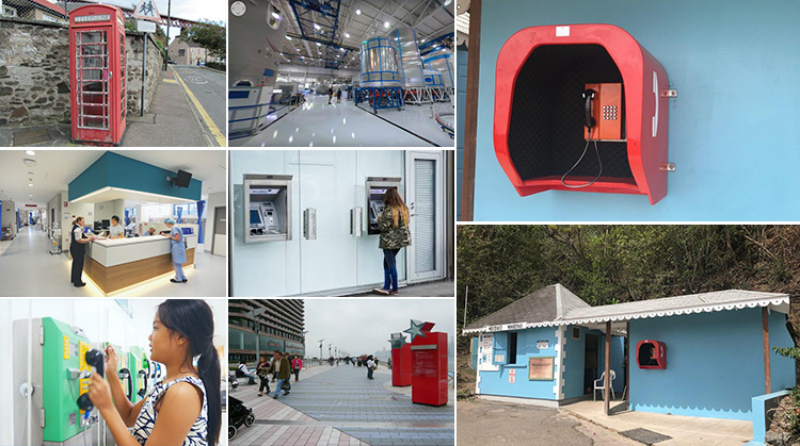

The stainless steel phone can be used in a variety of applications such as in jails, hospitals, oil rigs, platforms, dormitories, airports, control rooms, sally ports, schools, plant, gate and entryways, PREA phone,or waiting rooms etc.


Item Technical data
Communication protocol SIP 2.0 (RFC-3261)
Voltage POE or AC100-240V
Standby Work Current ≤1mA
Frequency Response 250~3000 Hz
Ringer Volume >85dB(A)
Corrosion Grade WF2
Ambient Temperature -40~+70℃
Anti-vandalism Level IK10
Atmospheric Pressure 80~110KPa
Weight 4kg
Relative Humidity ≤95%
Installation Wall-mounted

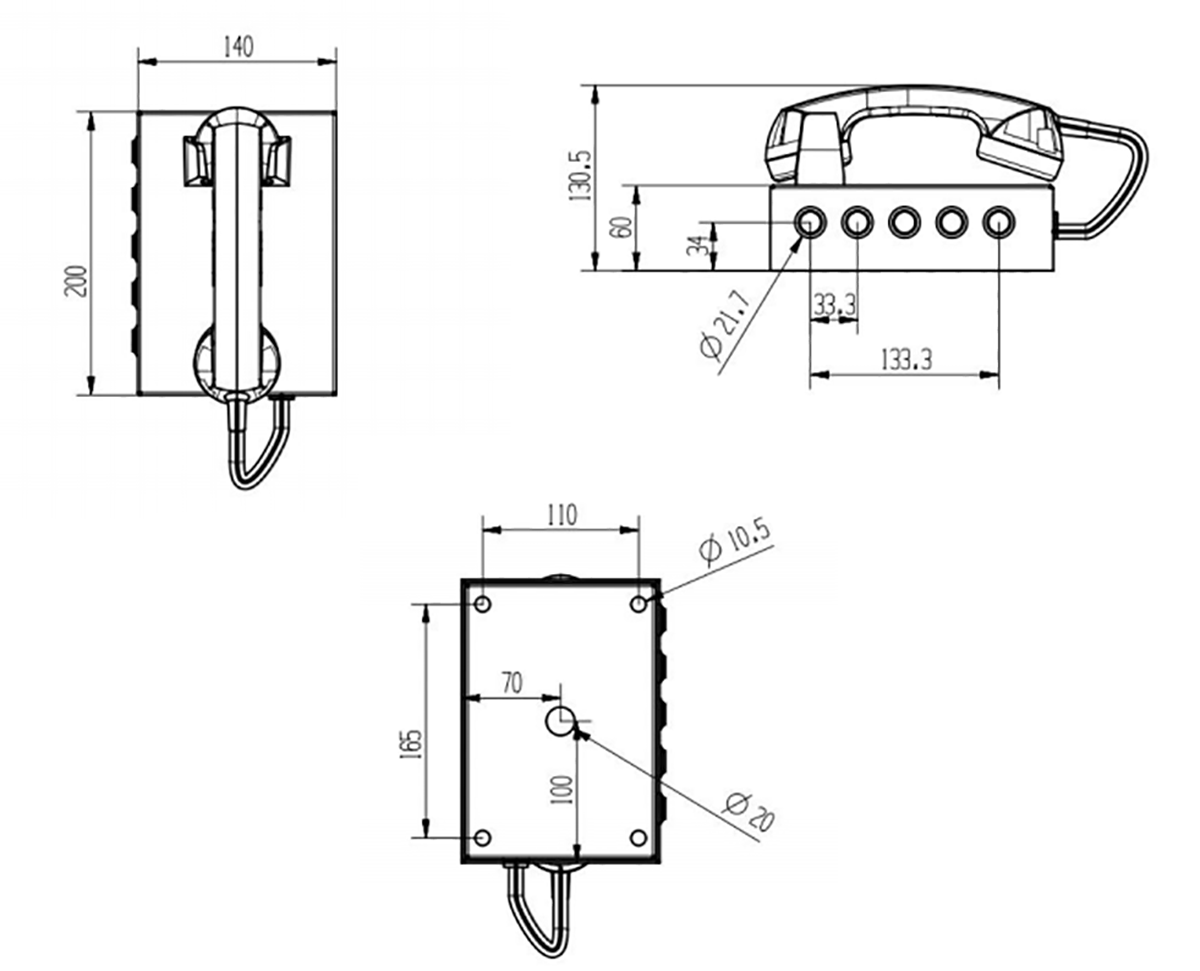

Dimension Drawing


Available Connector

ascasc (2)

If you have any color request, let us know the Pantone color No.

Test machine

ascasc (3)

85% spare parts are produced by our own factory and with matched test machines, we could confirm the function and standard directly.
