Rugged Indoor Handset Payphone Public Telephone for Hospital-JWAT139

Short Description:

Hospitals and health center will request Sturdy and durable telephones for emergency and public communication.

Our telephones use the 100% raw material and provide excellent quality and After-sales service.

In addition to hospitals, such phones are also used in prisons. Prisons have higher requirements and better protection.

In addition to hospitals, such phones are also used in prisons. Prisons have higher requirements and better protection. Users in prisons may be more violent and sometimes tear the handle. Ningbo Joiwo provides the strongest handset material and casing plate to provide a guarantee for the intercom system in prisons.

Your first-choice provider of innovative communication solutions and competitive products  for the Hospital communication.




Product Detail

Product Tags

Product Introduction

JWAT139 Vandal Proof Payphone Public telephone is designed to make a efficient hospital telephone system solution.
The body of the telephone is made of SUS304 stainless steel(cold rolled steel optional), corrosion resistance and oxidation resistance, with high tensile handset which could afford 100kg force strength. Extremely Easy to install and adjust to wall.Easy to fix the housing and backplate through 4 screws.The panel have one volume control button and one speed dial button.Under the button, it have a windows instruction card which could write something to show .Equipped with tamper resistant security screws for added strength and durability.The cable entrance is on the back of the phone to prevent from artificial damage.
Several versions are available, color customized，with keypad, without keypad and on request with additional function buttons.
Telephone parts is produced by self-made , every parts like keypad, cradle, handset could be customized.

Features

1.Standard Analogue phone. Telephone line powered.
2.304 stainless steel material shell, high mechanical strength and strong impact resistance.
3.Vandal resistant handset with armored cord and grommet provides added security for handset cord.
4.Zinc alloy keypad with volume control button.Weather sealed tactile digital keypad.
5.Magnetic hook switch with reed switch.
6.Optional noise-canceling microphone available
7.Wall mounted, Simple installation.
8.Weather proof protection IP65.
9.Connection: RJ11 screw terminal pair cable.
10.Multiple color available.
11.Self-made telephone spare part available.
12.CE, FCC, RoHS, ISO9001 compliant.

Application

ascasc (1)

This vandal proof telephone is popular for many applications area such as in jails,correctional institute, hospitals, health center,platforms, dormitories, airports,parking lots, control rooms, sally ports, campus, plant, guard room,gate and entryways, PREA phone,or waiting rooms etc.

Parameters

Item Technical data
Power Supply Telephone Line Powered
Voltage 24--65 VDC
Standby Work Current ≤1mA
Frequency Response 250～3000 Hz
Ringer Volume >85dB(A)
Corrosion Grade WF1
Ambient Temperature -40～+70℃
Anti-vandalism Level IK10
Atmospheric Pressure 80～110KPa
Relative Humidity ≤95%
Installation Wall-mounted

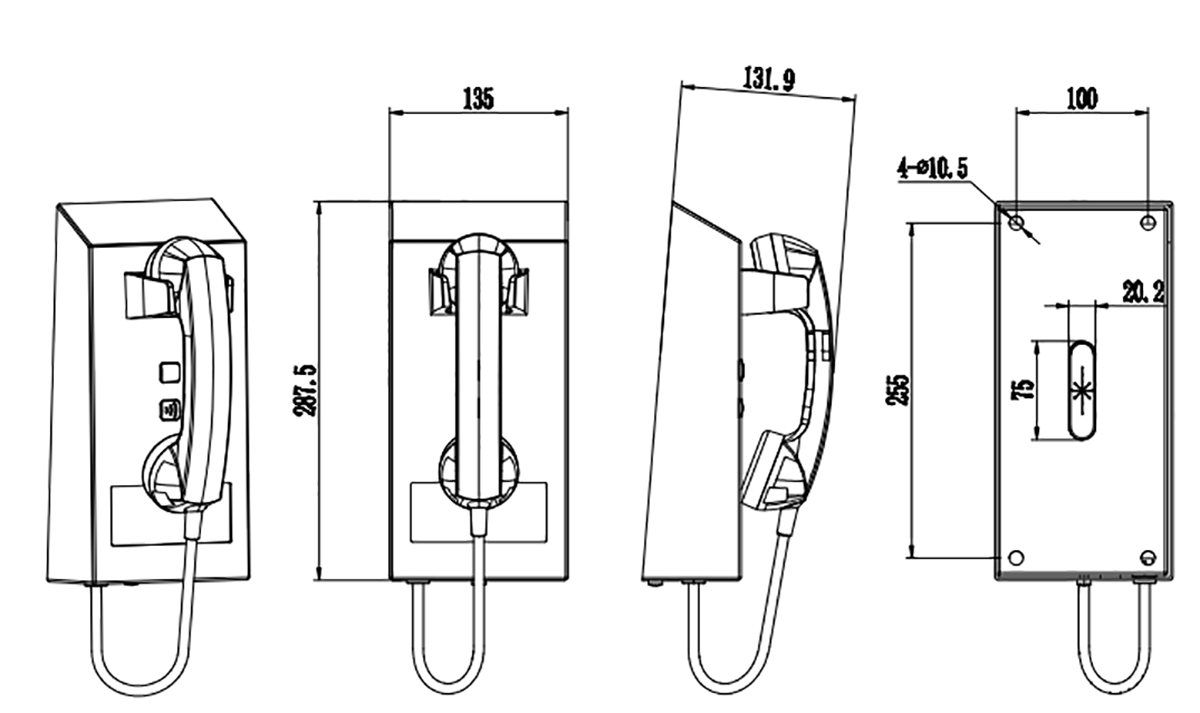

Dimension Drawing

avasv

Available Connector

ascasc (2)

If you have any color request, let us know the Pantone color No.

test machine

ascasc (3)

85% spare parts are produced by our own factory and with matched test machines, we could confirm the function and standard directly.
