Stainless Steel Surface Mount Wall Telephone for Prison-JWAT130

Short Description:

Joiwo’s vandal resistant, stainless steel material,high corrosion resistant, is offer reliable communication for prison visitation areas, dormitories,correctional Institution,control rooms, hospitals,police stations, ATM machines, stadiums, gate and entryways.And the primary function of communications is maintained at all times, resulting in a highly reliable product with a long MTBF.

With a professional R&D team in industrial public telecommunication filed since 2005 Year, Each vandal proof Telephone have been passed the FCC,CE international certificates.

Your first-choice provider of innovative communication solutions and competitive products  for the Prison communication.




Product Detail

Product Tags

Product Introduction

JWAT130 Vandal resistant handset  telephone is designed to make a reliable prison telephone system communication.
The body of the telephone is made of SUS304 stainless steel(cold rolled steel optional), corrosion resistance and oxidation resistance, with high tensile handset which could afford 100kg force strength. Extremely Easy to install and adjust to wall.Easy to fix the housing and backplate through 4 screws.And have a security screw to fix the housing to make sure not to open.The cable entrance is on the back of the phone to prevent from artificial damage.
Several versions are available, color customized,with keypad, without keypad and on request with additional function buttons.
Telephone parts is produced by self-made ,every parts like keypad, cradle, handset could be customized.


1.Standard Analogue phone. Phone line powered.
2.304 stainless steel material shell, high mechanical strength and strong impact resistance.
3.Vandal resistant handset with Internal steel lanyard and grommet provides added security for handset cord.
4.Zinc alloy keypad.
5.Magnetic hook switch with reed switch.
6.Optional noise-canceling microphone available
7.Wall mounted, Simple installation.
8.Weather proof protection IP55-IP65 optional.
9.Connection: RJ11 screw terminal pair cable.
10.Multiple color available.
11.Self-made telephone spare part available.
12. CE, FCC, RoHS, ISO9001 compliant


ascasc (1)

The stainless steel phone can be used in a variety of applications such as in jails, hospitals, oil rigs, platforms, dormitories, airports, control rooms, sally ports, schools, plant, gate and entryways, PREA phone,or waiting rooms etc.



Technical data

Power Supply

Telephone Line Powered


24--65 VDC

Standby Work Current


Frequency Response

250~3000 Hz

Ringer Volume


Corrosion Grade


Ambient Temperature


Anti-vandalism Level


Atmospheric Pressure


Relative Humidity

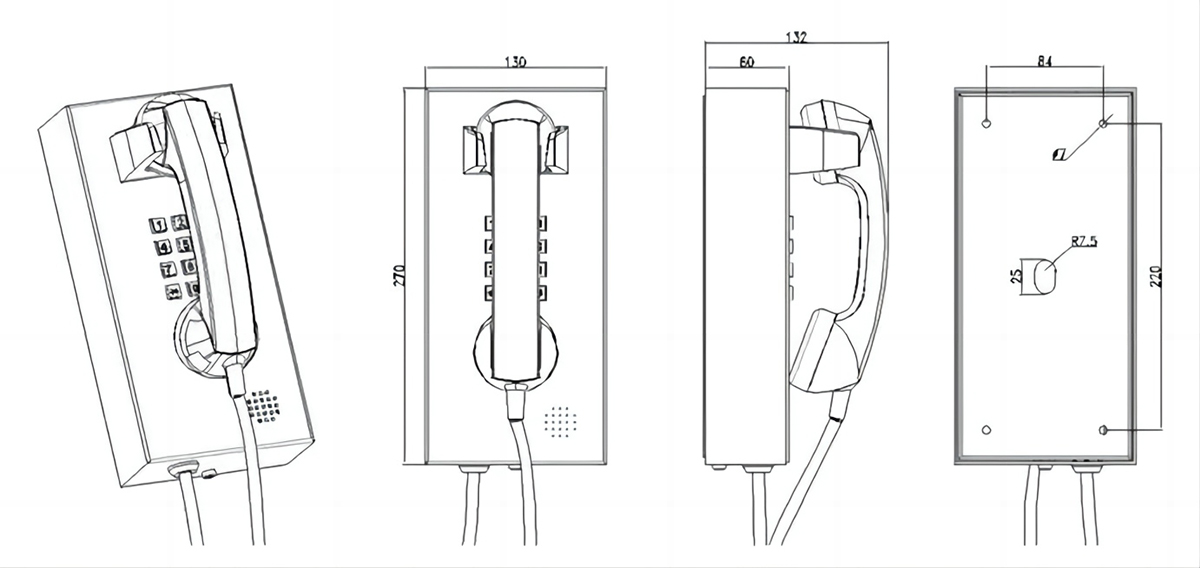

Dimension Drawing


Available Connector

ascasc (2)

If you have any color request, let us know the Pantone color No.

test machine

ascasc (3)

85% spare parts are produced by our own factory and with matched test machines, we could confirm the function and standard directly.

Really should any of these items be of interest to you, please let us know. We will be pleased to give you a quotation upon receipt of one's detailed specifications. We've our personal specialist R&D enginners to meet any of the requriements, We look forward to receiving your enquires soon and hope to have the chance to work together with you inside the future. Welcome to take a look at our organization.
