Auto Dial patient correctional Institute Industrial Visitation jail Telephones for airport-JWAT150

Short Description:

The function of JWAT150 anti-violence phone is that when the handset is off-hook, the phone will automatically call a preset number.

We are the professional manufacturer of emergency telephone, vandal proof telephone,weatherproof telephone, public telephone since  2005 Year .

Your first-choice provider of innovative communication solutions and competitive products  for the Jail communication.

Product Detail

Product Tags

Product Introduction

JWAT150 Hotline Auto Dial No-dial telephone is designed to dial a preset number when the handset is lifted.
The material is SUS304 Stainless steel or Cold rolled steel optional.Analog type or Voip type could be chosen.Equipped with tamper resistant security screws for added strength and durability.
Color customized,Main board function customized,handset style customized, cradle customized,keypad customized,etc.
Telephone parts is produced by self-made ,every parts like keypad, cradle, handset could be customized.


1.Standard Analogue phone. Phone line powered.
2.304 stainless steel material shell, high mechanical strength and strong impact resistance.
3.Vandal resistant handset with Internal steel lanyard and grommet provides added security for handset cord.
4.Automatic dialing.
5.Magnetic hook switch with reed switch.
6.Optional noise-canceling microphone available
7.Wall mounted, Simple installation.
8.Connection: RJ11 screw terminal pair cable.
9.Multiple color available.
10.Self-made telephone spare part available.
11. CE, FCC, RoHS, ISO9001 compliant


ascasc (1)

The stainless steel telephone is hot sale in jails, hospitals, oil rigs, platforms, dormitories, airports, control rooms, sally ports, schools, plant, gate and entryways, PREA phone,or waiting rooms etc.


Item Technical data
Power Supply Telephone Line Powered
Voltage 24--65 VDC
Standby Work Current ≤1mA
Frequency Response 250~3000 Hz
Ringer Volume >85dB(A)
Corrosion Grade WF1
Ambient Temperature -40~+70℃
Anti-vandalism Level IK10
Atmospheric Pressure 80~110KPa
Relative Humidity ≤95%
Installation Wall-mounted

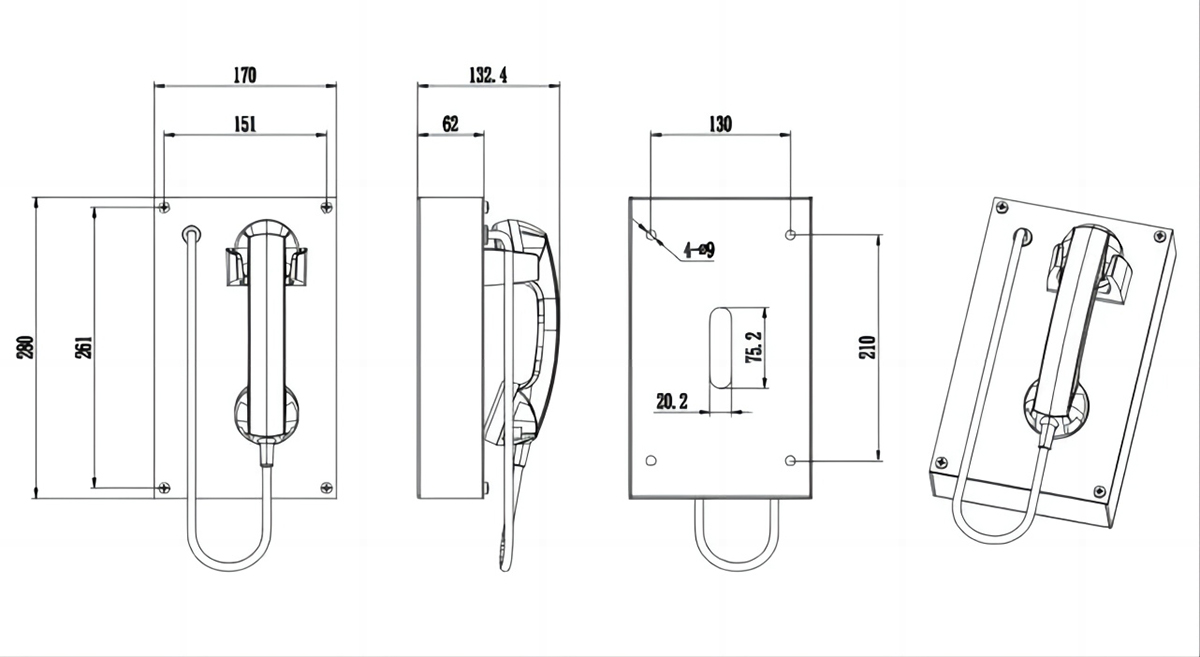

Dimension Drawing


Available Connector

ascasc (2)

If you have any color request, let us know the Pantone color No.

Test machine

ascasc (3)

85% spare parts are produced by our own factory and with matched test machines, we could confirm the function and standard directly.
