Rugged Analog SIP Emergency Intercom Call box for railway metro platforms-JWAT412

Short Description:

JWAT412 Rugged Call box consists of SUS 304 stainless steel and equipped with a waterproof metal button for help dialing. Ideal for parking lots, prisons, railway/metro platforms, hospitals, police stations, ATM machines, stadiums, outside building etc. Analog Type /Voip Type /GSM Type optional.

Further, can add a camera to make a Video call depends on the user’s demand.

The perfect intercom for every situation – whether in security, business, emergency or any other special area. From providing simple applications requiring a clear, easy connection with a single analogue or IP phone, to integrating into security and signaling systems and program-controlled switches or IP PBXs, comprehensive communication arrangements in servers.

With a professional R&D team in industrial telecommunication solution filed since 2005 Year, Each Intercom Telephone have been passed the FCC,CE international certificates. Having the highest quality, certification and ensures compatibility with industry-standard-based IP network solutions .

Your first-choice provider of innovative communication solutions and competitive products  for the industrial communication.



Product Detail

Product Tags

Product Introduction

This JWAT412 Emergency Intercom Call box provides hands-free loudspeaking communication through the existing Analog Telephone line or VOIP network and is suitable for a sterile environment.
Housed in cold rolled steel box or SUS304 stainless steel material, Vandal resistant,Indicator light SOS button optional. Top have a proof to avoid water.Single or Dual button auto dial options with  remote programming.
Manufactured to a high standard, these telephones offer increased resistance to vandalism, and ensure that the primary function of communications is maintained at all times.
Several versions are available, color customized,with keypad, without keypad and on request with additional function buttons.
Telephone parts is produced by self-made , every parts like keypad could be customized. keypad could be customized.


1.Standard Analogue phone. SIP version available.
2.Robust housing, Robust housing, constructed of 304 stainless steel material.
3.Vandal resistant stainless buttons. LED indicator for button optional.
4.All weather protection IP54 to IP65.
5. One button for emergency call.
6. With external power supply, sound level could reach more than 85db.
7.Hands-free Operation.
8.Flush mounted.
9.Connection: RJ11 screw terminal pair cable.
10.Self-made telephone spare part available.
11.CE, FCC, RoHS, ISO9001 compliant.

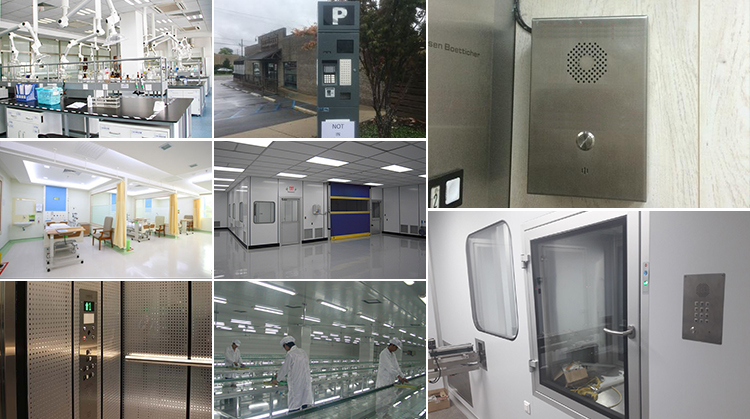

The Intercom usually used in Food Factory, Clean room, Laboratory, Hospital Isolation areas, Sterile areas, and other restricted environments. Also available for Elevators/Lifts, Parking lots, Prisons, Railway/Metro platforms, Hospitals, Police stations, ATM machines, Stadiums, Campus, Shopping malls, Doors, Hotels, outside building etc.


Item Technical data
Power Supply Telephone Line Powered
Voltage DC48V/DC5V 1A
Standby Work Current ≤1mA
Frequency Response 250~3000 Hz
Ringer Volume >85dB(A)
Corrosion Grade WF2
Ambient Temperature -40~+70℃
Anti-vandalism Level Ik10
Atmospheric Pressure 80~110KPa
Weight 1.88kg
Relative Humidity ≤95%
Installation Wall mounted

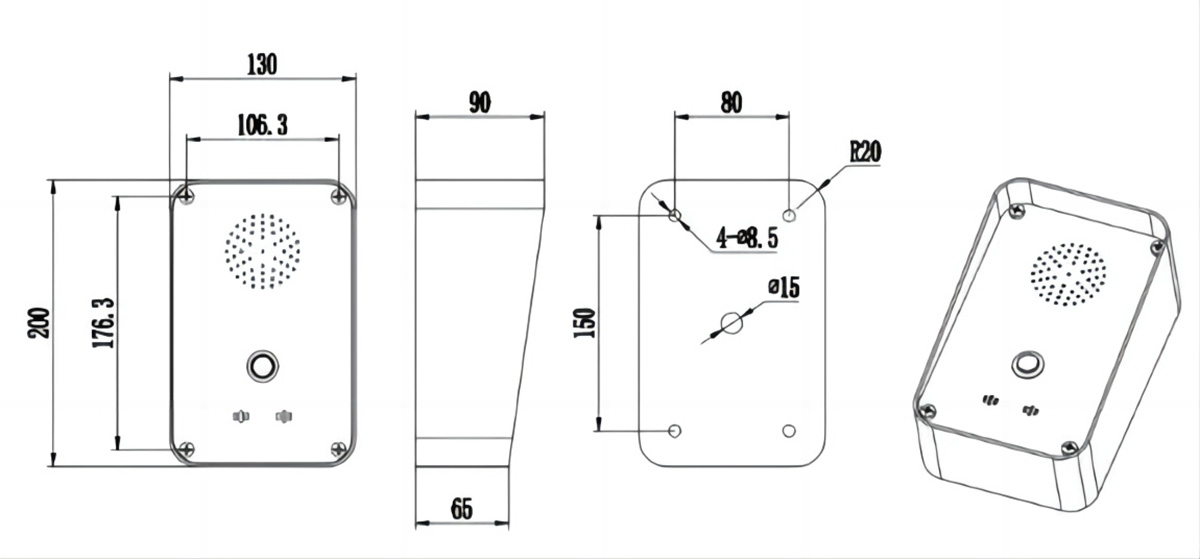

Dimension Drawing


Available Connector

ascasc (2)

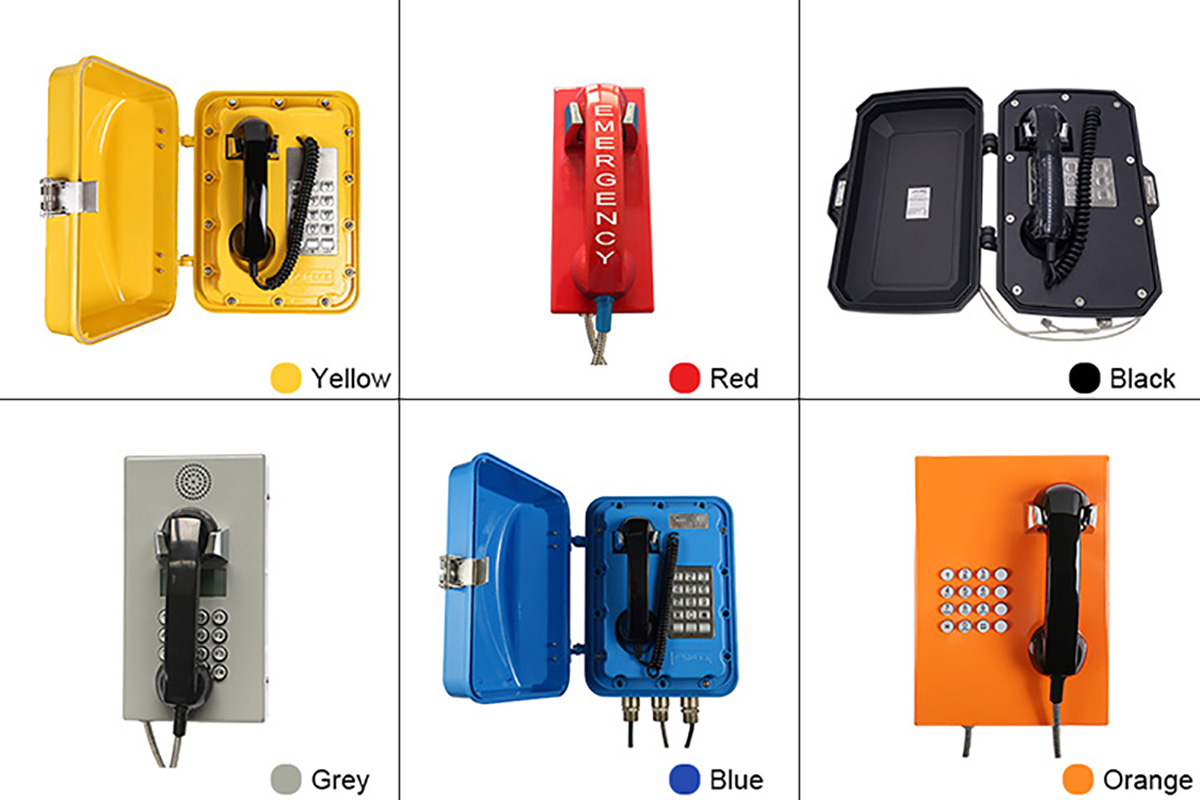

If you have any color request, let us know the Pantone color No.

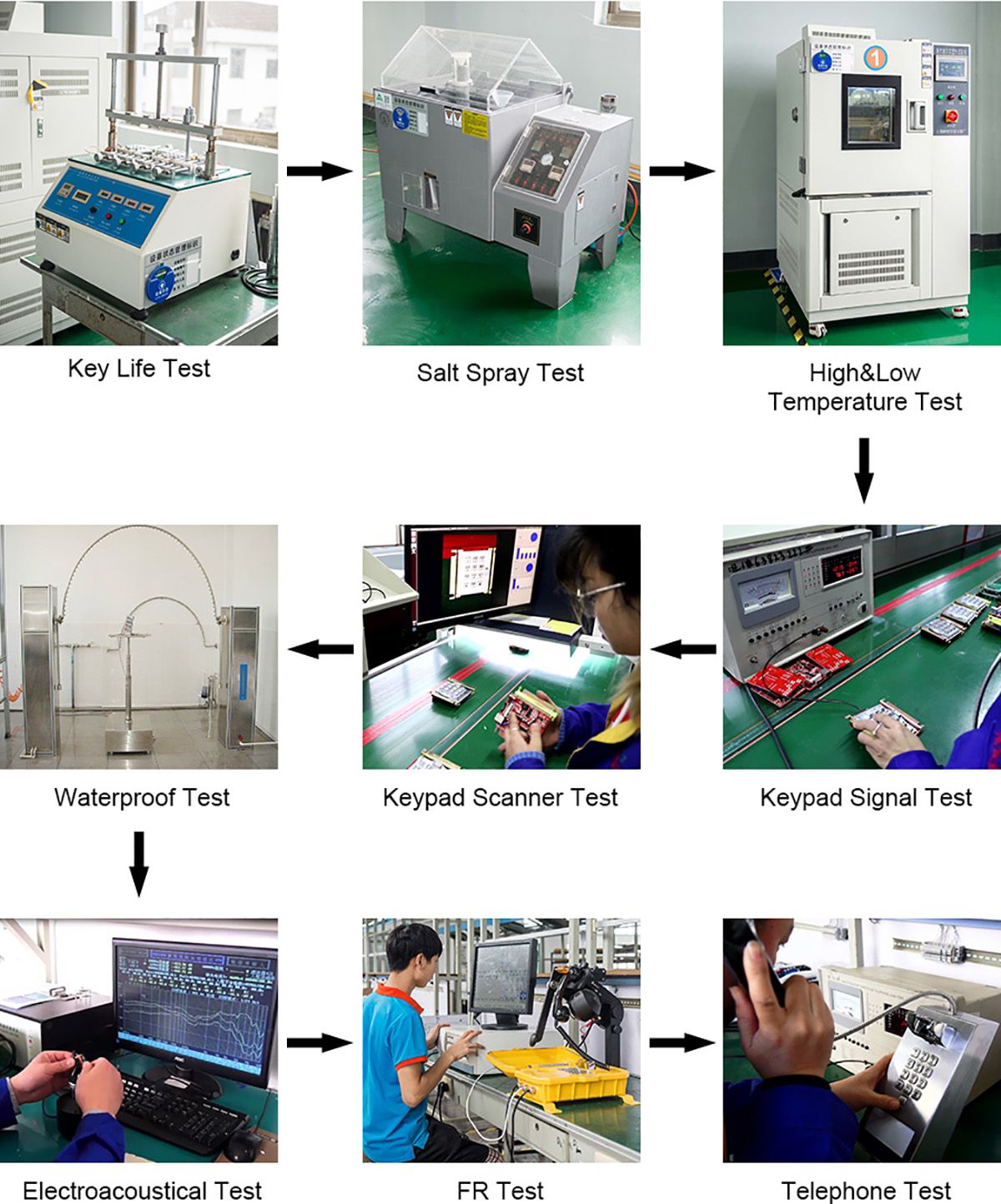

Test machine

ascasc (3)

85% spare parts are produced by our own factory and with matched test machines, we could confirm the function and standard directly.

Each machine is carefully made, it will make you satisfied. Our products in the production process have got strictly monitored, because it is only to provide you the best quality, we will feel confident. High production costs but low prices for our long-term cooperation. You can have a variety choices and the value of all types are same reliable. If you have any question, do not hesitate to ask us.
