Industrial Analog Voip Public Handsfree Speakerphone Intercom Safety SOS Emergency Telephone-JWAT411

Short Description:

JWAT411 Rugged housing consists of SUS 304 stainless steel and equipped with a waterproof metal button for help dialing.Wiring in the back of the telephone, so that the phone looks beautiful and exquisite. Analog Type /Voip Type /GSM Type optional.

Further, can install the camera to make a Video call according to the user’s demand, to enhances the security.

Intercom is a flush or surface mounted unit. When installed with suitable interface sealants, a very high IP water resistant rating can be achieved.

With a professional R&D team in industrial telecommunication solution filed since 2005 Year, Each Intercom Telephone have been passed the FCC,CE international certificates.

Your first-choice provider of innovative communication solutions and competitive products  for the industrial communication.


Product Detail

Product Tags

Product Introduction

This JWAT411 Safety Speakerphone Intercom provides hands-free loudspeaking communication through the existing Analog Telephone line or VOIP network and is suitable for a sterile environment.
The body of the telephone is made of SUS304 stainless steel material ,Vandal resistant,Indicator light SOS button optional.Single or Dual button auto dial options with  remote programming.
Several versions are available, color customized,with keypad, without keypad and on request with additional function buttons.
Telephone parts is produced by self-made , every parts like keypad could be customized.


1.Standard Analogue phone. SIP version available.
2.Robust housing, Robust housing, constructed of 304 stainless steel material.
3.Vandal resistant stainless buttons. LED indicator for button optional.
4.All weather protection IP54 to IP65.
5. One button for emergency call.
6. With external power supply, sound level could reach more than 90db.
7.Hands-free Operation.
8.Flush mounted.
9.Connection: RJ11 screw terminal pair cable.
10.Self-made telephone spare part available.
11.CE, FCC, RoHS, ISO9001 compliant.



The Intercom usually used in Food Factory, Clean room, Laboratory, Hospital Isolation areas, Sterile areas, and other restricted environments. Also available for Elevators/Lifts, Parking lots, Prisons, Railway/Metro platforms, Hospitals, Police stations, ATM machines, Stadiums, Campus, Shopping malls, Doors, Hotels, outside building etc.


Item Technical data
Power Supply Telephone Line Powered
Voltage DC48V
Standby Work Current ≤1mA
Frequency Response 250~3000 Hz
Ringer Volume >90dB(A)
Corrosion Grade WF1
Ambient Temperature -40~+70℃
Anti-vandalism Level Ik10
Atmospheric Pressure 80~110KPa
Weight 2kg
Relative Humidity ≤95%
Installation Embedded

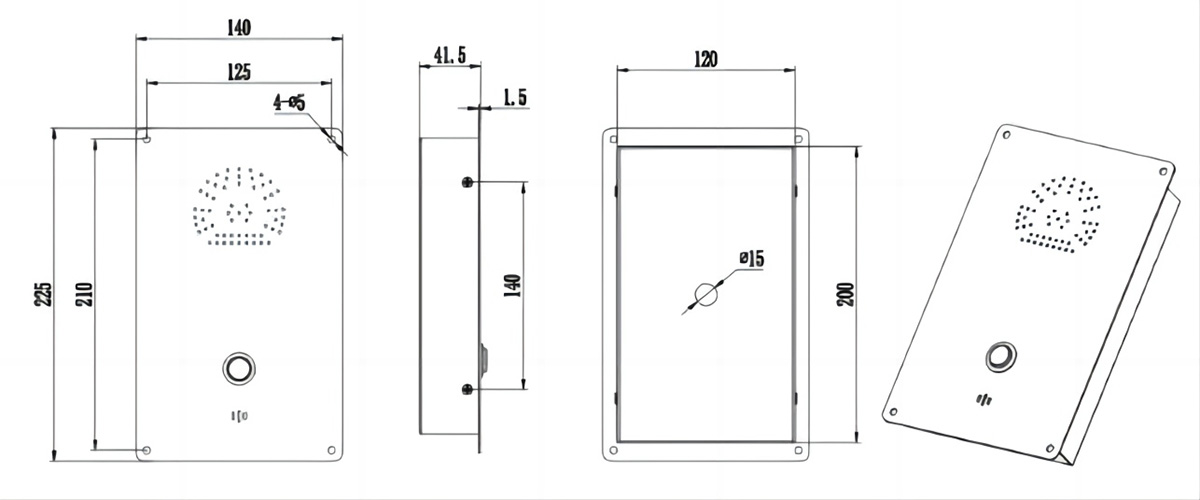

Dimension Drawing


Available Connector

ascasc (2)

If you have any color request, let us know the Pantone color No.

Test machine

ascasc (3)

85% spare parts are produced by our own factory and with matched test machines, we could confirm the function and standard directly.
