Waterproof aluminum alloy Emergency tunnel Telephone for railway subway project-JWAT208

Short Description:

JWAT208 phone is an emergency phone that can realize automatic hotline dialing. First, set the hotline number in advance through the keyboard, so that the pre-stored number will be dialed when the handle is picked up.

With a professional R&D team in industrial telecommunication filed since 2005 Year, Each weatherproof telephone have been waterproof tested and obtain international certificates. We have our own factories with self-made telephone parts like keypad,cradle,handset,etc，we can provide competitive, quality assurance, after-sale protection of weatherproof telephone for you.




Product Detail

Product Tags

Product Introduction

JWAT208 weatherproof auto dial telephone is made of Aluminum alloy die-casting material,spray coating color customized. The degree of protection is IP67, even with the door open. The door participates in keeping the inside parts like handset and keypad clean.
Several versions like analog or Voip or 4G type are available, with stainless steel armored cord or spiral, with or without door, with keypad, without keypad and on request with additional function buttons.

Features

1.Aluminum alloy die-casting shell, high mechanical strength and strong impact resistance.
2.Standard Analogue/Voip phone.
3.Heavy Duty handset with hearing Aid compatible receiver, Noise canceling microphone.
4.Weather proof Protection class to IP67.
5. Auto dial telephone when handset picked up.
6.Wall mounted, Simple installation.
7.Connection: RJ11 screw terminal pair cable.
8.Sound level of ringing:over 80dB(A).
9.The available colors as an option.
10. Self-made telephone spare part available.
11. CE, FCC, RoHS, ISO9001 compliant.

Application

avasv

This Weatherproof Telephone Is Very Popular For Tunnels, Mining, Marine, Underground, Metro Stations, Railway Platform, Highway Side, Parking Lots, Steel Plants, Chemical Plants, Power Plants And Related Heavy Duty Industrial Application, Etc.

Parameters

Item Technical data
Power Supply Telephone Line Powered-- DC48V
Standby Work Current ≤1mA
Frequency Response 250～3000 Hz
Ringer Volume ≥80dB(A)
Corrosion Grade WF1
Ambient Temperature -40～+60℃
Atmospheric Pressure 80～110KPa
Relative Humidity ≤95%
Lead Hole 1-PG11
Installation Wall-mounted

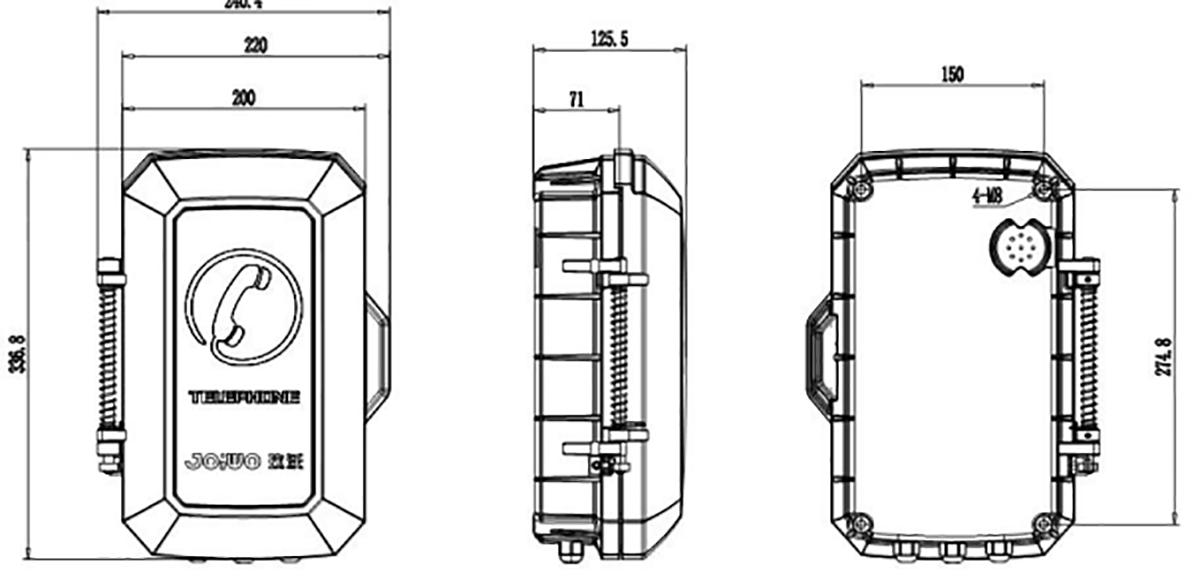

Dimension Drawing

avav

Available Connector

ascasc (2)

If you have any color request, let us know the Pantone color No.

Test machine

ascasc (3)

85% spare parts are produced by our own factory and with matched test machines, we could confirm the function and standard directly.
