Industrial Yellow Corrosion Protection Heavy Duty Weatherproof Telephone For Chemical Plant-JWAT942

Short Description:

The Joiwo Telephone is an advanced protected telephone suitable for harsh and demanding environments. Ideal for Chemical Plants,Cements, tunnels, sports stadiums, highway,railway ,marine,under ground stations and car parks,etc.

The Telephone is equipped with an aluminium alloy body and watertight glands which help protect it against adverse weather conditions and potential vandalism.

With a professional R&D team in industrial telecommunication solution filed since 2005 Year, Each Intercom Telephone have been passed the FCC,CE international certificates.

Your first-choice provider of innovative communication solutions and competitive products  for the industrial communication.




Product Detail

Product Tags

Product Introduction

This JWAT410 Heavy Duty Weatherproof Telephone provides hands-free loud-speaking communication through the existing Analog Telephone line or VOIP network and is suitable for a sterile environment.
The body of the telephone is made of Aluminum alloy material ,Anti-Corrosion,Vandal resistant, With Two button which could make a programmed call.
Equipped with Aluminum alloy material horn optional, this Corrosion protection telephone can broadcast remotely for notification. The horn works after 1-3 rings (adjustable), shut when press the button or call finished. The lamp will flashing when there is an incoming call.
Several versions are available, color customized，with keypad, without keypad and on request with additional function buttons.
Telephone parts is produced by self-made , every parts like keypad could be customized.

Features

1.Standard Analogue phone. SIP version available.
2.Robust housing, Aluminum alloy die-casting body.
3. Rolled steel face-plate with epoxy powder coated providing complete protection against dust and moisture.
4.Vandal resistant stainless buttons.
5.All weather protection IP66-67.
6. Two button for emergency call.
7.Horn & Lamp on the top is available.
8.Hands-free Operation.
9.Wall mounted.
10.Self-made telephone spare part available.
11.CE, FCC, RoHS, ISO9001 compliant

Application

avav (1)

The Intercom usually used in Food Factory, Clean room, Laboratory, Hospital Isolation areas, Sterile areas, and other restricted environments. Also available for Elevators/Lifts, Parking lots, Prisons, Railway/Metro platforms, Hospitals, Police stations, ATM machines, Stadiums, Campus, Shopping malls, Doors, Hotels, outside building etc.

Parameters

Item Technical data
Power Supply Telephone Line Powered
Voltage DC48V
Standby Work Current ≤1mA
Frequency Response 250～3000 Hz
Ringer Volume >85dB(A)
Corrosion Grade WF1
Ambient Temperature -40～+70℃
Anti-vandalism Level Ik10
Atmospheric Pressure 80～110KPa
Weight 6kg
Lead hole 1-PG11
Relative Humidity ≤95%
Installation Wall mounted

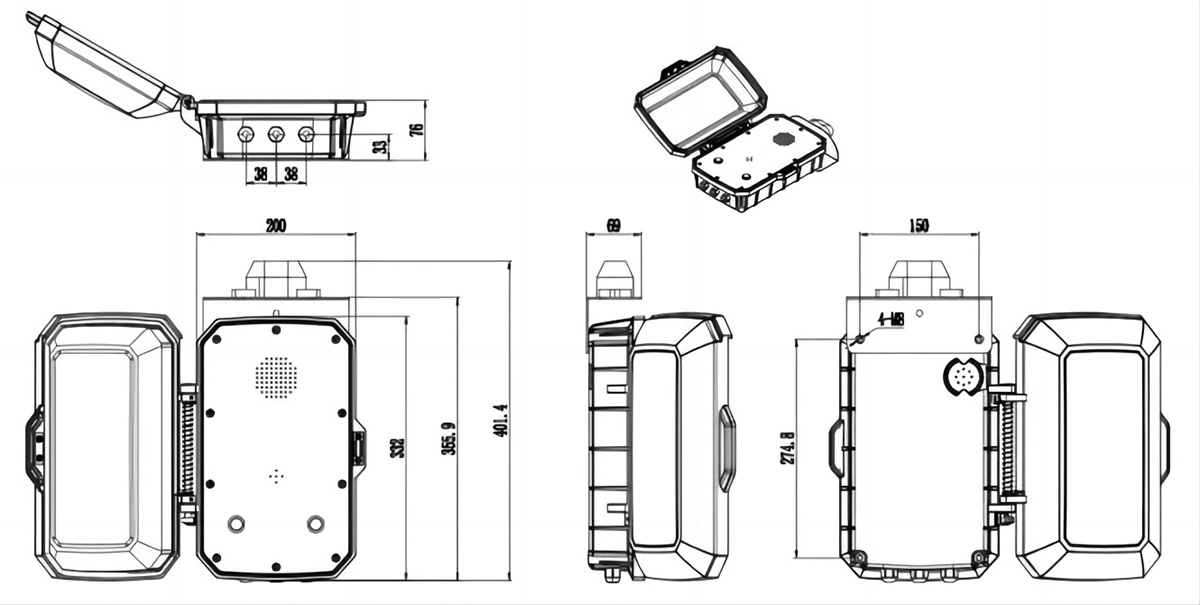

Dimension Drawing

avav

Available Connector

ascasc (2)

If you have any color request, let us know the Pantone color No.

Test machine

ascasc (3)

85% spare parts are produced by our own factory and with matched test machines, we could confirm the function and standard directly.
