Emergency Telephone with LCD Screen For Construction Communications-JWAT945

Short Description:

This is an emergency  telephone that specifically addresses the harsh environment of outdoor industry.The telephone is rugged and durable and the special sealing design can ensure complete waterproof grade up to IP66 weatherproof , dustproof and moisture-resistant, which makes it can be used in most tunnel,metro and high-speed rail project  for emergency communication.

The weatherproof telephone use rolled steel as the raw material for the weatherproof enclosure, and the exterior is strong and has an water proof effect. It is available in both VoIP and analog versions. OEM and customization is also available.




Product Detail

Product Tags

Product Introduction

Public Telephone is designed for voice communication in harsh & hostile environment where reliability efficiency and safety are of prime importance.Like in tunnel, marine, railway ,highway,underground,power plant,dock,etc.
The body of the telephone it is made of Cold rolled steel, a very strong material, can be powder coated with diffirent colors,used with generous thicknesses. The degree of protection is IP54,
Several versions are available, with stainless steel armored cord or spiral, with keypad, without keypad and on request with additional function buttons.

Features

1.Robust housing, constructed of cold rolled steel with powder coated.
2.Standard Analogue phone.
3.Vandal resistant handset with armored cord and grommet provides added security for handset cord.
4.Weather proof Protection class to IP66.
5.Waterproof zinc alloy Keypad.
6.Wall mounted, Simple installation.
7.Connection: RJ11 screw terminal pair cable.
8.Sound level of ringing:over 85dB(A).
9.The available colors as an option.
10.Self-made telephone spare part like keypad,cradle, handset,etc is available.
11.CE, FCC, RoHS, ISO9001 compliant.

Application

avav (3)

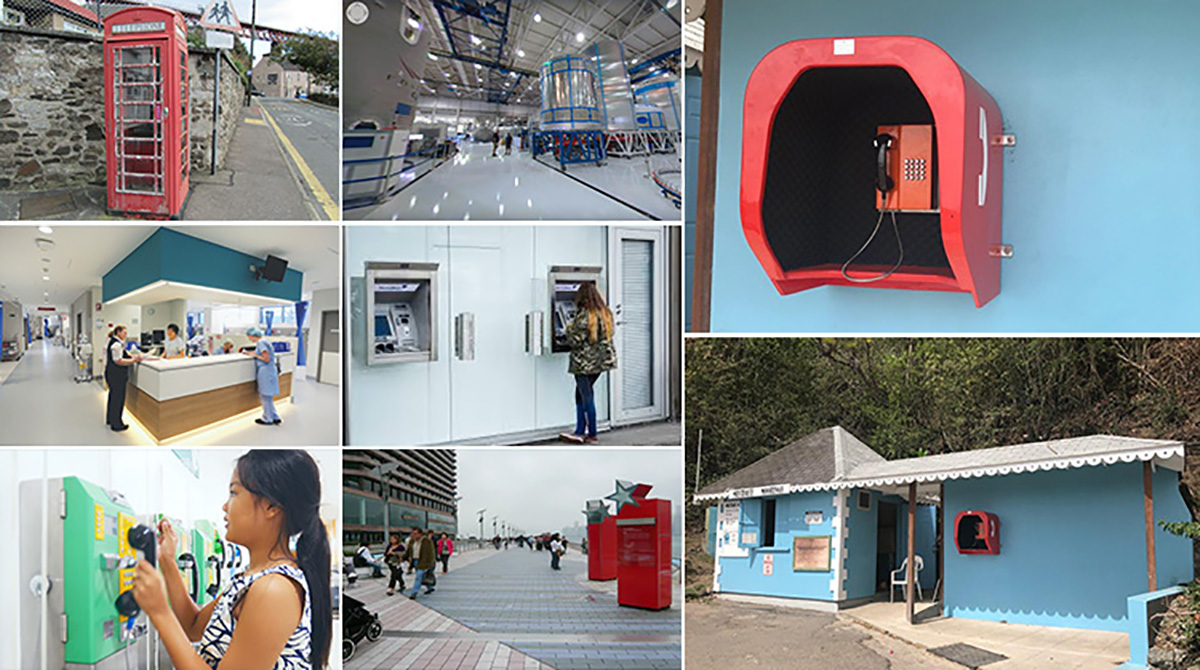

This Public Telephone is Ideal for Railway applications, Marine applications, Tunnels. Underground Mining, Firefighter, Industrial, Prisons, Jail, Parking lots, Hospitals, Guard Stations, Police stations, Bank halls, ATM machines, Stadiums, inside and outside building etc.

Parameters

Item Technical data
Power Supply Telephone Line Powered
Voltage 24--65 VDC
Standby Work Current ≤0.2A
Frequency Response 250~3000 Hz
Ringer Volume >85dB(A)
Corrosion Grade WF2
Ambient Temperature -40~+60℃
Atmospheric Pressure 80~110KPa
Relative Humidity ≤95%
Lead Hole 3-PG11
Installation Wall-mounted

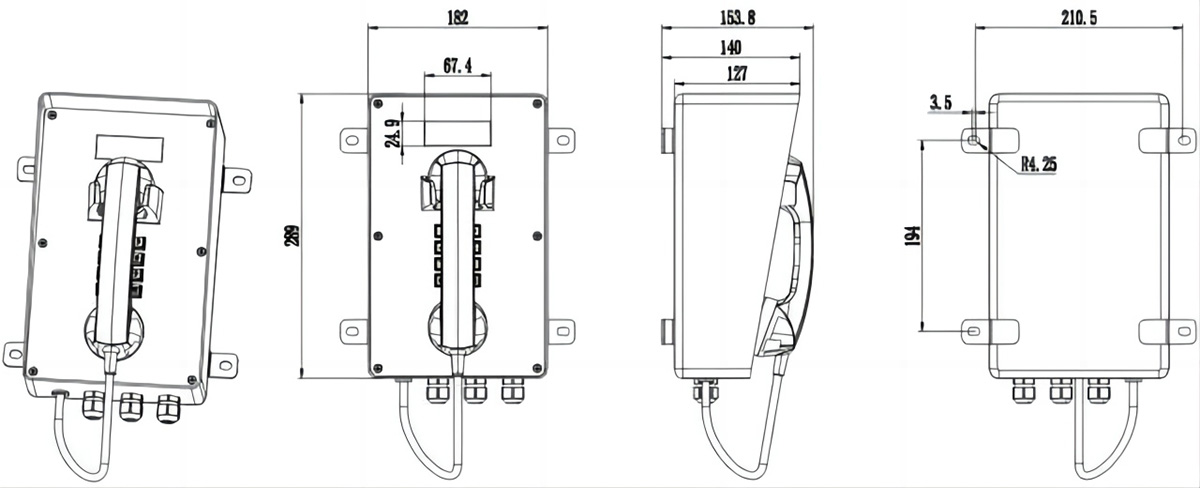

Dimension Drawing

acvasv

Available Connector

ascasc (2)

If you have any color request, let us know the Pantone color No.

Test machine

ascasc (3)

85% spare parts are produced by our own factory and with matched test machines, we could confirm the function and standard directly.
