Optical touch 15 keys metal keypad for outdoor safety B809

Short Description:

It’s 15 keys vandal proof IP65 stainless steel keypad, matrix design with carbon-on-gold key switch technology. Special round buttons design, LED color available for customer’s choice. Specially designed keyboards meet the high demands with ragrd to design, functionality, longevity and high protection level. Mainy used for door safety and other public facilities.

With a professional R&D team in industrial telecommunication filed for 17 years, we could customize handsets, keypads, housings and telephones for different applications.

Product Detail

Product Tags

Product Introduction

The 15 key S.series keypad is specially  designed for public environment  applications, such as vending machines,  ticket machines, payment terminals,  telephones, access control systems and  industrial machinery.


1. Material: 304# brushed stainless steel.
2. Integrated design in keys with front panel
3. Infrared Induction keys with LED indicated
4. Different LED color is available.
5. The keys layout is customized
6. Contact resistance: ≤150Ω  Working principle: infrared induction  Matched interface: UART and IIC
7.Buttons layout could be customized as clients’ request.
8.With the exception of the telephone, the keyboard can also be designed for other purposes.
9. Interface is optional.



Normally used in door safety.



Technical data

Input Voltage


Waterproof Grade


Actuation Force

250g/2.45N(Pressure point)

Rubber Life

More than 1 million cycles

Key Travel Distance


Working Temperature


Storage Temperature


Relative Humidity


Atmospheric Pressure


  LED color

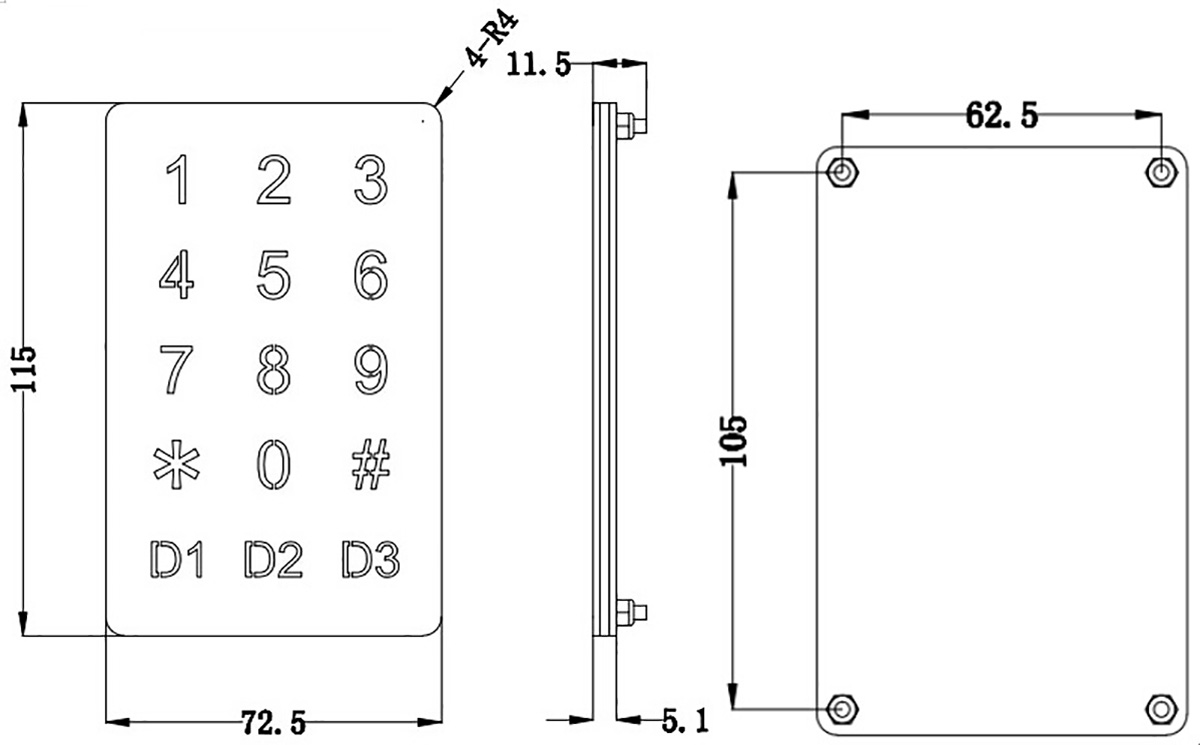

Dimension Drawing


Available Connector

vav (1)

Any appointed connector could be made as customer's request. Let us know the exact item No. in advance.

Available color


If you have any color request, let us know.

Test machine


85% spare parts are produced by our own factory and with matched test machines, we could confirm the function and standard directly.
