Matrix design 3×4 keypad stainless steel B768

Short Description:

It’s a 12 keys vandal proof IP65 stainless steel keypad, matrix design with carbon-on-gold key switch technology. Specially designed keyboards meet the high demands with ragrd to design, functionality, longevity and high protection level.

With a professional R&D team in industrial telecommunication filed for 17 years, we could customize handsets, keypads, housings and telephones for different applications.

Product Detail

Product Tags

Product Introduction

It’s specially designed for public environment  applications, such as vending machines,  ticket machines, payment terminals,  telephones, access control systems and  industrial machinery. Keys and front panel are built from SUS304#  stainless steel with high resistance to impact  and vandalism and is also sealed to IP65.


1.Keypad made of stainless steel.Vandal resistance.
2.Font button surface and pattern can be customized according to customer requirements.
3.3X4 layout, Matrix design. 10 number buttons and 14 function buttons.
4.Buttons layout could be customized as clients’ request.
5.With the exception of the telephone, the keyboard can also be designed for other purposes


va (2)

The keypad mainly used in access control and kiosk.



Technical data

Input Voltage


Waterproof Grade


Actuation Force

250g/2.45N(Pressure point)

Rubber Life

More than 500 thousand cycles

Key Travel Distance


Working Temperature


Storage Temperature


Relative Humidity


Atmospheric Pressure

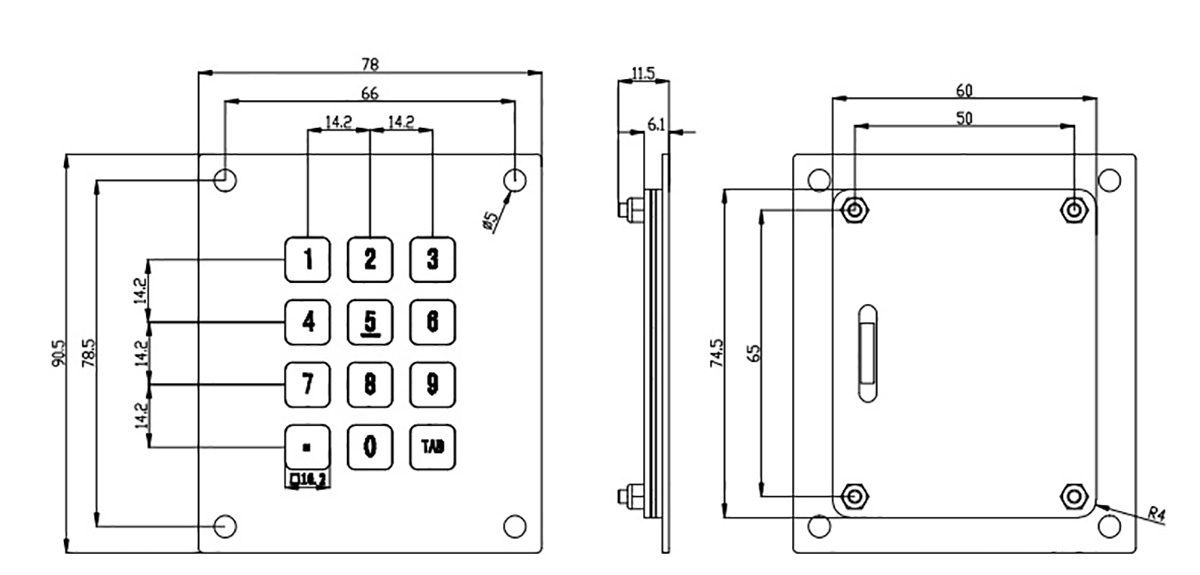

Dimension Drawing


Available Connector

vav (1)

Any appointed connector could be made as customer's request. Let us know the exact item No. in advance.

Test machine


85% spare parts are produced by our own factory and with matched test machines, we could confirm the function and standard directly.
