Customized metal keypad for security system B723
Keypad made of stainless steel.Vandal resistance. The button surface and pattern can be customized according to customer requirements. It is mainly for access control system, industrial telephone, vending machine, security system and some other public facilities.

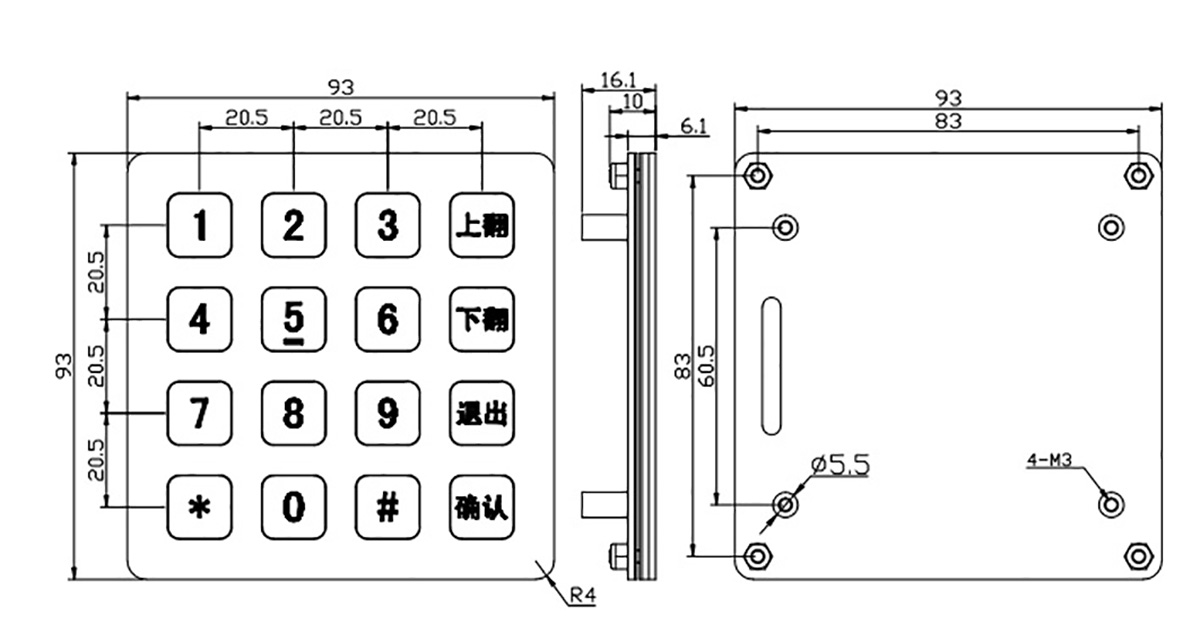

1.Stainless steel 4x4 layout keypad.
2.Waterproof, vandalproof, explosionproof
3.The keypad interface can be customized.
4.The image and letter on the keys can be customized.
The keypad usually used in ATM machine.
|
Item |
Technical data |
|
Input Voltage |
3.3V/5V |
|
Waterproof Grade |
IP65 |
|
Actuation Force |
250g/2.45N(Pressure point) |
|
Rubber Life |
More than 500 thousand cycles |
|
Key Travel Distance |
0.45mm |
|
Working Temperature |
-25℃～+65℃ |
|
Storage Temperature |
-40℃～+85℃ |
|
Relative Humidity |
30%-95% |
|
Atmospheric Pressure |
60Kpa-106Kpa |
Any appointed connector could be made as customer's request. Let us know the exact item No. in advance.
85% spare parts are produced by our own factory and with matched test machines, we could confirm the function and standard directly.
