LED color stainless steel keypad for door safety B884

Short Description:

It’s 3×4 12 keys vandal proof IP65 stainless steel keypad, matrix design with carbon-on-gold key switch technology. Special round buttons design, LED color available for customer’s choice. Specially designed keyboards meet the high demands with ragrd to design, functionality, longevity and high protection level. Mainy used for door safety and other public facilities.

With a professional R&D team in industrial telecommunication filed for 17 years, we could customize handsets, keypads, housings and telephones for different applications.


Product Detail

Product Tags

Product Introduction

It is mainly for access control system, industrial telephone, vending machine, security system, specially designed for public environment  applications, such as vending machines,  ticket machines, payment terminals, industrial machinery. Keys and front panel are built from SUS304#  stainless steel with high resistance to impact  and vandalism and is also sealed to IP54.

Features

1. Material: 304# brushed stainless steel.
2. Conductive silicone rubber produced using natural rubber, wear resistance, corrosion resistance, anti-aging
3. Stainless steel keypad frame is available as customer’s request.
4. Double-sided PCB (customized), contacts Gold-finger use of gold process, the contact is more reliable
5. LED color is customized.
6.Buttons layout could be customized as clients’ request.
7.With the exception of the telephone, the keyboard can also be designed for other purposes.

Application

wgvfeg

Normally used in door safety.

Parameters

Item

Technical data

Input Voltage

3.3V/5V

Waterproof Grade

IP65

Actuation Force

250g/2.45N(Pressure point)

Rubber Life

More than 1 million cycles

Key Travel Distance

0.45mm

Working Temperature

-25℃~+65℃

Storage Temperature

-40℃~+85℃

Relative Humidity

30%-95%

Atmospheric Pressure

60Kpa-106Kpa

            LED color

Customized

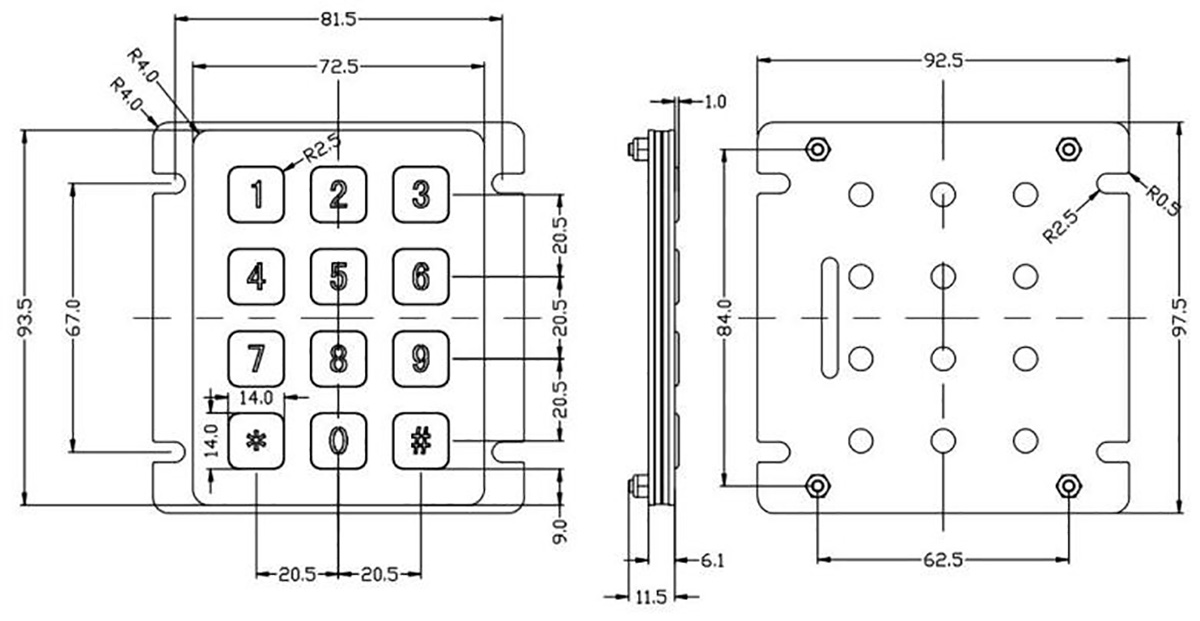

Dimension Drawing

avab

Available Connector

vav (1)

Any appointed connector could be made as customer's request. Let us know the exact item No. in advance.

Available color

avava

If you have any color request, let us know.

Test machine

avav

85% spare parts are produced by our own factory and with matched test machines, we could confirm the function and standard directly.
