IP Industrial Waterproof Telephone for Mining Project-JWAT901
Short Description:

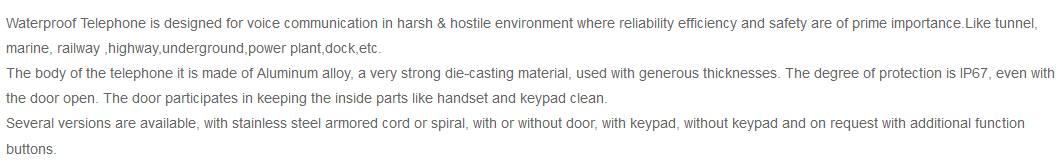

It is an industrial waterproof telephone which is fully contained within a corrosion resistant cast aluminium alloy weatherproof case.With a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.The case is very thick, closed to explosion-proof requirements.
With the production test with many tests like elextroacoustical test,FR test,High&Low temperature test,working life test etc.,each waterproof telephone have been waterproof tested and obtain international certificates. We have our own factories with self-made telephone parts，we can provide competitive, quality assurance, after-sale protection of waterproof telephone for you.
This Waterproof Telephone Is Very Popular For Mining,Tunnels , Marine, Underground, Metro Stations, Railway Platform, Highway Side, Parking Lots, Steel Plants, Chemical Plants, Power Plants And Related Heavy Duty Industrial Application, Etc.
| Item | Technical data |
| Power Supply | PoE,12V DC or 220VAC |
| Voltage | 24--65 VDC |
| Standby Work Current | ≤0.2A |
| Frequency Response | 250～3000 Hz |
| Ringer Volume | >80dB(A) |
| Corrosion Grade | WF1 |
| Ambient Temperature | -40～+60℃ |
| Atmospheric Pressure | 80～110KPa |
| Relative Humidity | ≤95% |
| Lead Hole | 3-PG11 |
| Installation | Wall-mounted |
If you have any color request, let us know the Pantone color No.
85% spare parts are produced by our own factory and with matched test machines, we could confirm the function and standard directly.
