Plastic Industrial Weatherproof IP Telephone with loudspeaker for Marine Project-JWAT305

Short Description:

It is an industrial weatherproof telephone which is fully contained within a corrosion resistant cast engineering plastic waterproof case.With a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.It can be connect to loudspeaker,the volume of the loudspeaker can be adjusted freely.

We have established a skilled production system from material sourcing to manufacture and sales, as well as a skilled R&D and QC staff. We also have our own factory. We always stay current on market developments. In order to suit the demands of the market, we are eager to develop new technologies and services. Any email or message will receive a response from a knowledgeable online support team within 24 hours. OEM and ODM, customized branding, packaging, and trademarks are permissible.



Product Detail

Product Tags

Product Introduction

The body of the telephone it is made of Engineering plastic, a very strong injection molding material, used with generous thicknesses. The degree of protection is IP67, even with the door open. The door participates in keeping the inside parts like handset and keypad clean.
The function keys could be set by speed dial, redial ,mute,volume adjust,etc.


1.Engineering plastic injection moulding shell, high mechanical strength and strong impact resistance.
2.Support 2 lines SIP, SIP 2.0 (RFC3261).
3.Audio Codes:G.711, G.722, G.729.
4.IP Protocols:IPv4, TCP, UDP, TFTP, RTP, RTCP, DHCP, SIP.
5.Echo cancellation code:G.167/G.168.
6.Supports full duplex.
7.WAN/LAN: support Bridge mode.
8.Support DHCP get IP on WAN port.
9.Support PPPoE for xDSL.
10.Support DHCP get IP on WAN port.
11.Heavy Duty handset with hearing Aid compatible receiver, Noise canceling microphone.
12.Weather proof Protection class to IP68.
13.Waterproof zinc alloy Keypad.Buttons can be programmed as function button like SOS,repeat,etc.
14.Wall mounted, Simple installation.
15.Sound level of ringing: 110 dB(A).
16.OEM & ODM, customized design/logo/brand and package are acceptable.
17.Self-made telephone spare part available.
18.CE, FCC, RoHS, ISO9001 compliant.



This weatherproof phone is commonly used for marine, tunnels, mining, underground, metro stations, railroad platforms, highway sides, parking lots, steel plants, chemical plants, power plants, and other heavy-duty industrial applications, among others.


Item Technical data
Power Supply PoE,12V DC or 220VAC
Voltage 24--65 VDC
Standby Work Current ≤0.2A
Frequency Response 250~3000 Hz
Ringer Volume >80dB(A)
Corrosion Grade WF1
Ambient Temperature -40~+60℃
Atmospheric Pressure 80~110KPa
Relative Humidity ≤95%
Lead Hole 3-PG11
Installation Wall-mounted

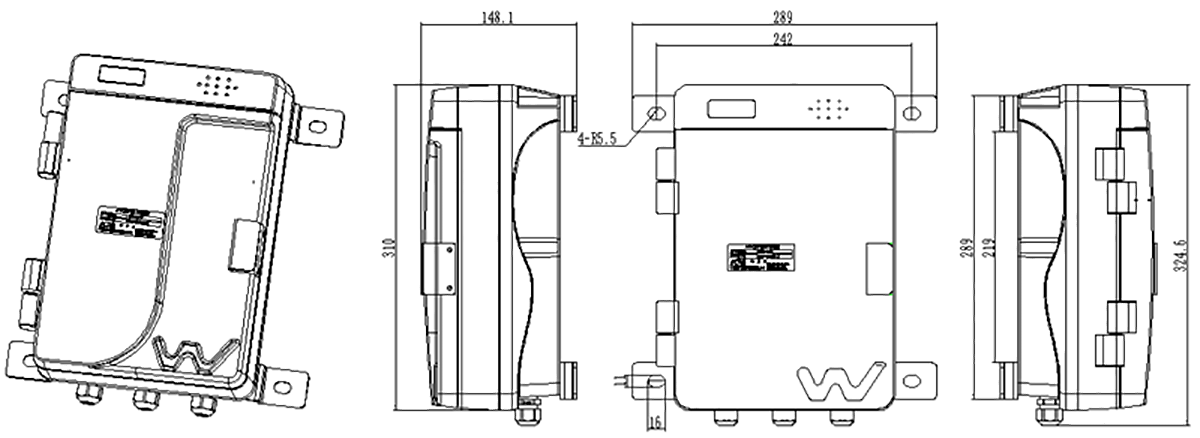

Dimension Drawing


Available Connector

ascasc (2)

If you have any color request, let us know the Pantone color No.

Test machine

ascasc (3)

85% spare parts are produced by our own factory and with matched test machines, we could confirm the function and standard directly.
