Industrial Weatherproof IP Telephone with LCD display for Construction Communications-JWAT921

Short Description:

It is an industrial weatherproof telephone which is fully contained within a corrosion resistant cast aluminium alloy waterproof case.With a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.

With a professional R&D team in industrial telecommunication filed since 2005 Year, Each weatherproof telephone have been waterproof tested and obtain international certificates. We have our own factories with self-made telephone parts，we can provide competitive, quality assurance, after-sale protection of weatherproof telephone for you.






Product Detail

Product Tags

Product Introduction

Weatherproof Telephone is designed for voice communication in harsh & hostile environment where reliability efficiency and safety are of prime importance.Like tunnel, marine, railway ,highway,underground,power plant,dock,etc.
The body of the telephone it is made of Aluminum alloy, a very strong die-casting material, used with generous thicknesses. The degree of protection is IP67, even with the door open.
Several versions are available, with stainless steel armored cord or spiral,with keypad, without keypad and on request with additional function buttons.

Features

Aluminum alloy die-casting shell, high mechanical strength and strong impact resistance.
2.Heavy Duty handset with hearing Aid compatible receiver, Noise canceling microphone.
3.Vandal resistant zinc alloy keypad.
4.With LED light on the top, it will flashing when there is an incoming call.
5. with LCD display, it can show talking time, dialing number, date, own number, and caller number.
6. Support SIP 2.0（RFC3261）,RFC Protocol.
7.Audio Codes:G.729、G.723、G.711、G.722、G.726,etc.
8.Weather proof Protection class to IP65.
9.The available colors as an option.
10.Wall mounted, Simple installation.
11.Self-made telephone spare part available.
12.CE, FCC, RoHS, ISO9001 compliant.

Application

avasv

This Weatherproof Telephone Is Very Popular For Subway,Tunnels, Mining, Marine, Underground, Metro Stations, Railway Platform, Highway Side, Parking Lots, Steel Plants, Chemical Plants, Power Plants And Related Heavy Duty Industrial Application, Etc.

Parameters

Item Technical data
Protocol SIP2.0(RFC-3261)
Audio Amplifier 2.4W
Volume Control Adjustable
Support RTP
Codec G.729、G.723、G.711、G.722、G.726
Power Supply 12V (±15%) / 1A DC or PoE
LAN 10/100BASE-TX s Auto-MDIX, RJ-45
WAN 10/100BASE-TX s Auto-MDIX, RJ-45
Weight 7 KG
Installation Wall-mounted
Protocol SIP2.0(RFC-3261)

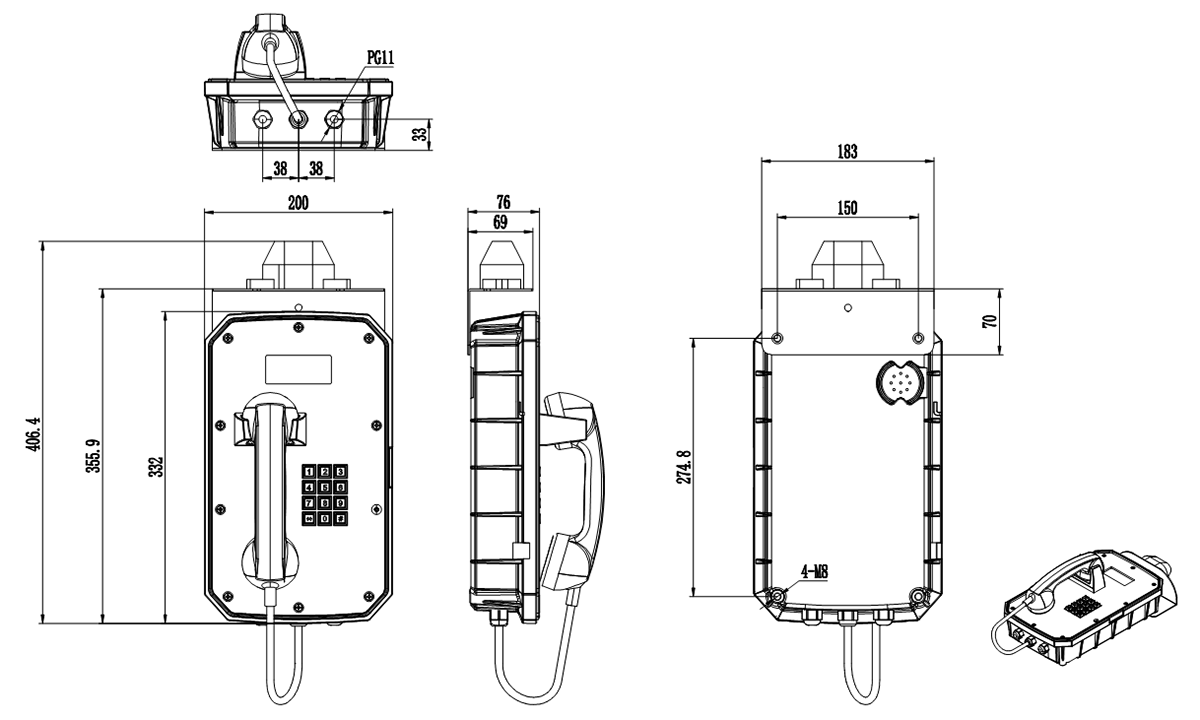

Dimension Drawing

vavav

Available Connector

ascasc (2)

If you have any color request, let us know the Pantone color No.

Test machine

ascasc (3)

85% spare parts are produced by our own factory and with matched test machines, we could confirm the function and standard directly.
