Industrial stainless steel Large inmate Wall mount Telephone for Swimming Pools-JWAT148

Short Description:

Joiwo’s wall mount direct connect large size telephone for standard keypad dialing or without ringer. This type telephone use rugged stainless steel material and equipped with tamper resistant security screws for added strength and durability. Included the backplate which is compatible with the existing  payphone enclosures. From turnkey telephone solutions, to kits and parts designed for integration with third-party equipment, to custom engineering, Ningbo Joiwo  is committed to providing excellent customer service and products that are “built to last!”




Product Detail

Product Tags

Product Introduction

JWAT148 Large Wall mount Telephone is designed to make a reliable and professional  telephone system communication.

This model is constructed of rugged stainless steel or cold rolled steel , IP65 waterproof defend grade,Equipped with marine quality chrome tone dial keypad and reed switch, instruction or advertising window, ID window, 18"hearing aid compatible armored cord handset with internal steel lanyard( cord length customized) , which is anchored into the housing for added strength, tamper resistant security screws, and backplate for easy wall mounting or installation with existing type and payphone enclosures.Equipped with high tensile handset which could afford 100kg force strength.

Several versions could be chosen, color customized，with or without keypad, telephone function customized.
More than 85% of Joiwo's accessories are self-made,Like cradle, handset, keypad,etc which has absolute competitive and cost advantages.

Features

1.Standard Analogue phone. Phone line powered.
2.304 stainless steel material shell, high mechanical strength and strong impact resistance.
3.Vandal resistant handset with Internal steel lanyard and grommet provides added security for handset cord.
4.Zinc alloy keypad with volume control button.
5.Magnetic hook switch with reed switch.
6.Zinc Alloy Connector with flexible rotation and reliable connection.
7.Optional noise-canceling microphone available
8.Wall mounted, Simple installation.
9.Weather proof protection IP54.
10.Connection: RJ11 screw terminal pair cable.
11.Multiple color available.
12.Self-made telephone spare part available.
13.CE, FCC, RoHS, ISO9001 compliant .

Application

ascasc (1)

This kind telephone can be used for swimming pool, water park, jails, hospitals, health center,guard room,platforms, dormitories, airports, control rooms, sally ports, campus, plant, gate and entryways, PREA phone,or waiting rooms etc.

Parameters

Item Technical data
Power Supply Telephone Line Powered
Voltage 24--65 VDC
Standby Work Current ≤1mA
Frequency Response 250～3000 Hz
Ringer Volume >85dB(A)
Corrosion Grade WF1
Ambient Temperature -40～+70℃
Anti-vandalism Level IK10
Atmospheric Pressure 80～110KPa
Relative Humidity ≤95%
Weigh 7kg
Installation Wall-mounted

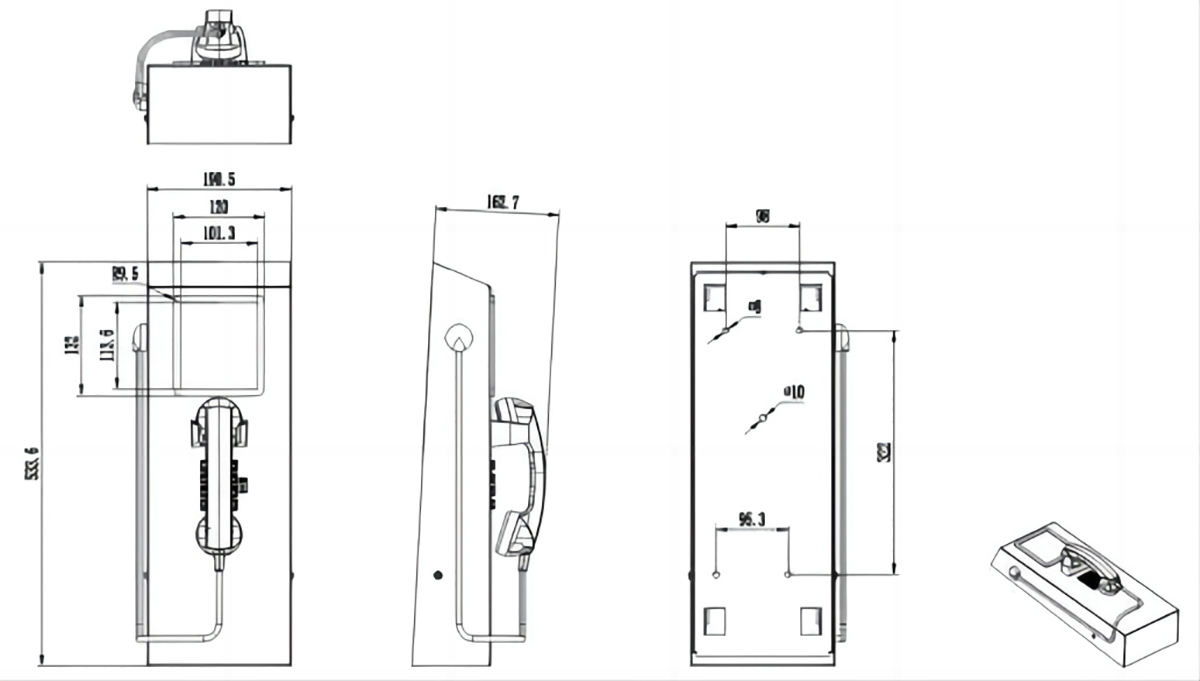

Dimension Drawing

scvasva

Available Connector

ascasc (2)

If you have any color request, let us know the Pantone color No.

Test machine

ascasc (3)

85% spare parts are produced by our own factory and with matched test machines, we could confirm the function and standard directly.
