Mini Wall Small Direct dial ringdown Prison telephones for health center-JWAT132

Short Description:

Joiwo’s Mini Wall Telephone Series are specifically designed for high vandalism areas subject to fraud and abuse. The health center is a important area and it need more efficient ,clean, safety for communication.

This kind telephone is vandal resistant and have strong impact resistance.Our telephones can be divided into analog, IP and wireless systems according to customer needs, providing stable and long-lasting communication in each mode.

Joiwo has been providing telecom solutions since 2005. Our industrial vandal resistant technology focuses on providing Jail and Public communication solutions.Our Aim to providing expert service and support extends beyond the warranty of our product.




Product Detail

Product Tags

Product Introduction

JWAT145 Direct dial ringdown Prison telephone is designed to make a reliable safety communication system.
The telephone could be chosen by SUS304 stainless steel or Cold rolled steel material, Stainless steel material is more resistant to corrosion.The armoured cord handset could provide more than 100kg tensile force strength.Equipped with tamper resistant security screws for added strength and durability.The cable entrance is on the back of the phone to prevent from artificial damage.
Several versions are available, color customized，with keypad, without keypad and on request with additional function buttons.
Telephone parts is produced by self-made , every parts like keypad, cradle, handset could be customized.

Features

1.Standard Analogue phone. Telephone line powered.
2.304 stainless steel material shell, high mechanical strength and strong impact resistance.
3.Vandal resistant handset with armored cord and grommet provides added security for handset cord.
4.Zinc alloy keypad with volume control button.Weather sealed tactile digital keypad.
5.Magnetic hook switch with reed switch.
6.Optional noise-canceling microphone available
7.Wall mounted, Simple installation.
8.Weather proof protection IP65.
9.Connection: RJ11 screw terminal pair cable.
10.Multiple color available.
11.Self-made telephone spare part available.
12.CE, FCC, RoHS, ISO9001 compliant.

Application

ascasc (1)

The stainless steel phone can be used in a variety of applications such as in jails, hospitals, health center,guard room,platforms, dormitories, airports, control rooms, sally ports, campus, plant, gate and entryways, PREA phone,or waiting rooms etc.

Parameters

Item Technical data
Power Supply Telephone Line Powered
Voltage 24--65 VDC
Standby Work Current ≤1mA
Frequency Response 250～3000 Hz
Ringer Volume >85dB(A)
Corrosion Grade WF1
Ambient Temperature -40～+70℃
Anti-vandalism Level IK10
Atmospheric Pressure 80～110KPa
Relative Humidity ≤95%
Installation Wall-mounted

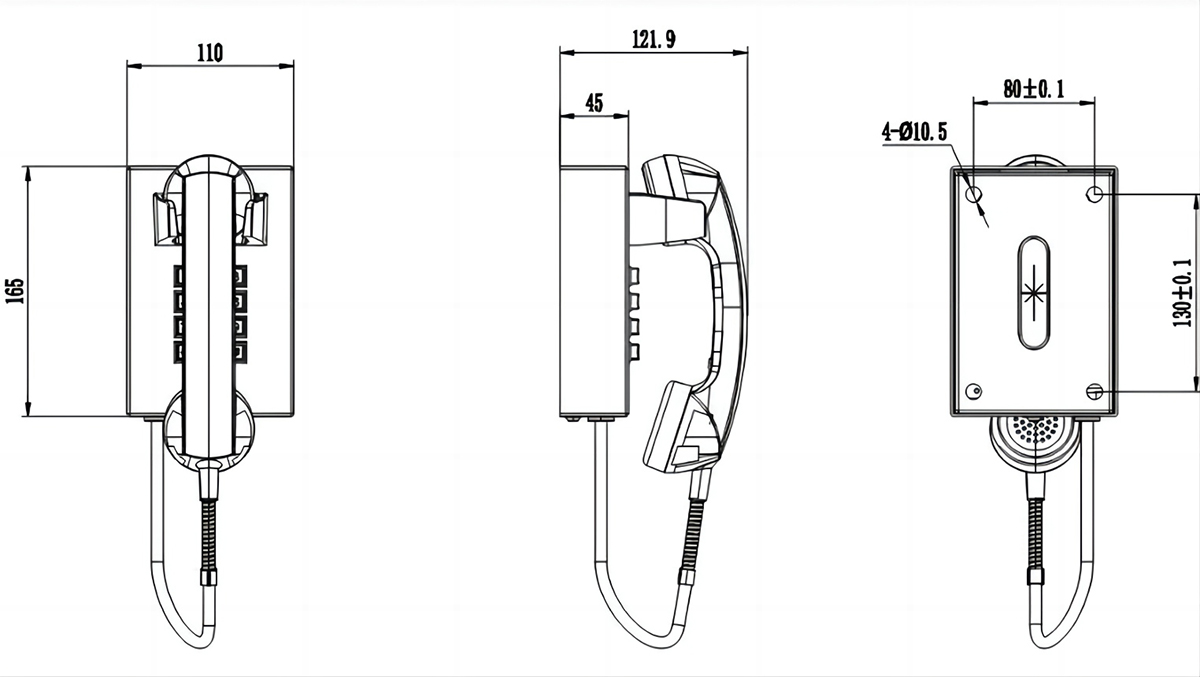

Dimension Drawing

avsa

Available Connector

ascasc (2)

If you have any color request, let us know the Pantone color No.

Test machine

ascasc (3)

85% spare parts are produced by our own factory and with matched test machines, we could confirm the function and standard directly.
