Vandal resistant stainless steel Big Size Prison Wall mount Telephone for Jail-JWAT147

Short Description:

Joiwo’s large-sized telephone is designed to provide better and more reliable communication quality for prison users, and this telephone can be combined with system products to realize monitoring, fee deduction, and conference functions.

Ningbo Jiuwo has a senior R&D team that can provide OEM and ODM services, and has been deeply involved in the field of industrial communication since 2005. We believe we will bring the best quality service for you.

As a leader of industrial telephone solution manufactory




Product Detail

Product Tags

Product Introduction

This telephone is made of stainless steel material , anti-corrosion, anti-oxidation, All surfaces are laser cut or directly molded for perfect shape. Simple to install through the tamper screws.All the telephone have security screws to strengthen the housing. The grommet of bottom provides stronger security for handset armoured cord.
The panel have a windows instruction card which could write something to show.Equipped with tamper resistant security screws for added strength and durability.The cable entrance is on the back of the phone to prevent from artificial damage.Full zinc alloy keypad with Volume control button which could adjust the volume in the call.
Several versions are available, color customized，with keypad, without keypad and on request with additional function buttons.
Telephone parts is produced by self-made , every parts like keypad, cradle, handset could be customized.

Features

1.Standard Analogue phone. Phone line powered.
2.304 stainless steel material shell, high mechanical strength and strong impact resistance.
3.Vandal resistant handset with Internal steel lanyard and grommet provides added security for handset cord.
4.Zinc alloy keypad with volume control button.
5.Magnetic hook switch with reed switch.
6.Optional noise-canceling microphone available
7.Wall mounted, Simple installation.
8.Weather proof protection IP54.
9.Connection: RJ11 screw terminal pair cable.
10.Multiple color available.
11.Self-made telephone spare part available.
12.CE, FCC, RoHS, ISO9001 compliant .

Application

ascasc (1)

The big size vandal proof telephone is popular for jails, hospitals, health center,guard room,platforms, airports, control rooms, plant, gate and entryways, PREA phone,or waiting rooms etc.

Parameters

Item Technical data
Power Supply Telephone Line Powered
Voltage 24--65 VDC
Standby Work Current ≤1mA
Frequency Response 250～3000 Hz
Ringer Volume >85dB(A)
Corrosion Grade WF1
Ambient Temperature -40～+70℃
Anti-vandalism Level IK10
Atmospheric Pressure 80～110KPa
Relative Humidity ≤95%
Weight 7kg
Installation Wall-mounted

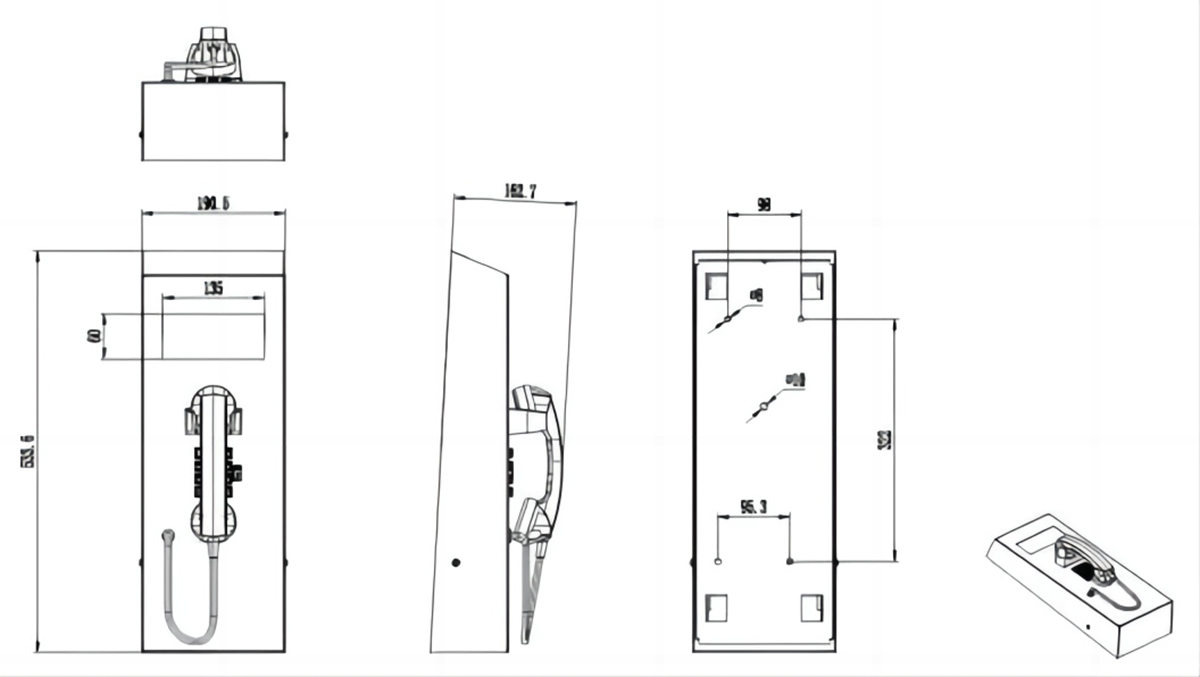

Dimension Drawing

avasv

Available Connector

ascasc (2)

If you have any color request, let us know the Pantone color No.

Test machine

ascasc (3)

85% spare parts are produced by our own factory and with matched test machines, we could confirm the function and standard directly.
