Dust proof 12 keys keypad for ticket machines B721

Short Description:

Strong stainless steel made mainly used for ticket machines, custom made acceptable to meet any of your demands.IP65 waterproof grade which support the devices outdoor.

With a professional R&D team in industrial telecommunication filed for 17 years, we could customize handsets, keypads, housings and telephones for different applications.


Product Detail

Product Tags

Product Introduction

Specially designed for public environment  applications, such as vending machines,  ticket machines, payment terminals,  telephones, access control systems and  industrial machinery. Keys and front panel are built from SUS304#  stainless steel with high resistance to impact  and vandalism and is also sealed to IP67.

Features

1.Keypad made of stainless steel.Vandal resistance.
2.Font button surface and pattern can be customized according to customer requirements
3.Double-sided board,Good for contact of gold-finger.
4.3X4 layout, Matrix design. 10 number buttons and 2 function buttons
5.Buttons layout could be customized as clients’ request.
6.Connector is optional
7.Keypad signal is optional

Application

va (2)

The keypad mainly used in access control system and kiosk.

Parameters

Item

Technical data

Input Voltage

3.3V/5V

Waterproof Grade

IP65

Actuation Force

250g/2.45N(Pressure point)

Rubber Life

More than 500 thousand cycles

Key Travel Distance

0.45mm

Working Temperature

-25℃~+65℃

Storage Temperature

-40℃~+85℃

Relative Humidity

30%-95%

Atmospheric Pressure

60Kpa-106Kpa

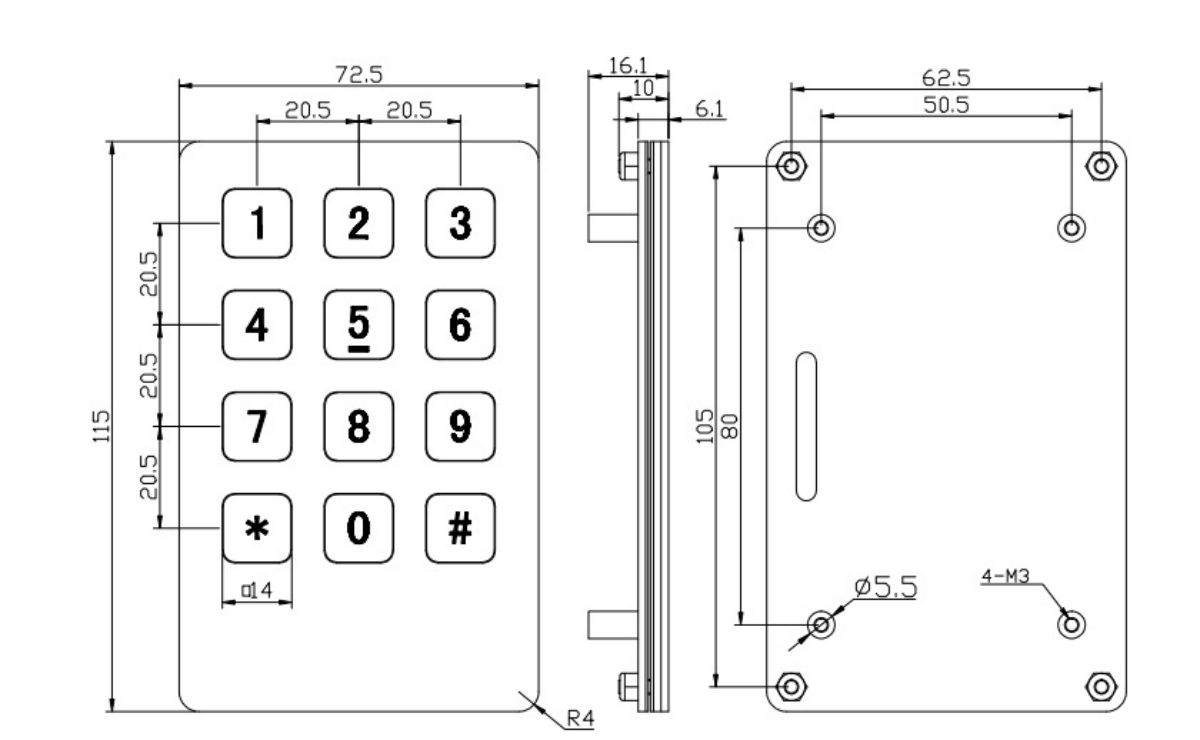

Dimension Drawing

cvav

Available Connector

vav (1)

Any appointed connector could be made as customer's request. Let us know the exact item No. in advance.

Test machine

avav

85% spare parts are produced by our own factory and with matched test machines, we could confirm the function and standard directly.
