3×5 layout rugged metal keypad for outdoor B722

Short Description:

Keypad made of stainless steel which is vandal resistance,3×5 layout rugged metal used for outdoor and other public devices.Keypad interfaces available for your choose.

With a professional R&D team in industrial telecommunication filed for 17 years, we could customize handsets, keypads, housings and telephones for different applications.


Product Detail

Product Tags

Product Introduction

Keypad made of stainless steel.Vandal resistance. The button surface and pattern can be customized according to customer requirements. It is mainly for access control system, industrial telephone, vending machine, security system and some other public facilities.

Features

1.Keypad made of stainless steel.Vandal resistance.
2.Font button surface and pattern can be customized according to customer requirements
3.Double-sided board,Good for contact of gold-finger.
4.3X5 layout, Matrix design. 10 number buttons and 5 function buttons
5.Buttons layout could be customized as clients’ request.
6.Keypad interface is optional.

Application

va (2)

Normally the keypad is specialized for ticket machies and payment terminals.

Parameters

Item

Technical data

Input Voltage

3.3V/5V

Waterproof Grade

IP65

Actuation Force

250g/2.45N(Pressure point)

Rubber Life

More than 500 thousand cycles

Key Travel Distance

0.45mm

Working Temperature

-25℃~+65℃

Storage Temperature

-40℃~+85℃

Relative Humidity

30%-95%

Atmospheric Pressure

60Kpa-106Kpa

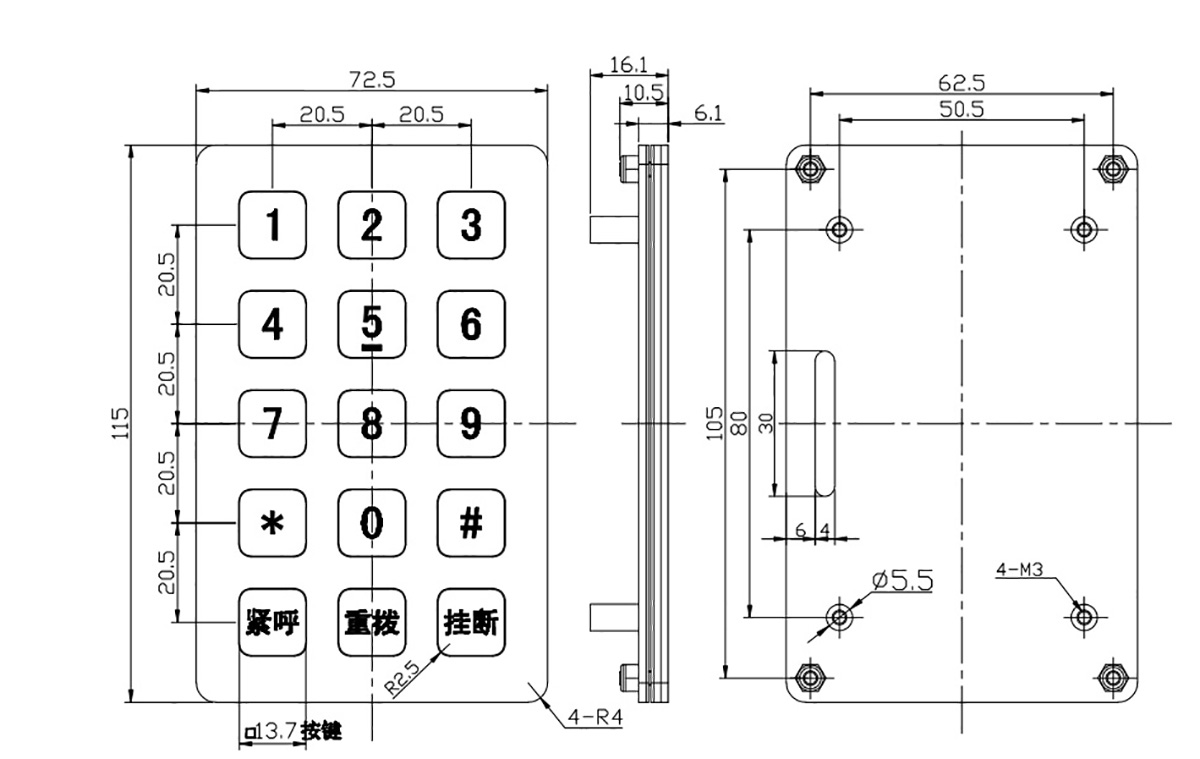

Dimension Drawing

avav

Available Connector

vav (1)

Any appointed connector could be made as customer's request. Let us know the exact item No. in advance.

Test machine

avav

85% spare parts are produced by our own factory and with matched test machines, we could confirm the function and standard directly.
