Stainless steel keypad for self-service terminal B701

Short Description:

It is a special industrial keypad with weather proof and waterproof features, which designed for self-service terminal.

With a professional R&D team in industrial telecommunication filed for 17 years, we could customize handsets, keypads, housings and telephones for different applications.


Product Detail

Product Tags

Product Introduction

The 20 key S.series keypads are specially  designed for public environment applications, such as vending machines, ticket machines,  payment terminals, telephones, access  control systems and industrial machinery. Keys and front panel are built from SUS304#  stainless steel with high resistance to impact  and vandalism and is also sealed to IP67.

Features

1.20 Keys vandal-proof IP65 stainless steel matrix keypad.10 number keys, 10 function keys.
2.Keys are good touch feeling and accurate data input without any noise.
3.Easy to install and maintenance; flush mount.
4.The panel and buttons are made of stainless steel 304, which is highly rugged, vandal-proof, against corrosion, weather-proof.
5.Font and pattern of key surface can be customized.
6.The keypad is waterproof, anti-drilling and removal-proof.
7.The keypad uses double-sided PCB and mental dome; Good contact.
8.The labels on the buttons are made by etching, and fill in high strength paint.

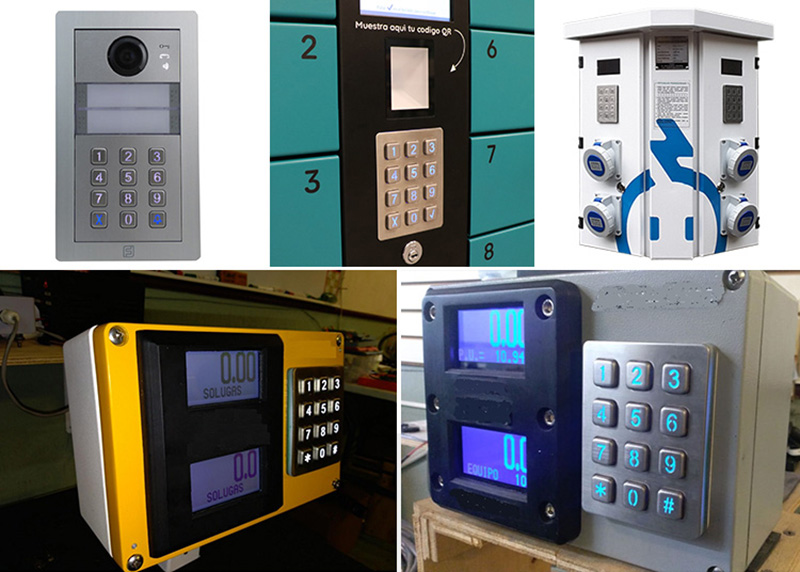

Application

vav (2)

This stainless steel keypad could be for all self-service terminals, such as ticket machines,vending machines,access control system and so on.

Parameters

Item

Technical data

Input Voltage

3.3V/5V

Waterproof Grade

IP65

Actuation Force

250g/2.45N(Pressure point)

Rubber Life

More than 500 thousand cycles

Key Travel Distance

0.45mm

Working Temperature

-25℃~+65℃

Storage Temperature

-40℃~+85℃

Relative Humidity

30%-95%

Atmospheric Pressure

60Kpa-106Kpa

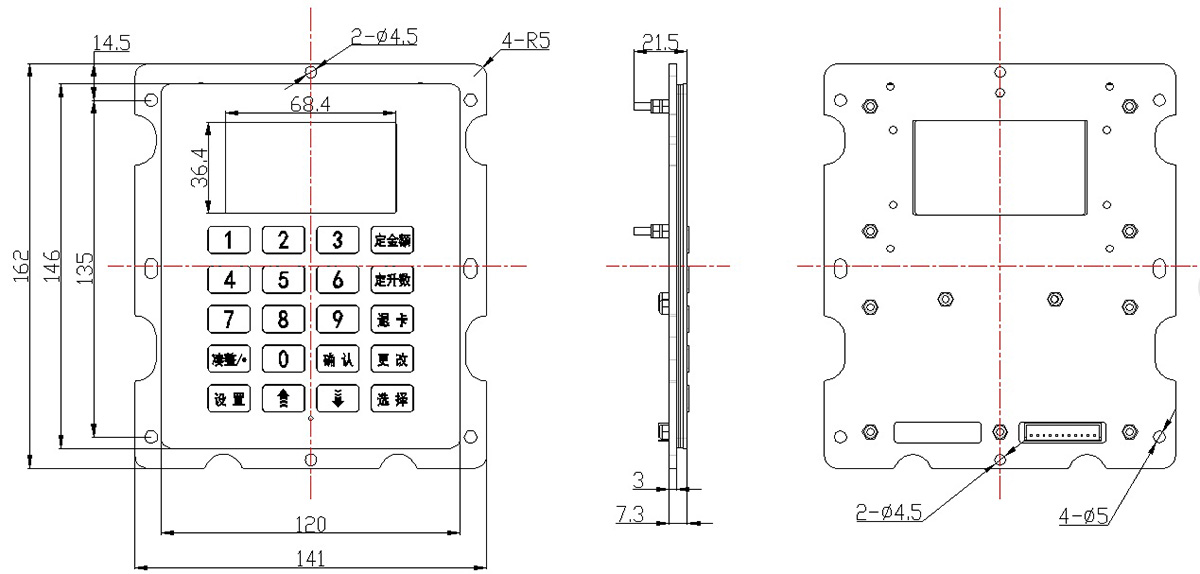

Dimension Drawing

vav (3)

Available Connector

vav (1)

Any appointed connector could be made as customer's request. Let us know the exact item No. in advance.

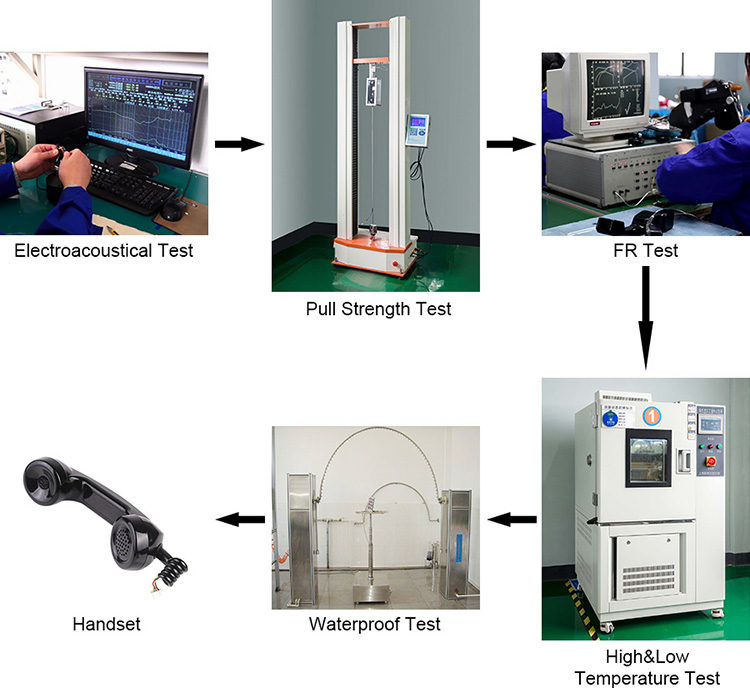

Test machine

p (2)

85% spare parts are produced by our own factory and with matched test machines, we could confirm the function and standard directly.
