3×3 industrial control system keypad stainless steel B764

Short Description:

9 Keys Vandal proof IP65 stainless steel, Dot matrix keypad. Mainly used for access control system and other public facilities, stainless steel made features weather proof and IP65 waterproof.

With a professional R&D team in industrial telecommunication filed for 17 years, we could customize handsets, keypads, housings and telephones for different applications.


Product Detail

Product Tags

Product Introduction

The keypad mainly used for access control system and other public facilities.Specially designed keyboards meet the highest demands with regard to design, functionality, longevity and high protection level.

Features

1.Keypad made of stainless steel. Vandal resistance, waterproof, explosionproof
2.Font button surface and pattern can be customized according to customer requirements
3.keys layout can be customized
4.keypad connector and optional is optional

Application

va (2)

The keypad normally used for access control system.

Parameters

Item

Technical data

Input Voltage

3.3V/5V

Waterproof Grade

IP65

Actuation Force

250g/2.45N(Pressure point)

Rubber Life

More than 500 thousand cycles

Key Travel Distance

0.45mm

Working Temperature

-25℃～+65℃

Storage Temperature

-40℃～+85℃

Relative Humidity

30%-95%

Atmospheric Pressure

60Kpa-106Kpa

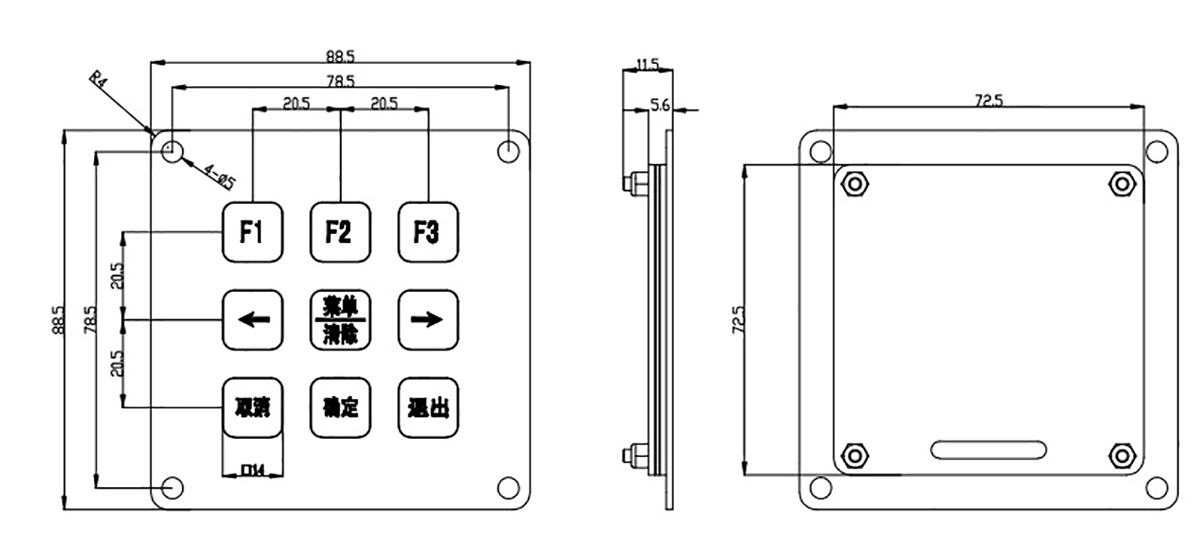

Dimension Drawing

avav

Available Connector

vav (1)

Any appointed connector could be made as customer's request. Let us know the exact item No. in advance.

Test machine

avav

85% spare parts are produced by our own factory and with matched test machines, we could confirm the function and standard directly.
