16 keys stainless steel keypad for fuel dispenser B723

Short Description:

It’s 4×4 16 keys stainless steel keypad, with matrix signal. Mainly used for fuel dispenser, IP65 waterproof and IK09 vandal proof, different connectors for choice. With a professional R&D team in industrial telecommunication filed for 17 years, we could customize handsets, keypads, housings and telephones for different applications.


Product Detail

Product Tags

Product Introduction

The keypad mainly used for fuel dispenser, 16 keys IP65 dynamic compact format vandal proof, industrial numberic keypad with industrial PCB electronics.

Features

1.Keypad made of stainless steel.Vandal resistance.
2.Font button surface and pattern can be customized according to customer requirements.
3.4X4 layout, Matrix design. 10 number buttons and 6 function buttons.
4.Buttons layout could be customized as clients’ request.
5.With the exception of the telephone, the keyboard can also be designed for other purposes
6.keypad signal in optional, RS232/RS485/USB/matrix design

Application

va (2)

The keypad mainly used in access control and kiosk.

Parameters

Item

Technical data

Input Voltage

3.3V/5V

Waterproof Grade

IP65

Actuation Force

250g/2.45N(Pressure point)

Rubber Life

More than 500 thousand cycles

Key Travel Distance

0.45mm

Working Temperature

-25℃~+65℃

Storage Temperature

-40℃~+85℃

Relative Humidity

30%-95%

Atmospheric Pressure

60Kpa-106Kpa

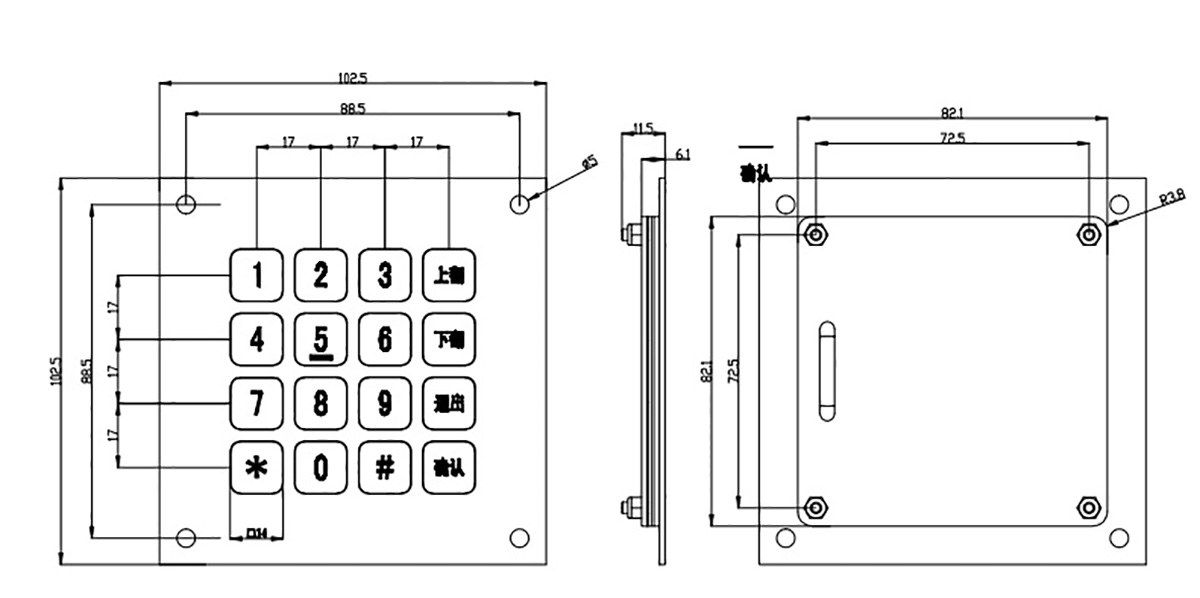

Dimension Drawing

acav

Available Connector

vav (1)

Any appointed connector could be made as customer's request. Let us know the exact item No. in advance.

Test machine

avav

85% spare parts are produced by our own factory and with matched test machines, we could confirm the function and standard directly.
