Matrix 3×4 Waterproof IP65 Znic Alloy numeric Keypad B509

Short Description:

It is the zinc ally keypad.The application is mainly used for remote control,access control and self-terminal device. We aims to become the number one professional supplier of industrial keypads and handsets in global market.


Product Detail

Product Tags

Product Introduction

With IP65 waterproof grade, this keypad could be used in outdoor area with cover. The original design of this keypad is matrix keypad and it could be made with ASCII RS485 interface.
We are glad to offer you samples for test. Leave us a message of the item you want and your address. We will offer you sample packing information, and select the best way to deliver it.

Features

1.Surface treatment: bright chrome or matte chrome plating.
2.With USB or XH plug with VCC and GND signal.
3.The painting color of numbers on buttons could be made with different color.

Application

vav

RS485 keypad could be used in access control system with far controlling distance.

Parameters

Item

Technical data

Input Voltage

3.3V/5V

Waterproof Grade

IP65

Actuation Force

250g/2.45N(Pressure point)

Rubber Life

More than 2 million time per key

Key Travel Distance

0.45mm

Working Temperature

-25℃~+65℃

Storage Temperature

-40℃~+85℃

Relative Humidity

30%-95%

Atmospheric Pressure

60kpa-106kpa

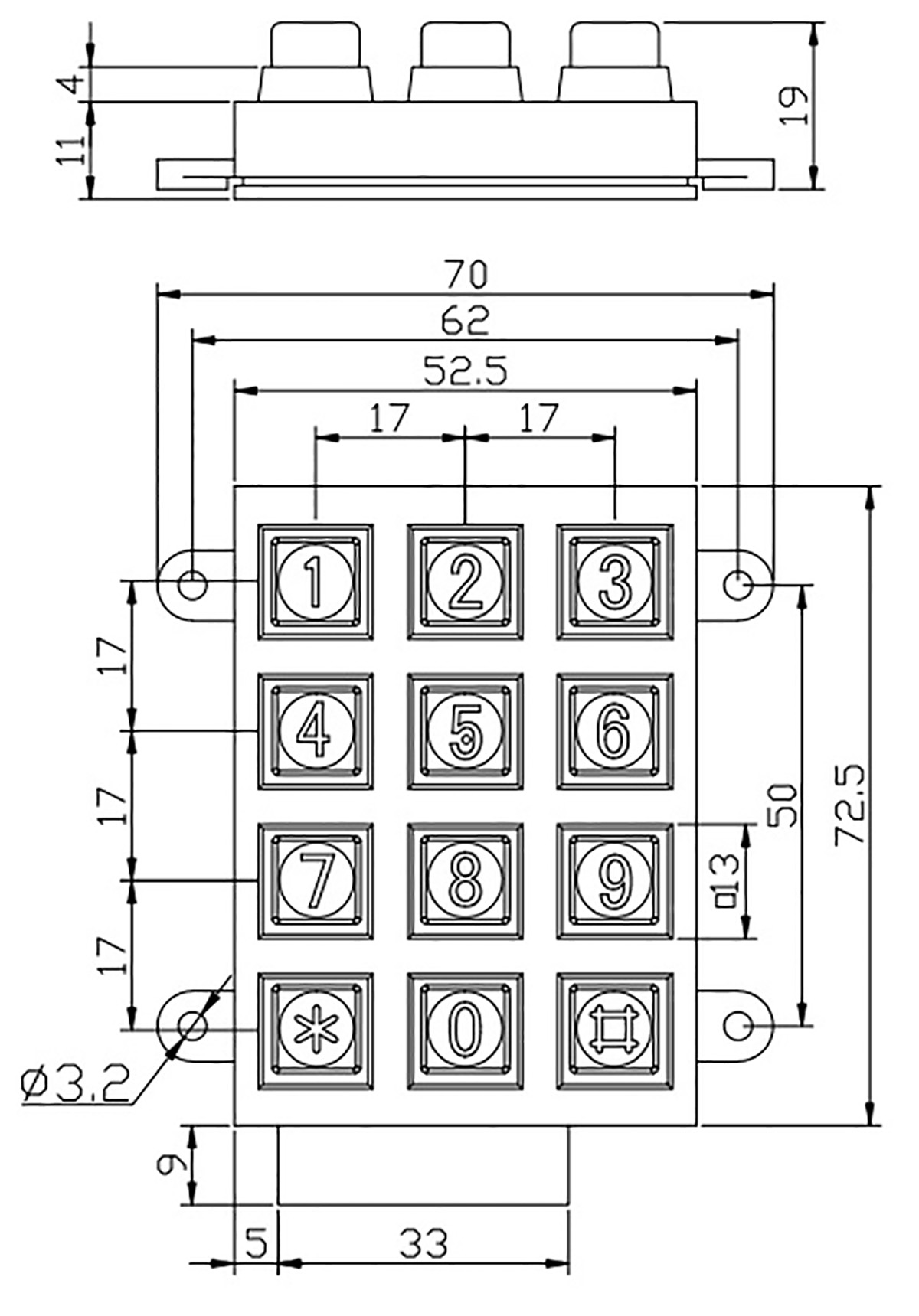

Dimension Drawing

AVAA

Available Connector

vav (1)

Any appointed connector could be made as customer's request. Let us know the exact item No. in advance.

Test machine

avav

85% spare parts are produced by our own factory and with matched test machines, we could confirm the function and standard directly.
