Big panel fuel dispenser keypad stainless steel B735 Featured Image
  • Big panel fuel dispenser keypad stainless steel B735

Big panel fuel dispenser keypad stainless steel B735

Short Description:

It’s mainly used for fuel dispenser and custom product with LCD window.Keys are good touch feeling and accurate data input without any noise.

With a professional R&D team in industrial telecommunication filed for 17 years, we could customize handsets, keypads, housings and telephones for different applications.


Product Detail

Product Tags

Product Introduction

It is made of stainless steel.Vandal resistance. The button surface and pattern can be customized according to customer requirements. It is mainly for access control system, industrial telephone, vending machine, security system and some other public facilities.

Features

1.304# stainless steel material.
2.With LCD window.
3.Buttons layout could be customized.
4.keypad connector is optional.

Application

va (2)

Normally used in fuel dispenser.

Parameters

Item

Technical data

Input Voltage

3.3V/5V

Waterproof Grade

IP65

Actuation Force

250g/2.45N(Pressure point)

Rubber Life

More than 500 thousand cycles

Key Travel Distance

0.45mm

Working Temperature

-25℃～+65℃

Storage Temperature

-40℃～+85℃

Relative Humidity

30%-95%

Atmospheric Pressure

60Kpa-106Kpa

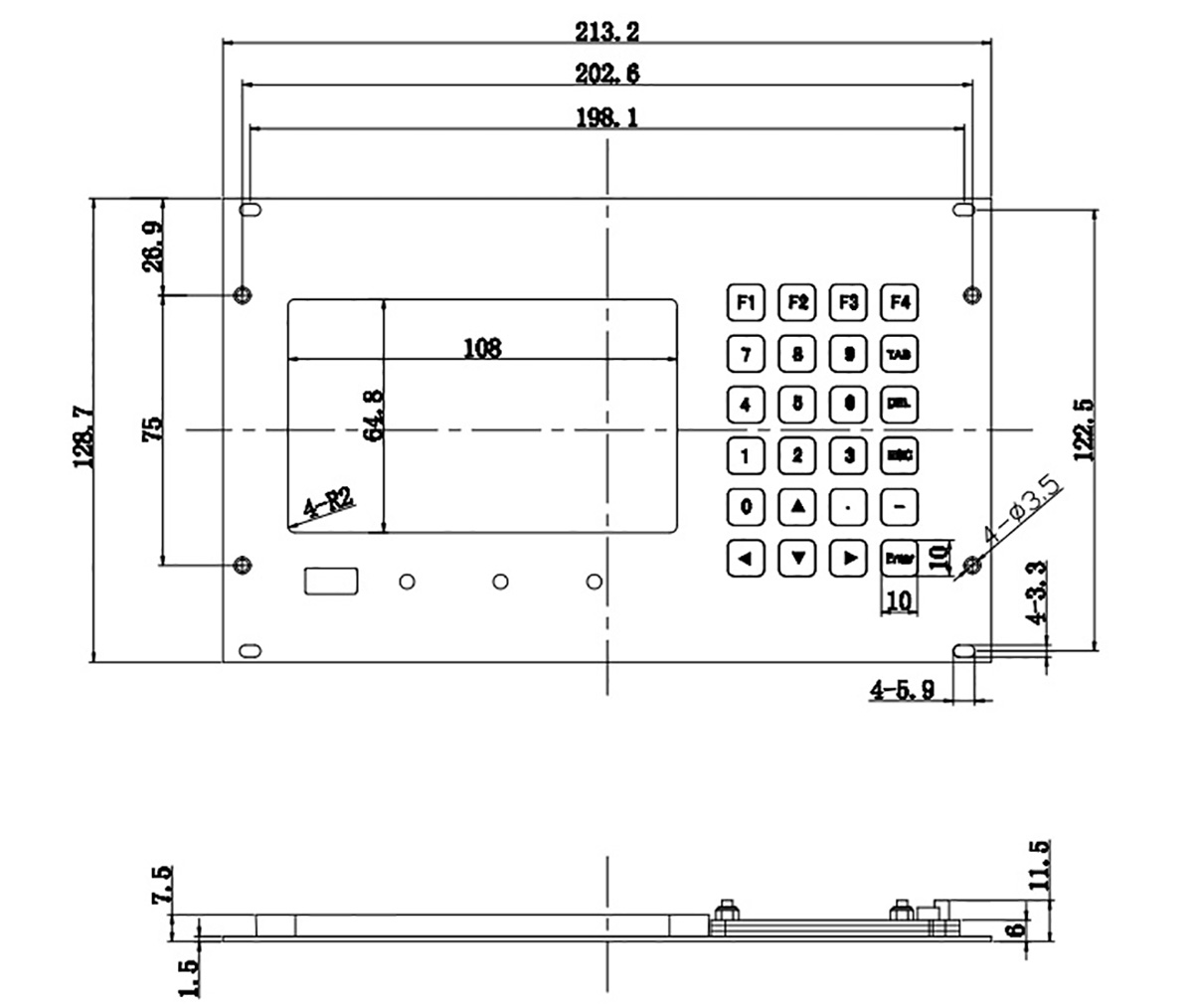

Dimension Drawing

svav

Available Connector

vav (1)

Any appointed connector could be made as customer's request. Let us know the exact item No. in advance.

Test machine

avav

85% spare parts are produced by our own factory and with matched test machines, we could confirm the function and standard directly.
