metal numeric keypad for kiosk ATM ticket CNC IP65 B512

Short Description:

It is rugged metal die cast 4X4 matrix keypad for fuel dispenser

100% in time after-sales guaranteed! Refund or Resent goods can be discussed based on the damaged quantity.So please has no worry about the after sales service.

Product Detail

Product Tags

Product Introduction

This keypad was original designed for industrial intercom with reliable quality.With customized buttons, it was also chose for fuel dispenser keypad with lower cost compared with stainless steel material.
In order to prevent the statics from short the machine, we add GND connection on this keypad and add proforma coating on both PCB side.


1.It is with alternative interface and for fuel dispenser use, please let us know in advance and we would add GND connection on the PCB.
2.All the PCB was made with proforma coating which mainly anti-statics when use it.
3.The keypad could also be designed with USB interface or RS232, RS485 signal for far distance transmit.



It is mainly for building intercom or fuel dispenser machines.



Technical data

Input Voltage


Waterproof Grade


Actuation Force

250g/2.45N(Pressure point)

Rubber Life

More than 2 million time per key

Key Travel Distance


Working Temperature


Storage Temperature


Relative Humidity


Atmospheric Pressure

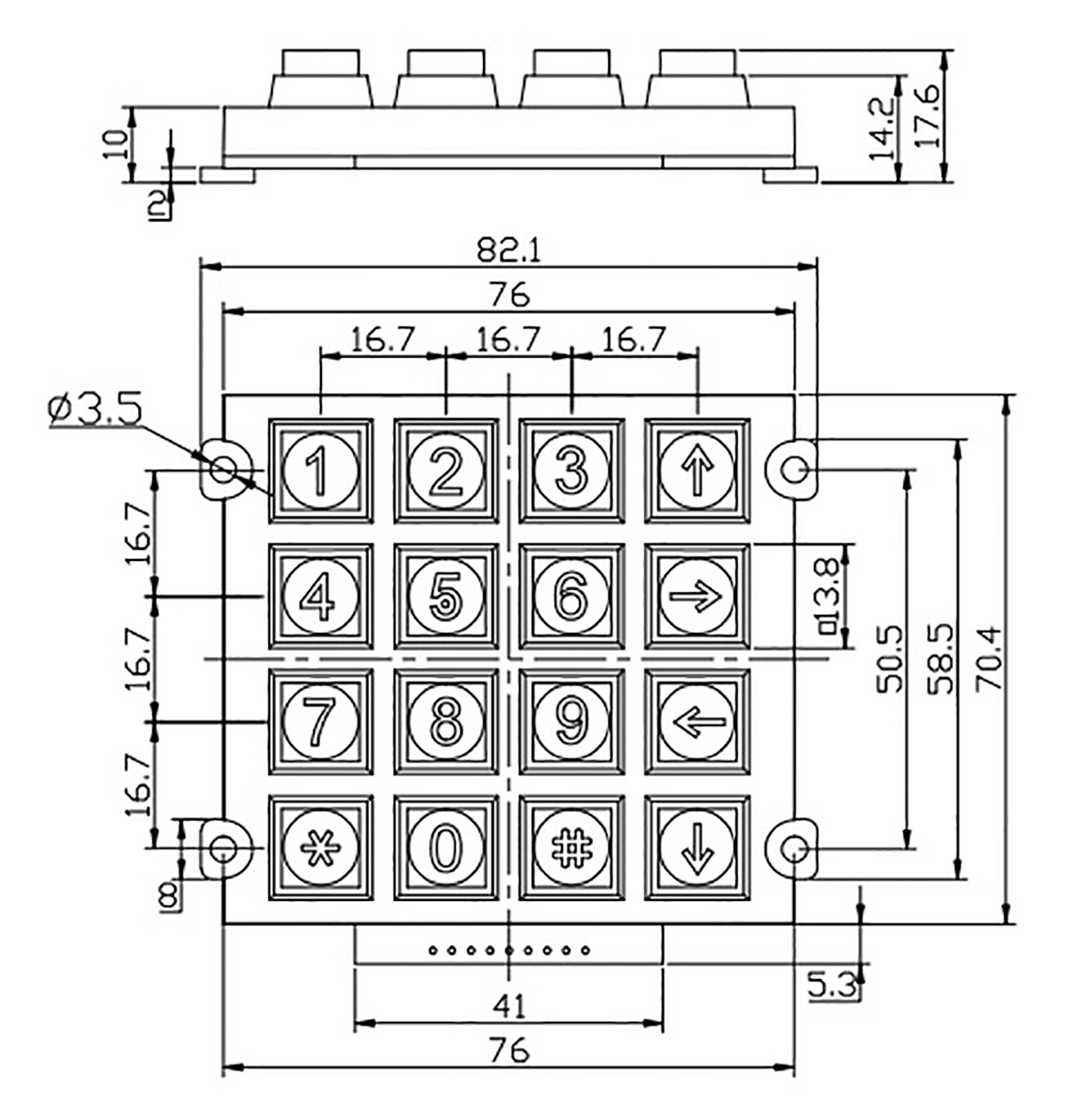

Dimension Drawing


Available Connector

vav (1)

Any appointed connector could be made as customer's request. Let us know the exact item No. in advance.

Test machine


85% spare parts are produced by our own factory and with matched test machines, we could confirm the function and standard directly.
