Joiwo Highway Hands Free Backlit Waterproof Moisture Proof Intercom Speakerphone-JWAT416

Short Description:

The waterproof speakerphone is widely used for Highway, roadside, railway, truck, packing lots, marine, tunnel, etc.

As a Weather Resistant Telephone, it is made of  a  Cold Rolled steel spraying waterproof housing to provide complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MBTF.

Your first-choice provider of innovative communication solutions and competitive products  for the industrial communication.

Product Detail

Product Tags

Product Introduction

This JWAT416V Waterproof Moisture Proof Intercom provides loud-speaking Hand-Free call through the Analog PSTN Line or VOIP Network Line.
The body of the telephone is made of Cold rolled steel ,Vandal Proof which could make a emergency call once press the SOS button.Single or Dual button auto dial options with remote programming.Tamper screws to lock the housing.Ringer Volume could reach 85dB(A) at a distance of 1 m, through connecting the external horn speaker ,Ringer Volume could reach 110dB(A) at a distance of 1 m.
Several versions are available, color customized,with full keypad, without keypad and on request with additional function buttons.
Telephone parts like cradle, handset, keypad,etc are produced by self-made , every parts like keypad ,button,silk ,etc could be customized.


1. Standard Analogue phone. SIP version available.
2. Also available in Analogue/VoIP, GSM/3G version.
3. Robust housing, constructed of Cold rolled steel material.
4. The surface is waterproof and dustproof, with a built-in waterproof speaker.
5. The built-in circuit of the phone has strong anti-interference ability, and the call sound quality is stable and clear.
6. All weather protection IP66.
7. Two vandal-proof metal Backlit buttons, hands-free one-touch dialing, can be used for emergency help
8. Hands-free Operation.Can be programmed remotely by tone phone or locally via keypad.
9. Wall / Pillar mounted, Simple installation.
10. Connection: RJ11/RJ45 screw terminal pair cable.
11. External power supply or PoE (SIP-VoIP).
12. Self-made telephone spare part available.
13. CE, FCC, RoHS, ISO9001 compliant.

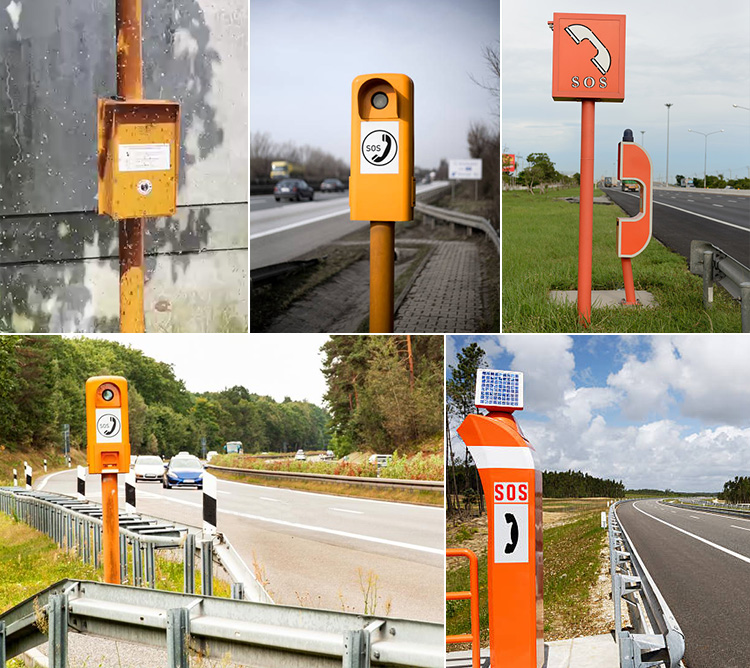

The telephone is a high-tech product that combines the actual needs of expressway sites. It is also widely used in Heavy industry,chemical Plant,Oil&Gas station,tunnel, highway, parking lots, prisons, railway/metro platforms, factory, power plant, mining plant, police stations, university, stadiums, outside building and related industrial application, etc.


Item Technical data
Voltage DC48V or POE or DC12V
Standby Work Current ≤1mA
Frequency Response 300-3400 Hz
Ringer Volume >85dB(A)
Corrosion Grade WF2
Ambient Temperature -40~+70℃
Atmospheric Pressure 80~110KPa
Weight 6kg
Relative Humidity ≤95%
Installation Wall mounted/Pillar mounted

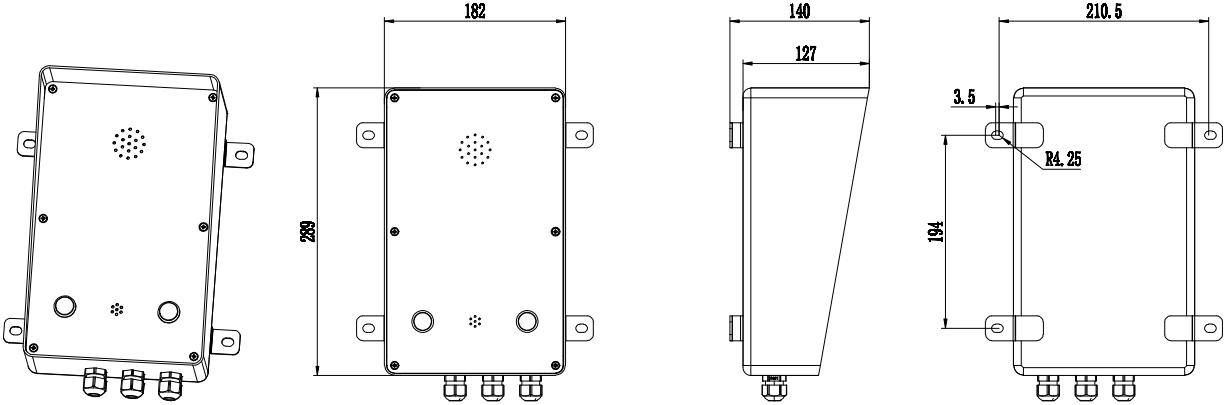

Dimension Drawing

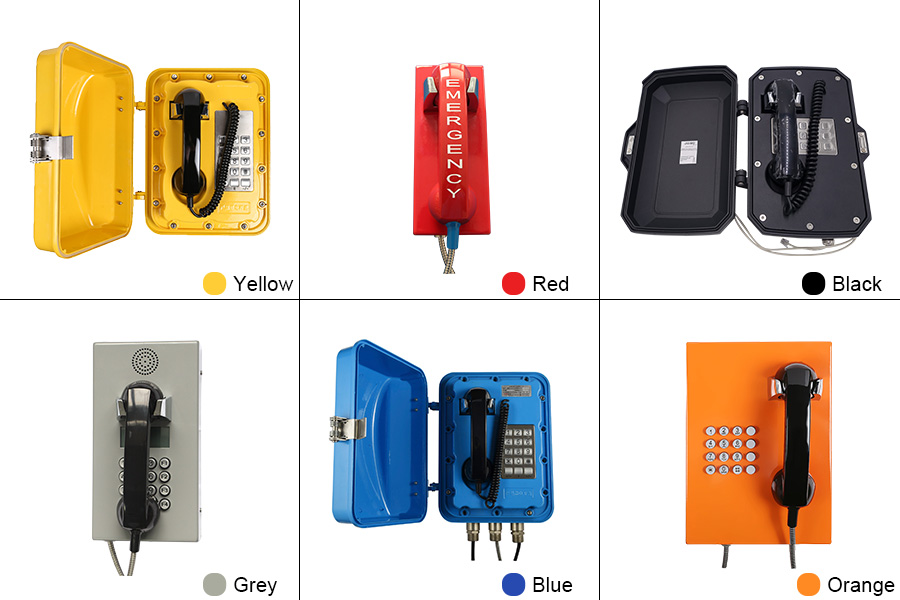

Available color

vav (1)

If you have any color request, let us know the Pantone color No.

Test machine

vav (1)

85% spare parts are produced by our own factory and with matched test machines, we could confirm the function and standard directly.
