cold rolled steel public telephone for public place -JWAT209

Short Description:

This is a kind of public telephone with the protection class IP54,it is a solid case made of cold rolled steel with a powder coated finish for high mechanical strength and impact resistance, a highly reliable product with a long MTBF.The communication Mode is Analogue, IP is also available.

With the production test with many tests like elextroacoustical test,FR test,High&Low temperature test,working life test etc.,each telephone have been waterproof tested and obtain international certificates. We have our own factories with self-made telephone parts，we can provide competitive, quality assurance, after-sale protection of waterproof telephone for you.




Product Detail

Product Tags

Product Introduction

Public Telephone is designed for voice communication in harsh & hostile environment where reliability efficiency and safety are of prime importance.Like in tunnel, marine, railway ,highway,underground,power plant,dock,etc.
The body of the telephone it is made of Cold rolled steel, a very strong material, can be powder coated with diffirent colors,used with generous thicknesses. The degree of protection is IP54,
Several versions are available, with stainless steel armored cord or spiral, with keypad, without keypad and on request with additional function buttons.

Features

1.Cord rolled steel shell, high mechanical strength and strong impact resistance.
2.Standard Analogue phone.
3.Heavy Duty handset with hearing Aid compatible receiver.
4.Weather proof protection to IP65.
5.Strong Zinc Alloy keypad.
6.Auto-dial when handset picked up and the emergency phone number can be set as requested.
7.Wall mounted, Simple installation.
8.Connection: RJ11 screw terminal pair cable.
9.Multiple housings and colors.
11. Self-made telephone spare part available.
12. CE, FCC, RoHS, ISO9001 compliant.

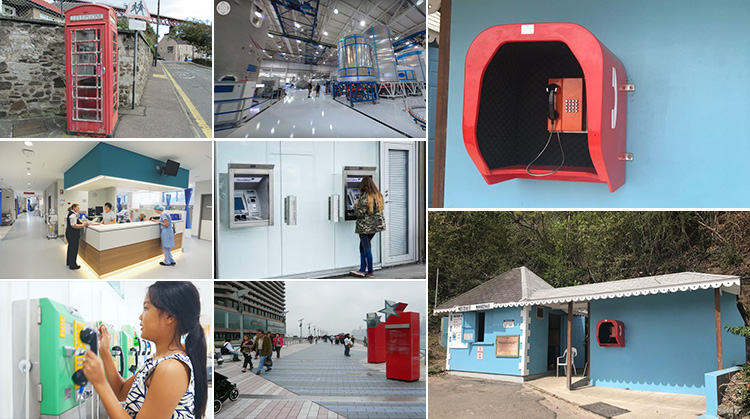

Application

avcasv

This Public Telephone is Ideal for Railway applications, Marine applications, Tunnels. Underground Mining, Firefighter, Industrial, Prisons, Jail, Parking lots, Hospitals, Guard Stations, Police stations, Bank halls, ATM machines, Stadiums, inside and outside building etc.

Parameters

Item Technical data
Power Supply Telephone Line Powered-- DC48V
Standby Work Current ≤1mA
Frequency Response 250～3000 Hz
Ringer Volume ≥80dB(A)
Corrosion Grade WF1
Ambient Temperature -40～+60℃
Atmospheric Pressure 80～110KPa
Relative Humidity ≤95%
Lead Hole 1-PG11
Installation Wall-mounted
Power Supply Telephone Line Powered-- DC48V

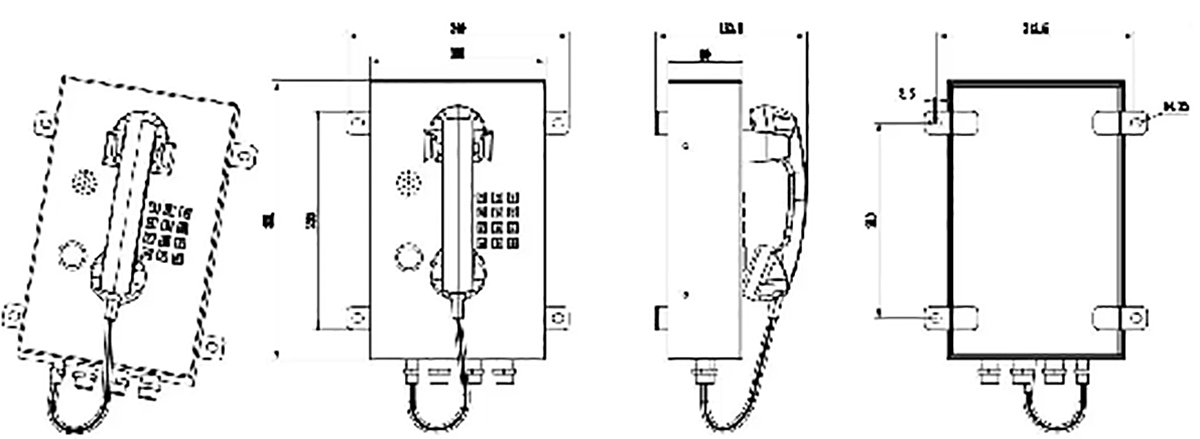

Dimension Drawing

avcasv

Available Connector

ascasc (2)

If you have any color request, let us know the Pantone color No.

Test machine

ascasc (3)

85% spare parts are produced by our own factory and with matched test machines, we could confirm the function and standard directly.
