16 keys matrix atm machine keypad for kiosk B706

Short Description:

The 16 key series keypad is mainy used for atm machines and other public facilities. Stainess steel made is corrosion resistant, which can be wiped with alcohol.

With a professional R&D team in industrial telecommunication filed for 17 years, we could customize handsets, keypads, housings and telephones for different applications.

Product Detail

Product Tags

Product Introduction

The 12 or 16 key S.series keypads are  specially designed for public environment applications, such as vending machines,  ticket machines, payment terminals,  telephones, access control systems and  industrial machinery.


1.16 Keys vandal-proof IP65 stainless steel matrix keypad.10 number keys, 6 function keys.
2.Working life: 1 million cycles of operation per key.
3.Easy to install and maintenance; flush mount.
4.Surface treatment of frame and keys: satin-finished or mirror polish.
5.Connectors:USB, PS / 2, XH socket,PIN,RS232,DB9.


va (2)

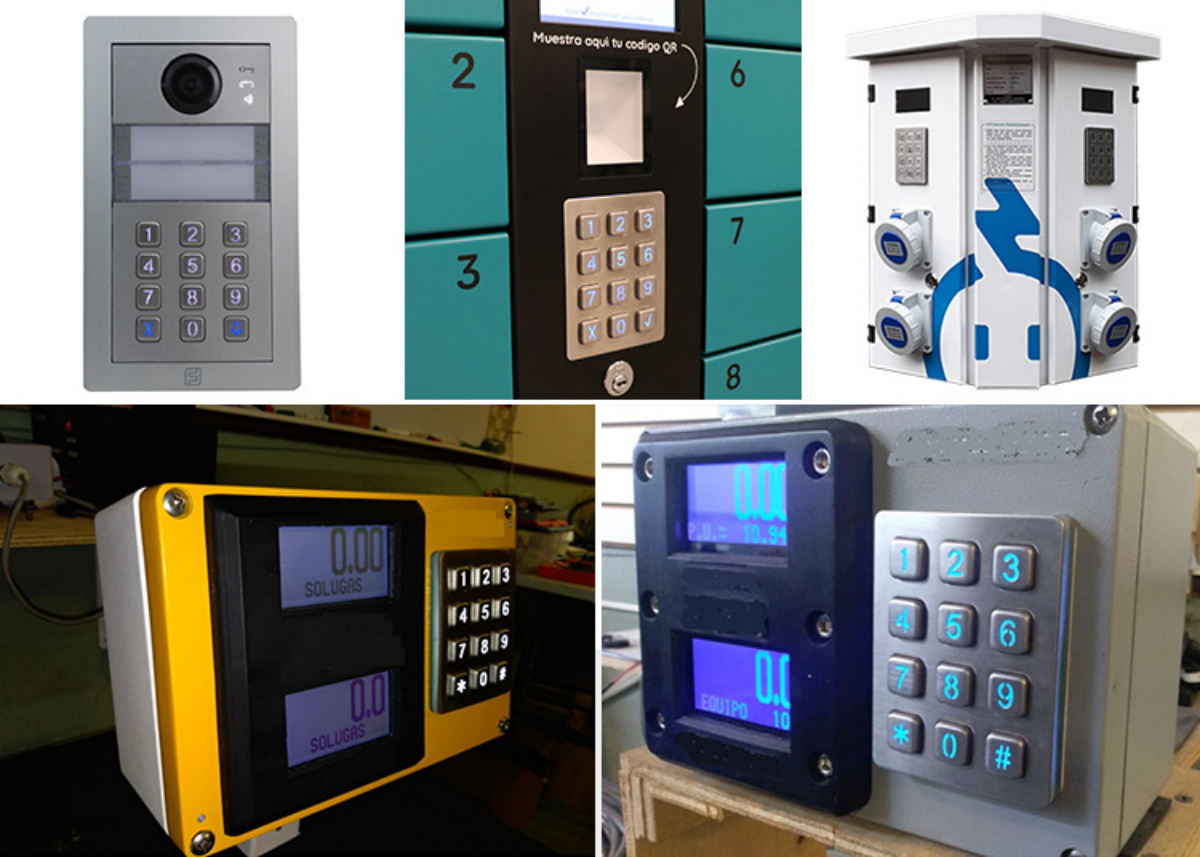

Normally used in public environment applications, such as atm machines, ticket machines, payment terminals.



Technical data

Input Voltage


Waterproof Grade


Actuation Force

250g/2.45N(Pressure point)

Rubber Life

More than 500 thousand cycles

Key Travel Distance


Working Temperature


Storage Temperature


Relative Humidity


Atmospheric Pressure

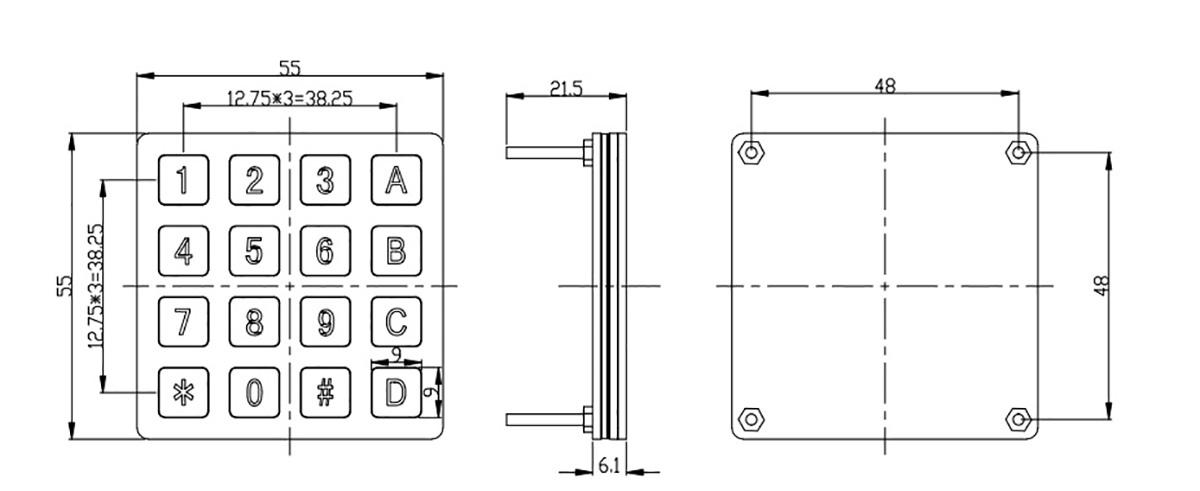

Dimension Drawing


Available Connector

vav (1)

Any appointed connector could be made as customer's request. Let us know the exact item No. in advance.

Test machine


85% spare parts are produced by our own factory and with matched test machines, we could confirm the function and standard directly.
