Mini Size Elevator Point To Point Emergency Help door Audio Intercom Telephone

Short Description:

JWAT413 Rugged door audio Intercom consists of SUS 304 stainless steel and equipped with a waterproof metal button for help dialing.Wiring in the back of the telephone, so that the phone looks beautiful and exquisite. Analog Type /Voip Type /GSM Type optional.

Further, can install the camera to make a Video call according to the user’s demand, to enhances the security.

The perfect intercom for every situation – whether in security, business, emergency or any other special area. Ningbo Joiwo provides customers with simple applications ranging from a single analog or IP phone with clear and easy connection, to a comprehensive communication system integrated into security and signaling systems and program-controlled switches or IP PBX, servers.

With a professional R&D team in industrial telecommunication solution filed since 2005 Year, Each Intercom Telephone have been passed the FCC,CE international certificates. Having the highest quality, certification and ensures compatibility with industry-standard-based IP network solutions .

Your first-choice provider of innovative communication solutions and competitive products  for the industrial communication.

Product Detail

Product Tags

Product Introduction

This JWAT413 Emergency door audio Intercom provides hands-free loudspeaking communication through the existing Analog Telephone line or VOIP network and is suitable for a sterile environment.
The body of the telephone is made of SUS304 stainless steel material ,Vandal resistant,Indicator light SOS button optional. Top have a proof to avoid water.Single or Dual button auto dial options with  remote programming.It have 1 set of short-circuit input and output to make the security function,tamper alarm server setting.
Several versions are available, color customized,with keypad, without keypad and on request with additional function buttons.
Telephone parts is produced by self-made , every parts like keypad could be customized.


1.Standard Analogue phone. SIP version available.
2.Robust housing, Robust housing, constructed of 304 stainless steel material.
3.Vandal resistant stainless buttons. LED indicator for button optional.
4.All weather protection IP54 to IP65.
5. One button for emergency call.
6.Camera Function optional.
7.Hands-free Operation.
8.Flush mounted.
9.Connection: RJ11 screw terminal pair cable.
10.Self-made telephone spare part available.
11.CE, FCC, RoHS, ISO9001 compliant.



JWAT413 Multi-function Intercom will be more commonly used in Food Factory, Clean room, Laboratory, Hospital Isolation areas, Sterile areas, and other restricted environments. Also available for Elevators/Lifts, Parking lots, Prisons, Railway/Metro platforms, Hospitals, Police stations, ATM machines, Stadiums, Campus, Shopping malls, Doors, Hotels, outside building etc.
A speed dial of the telephone helps the user to call for help to the help center in time, making the help convenient and quick.


Item Technical data
Power Supply Telephone Line Powered
Voltage DC48V/DC5V 1A
Standby Work Current ≤1mA
Frequency Response 250~3000 Hz
Ringer Volume >85dB(A)
Corrosion Grade WF2
Ambient Temperature -40~+70℃
Anti-vandalism Level Ik10
Atmospheric Pressure 80~110KPa
Weight 2kg
Relative Humidity ≤95%
Installation Wall mounted

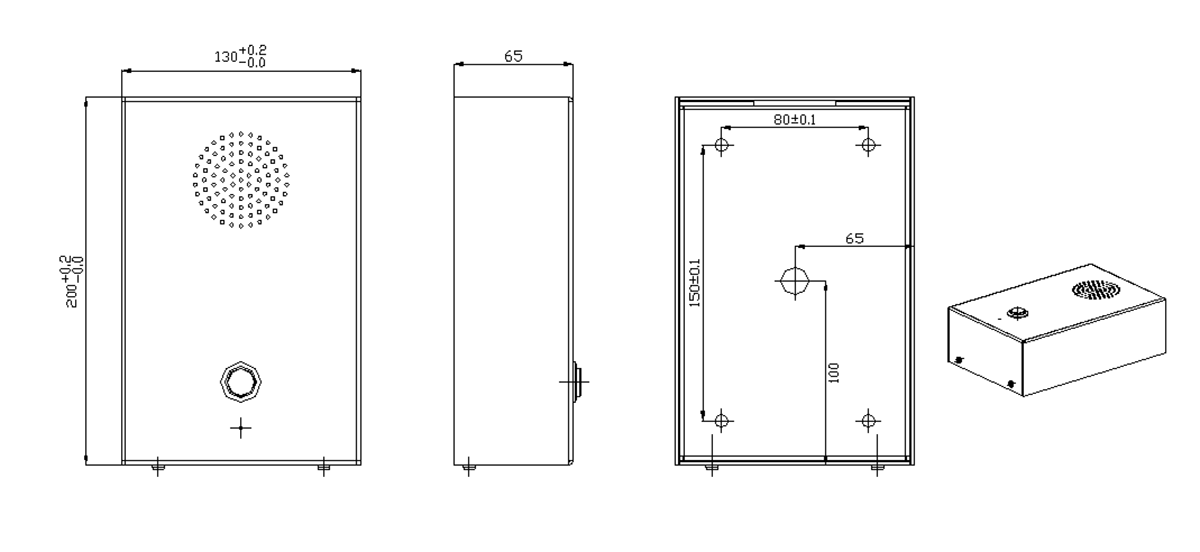

Dimension Drawing


Available Connector

ascasc (2)

If you have any color request, let us know the Pantone color No.

Test machine

ascasc (3)

85% spare parts are produced by our own factory and with matched test machines, we could confirm the function and standard directly.
