Industrial Voip 4G GSM Wireless Telephone Highway Roadside Solar Intercom Call Box -JWAT414

Short Description:

The weatherproof highway call box  is rugged , durable,weatherproof , dustproof and moisture-resistant. Special sealing design can ensure complete waterproof defend grade up to IP66.  The Highway call box widely used in expressway and outdoor. Most expressway,railway project need install IP66 telephone for emergency communication. Solar powered highway emergency call box work as 911 call box for freeway assistance.

.JWAT414 Rugged Highway Roadside Solar Station Call Box consists of SUS 304 stainless steel as well as cold rolled steel and equipped with a waterproof metal button for help dialing. Analog Type /Voip Type /GSM Type optional.

With a professional R&D team in industrial telecommunication solution filed since 2005 Year, Each Intercom Telephone have been passed the FCC,CE international certificates. Having the highest quality, certification and ensures compatibility with industry-standard-based IP network solutions .

Your first-choice provider of innovative communication solutions and competitive products  for the industrial highway communication.




Product Detail

Product Tags

Product Introduction

This JWAT414 Highway Roadside Solar Station Call Box Intercom provides hands-free loudspeaking communication through the existing Analog Telephone line or VOIP network and is suitable for a sterile environment.
The body of the telephone is made of Cold rolled steel (SUS304 stainless steel material Optional) ,Vandal resistant,Indicator light SOS button optional. Top have a proof to avoid water and sunlight.Single or Dual button auto dial options with  remote programming.
Several versions are available, color customized,with keypad, without keypad and on request with additional function buttons.
Telephone parts is produced by self-made , every parts like keypad could be customized.

Features

1.Standard Analogue phone. SIP version available.
2.Robust housing, Robust housing, constructed of Cold rolled steel material.
3.Vandal resistant stainless buttons.
4.All weather protection IP65.
5. One button for emergency call.
6.Hands-free Operation.
8.Flush mounted.
9.Connection: RJ11 screw terminal pair cable.
10.Self-made telephone spare part available.
11.CE, FCC, RoHS, ISO9001 compliant.

4G Type Function

1. Hands-free function, built-in 2W power amplifier, adjustable volume;
2. Handle mode, volume adjustable;
3. Incoming call ringing;
4. Automatic answering of incoming calls, which can be set to answer automatically after ringing 1-7 times;
5.LCD display screen function: can display time, date, operator information, ambient temperature, battery power, charging status, signal strength, incoming and outgoing call numbers
6. Alarm Function: Handset vandalism;
Case tamper alarm;
Motherboard removal alarm;
Horn microphone failure alarm;
Horn microphone failure alarm;
Hands-free button failure alarm
7. Fault clearing alarm SMS confirmation.
8. Full keyboard design, support 4*5 keyboards, including number keys, *, #, up, down, confirmation, return, four speed dial function keys;
9. Independent design of hands-free button;
10. On-hook automatic dialing function (emergency numbers need to be set, there are 3 groups in total, if the previous group fails to get through, the next group will be dialed in turn);
11. 4 groups of one-key speed dialing;
12. Phone status indicators (network and power-on indicators);
13. Solar charging function;
14. Adapter charging function;
15. External dome antenna;
16. Keyboard programmable function;
17. Button prompt sound;
18. Remote SMS programmable function;
19. The keyboard menu can be set;
20. SMS query phone status function, which can be manually checked or sent automatically at regular intervals.

Application

aV (1)

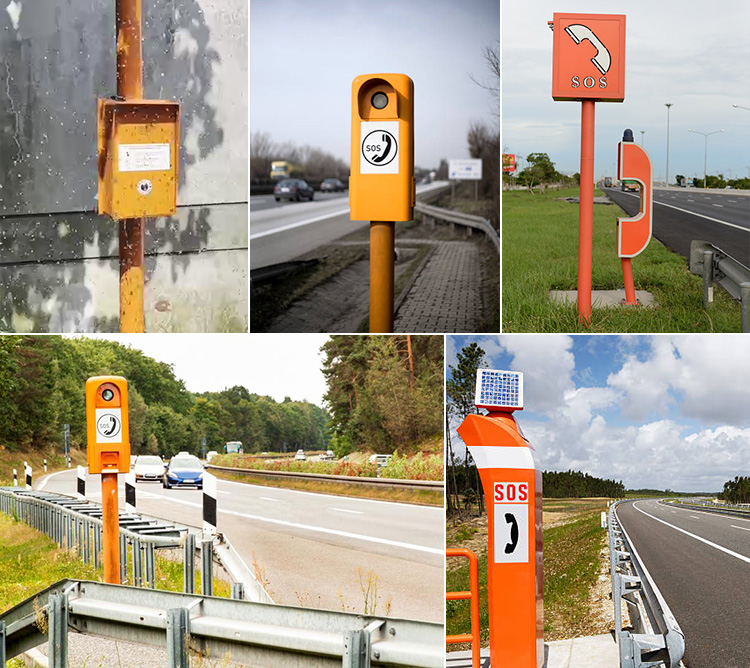

Highway Call Box suitable for Highway side use, other than that, it is often used at university and college campuses, streets, public square, car-parks, police stations, outside buildings, shopping malls, industrial areas and remote areas.

Parameters

Item Technical data
Power Supply Telephone Line Powered
Voltage DC48V/DC12V
Standby Work Current ≤1mA
Frequency Response 250~3000 Hz
Ringer Volume >85dB(A)
Corrosion Grade WF2
Ambient Temperature -40~+70℃
Anti-vandalism Level Ik10
Atmospheric Pressure 80~110KPa
Weight 6kg
Relative Humidity ≤95%
Installation Wall mounted

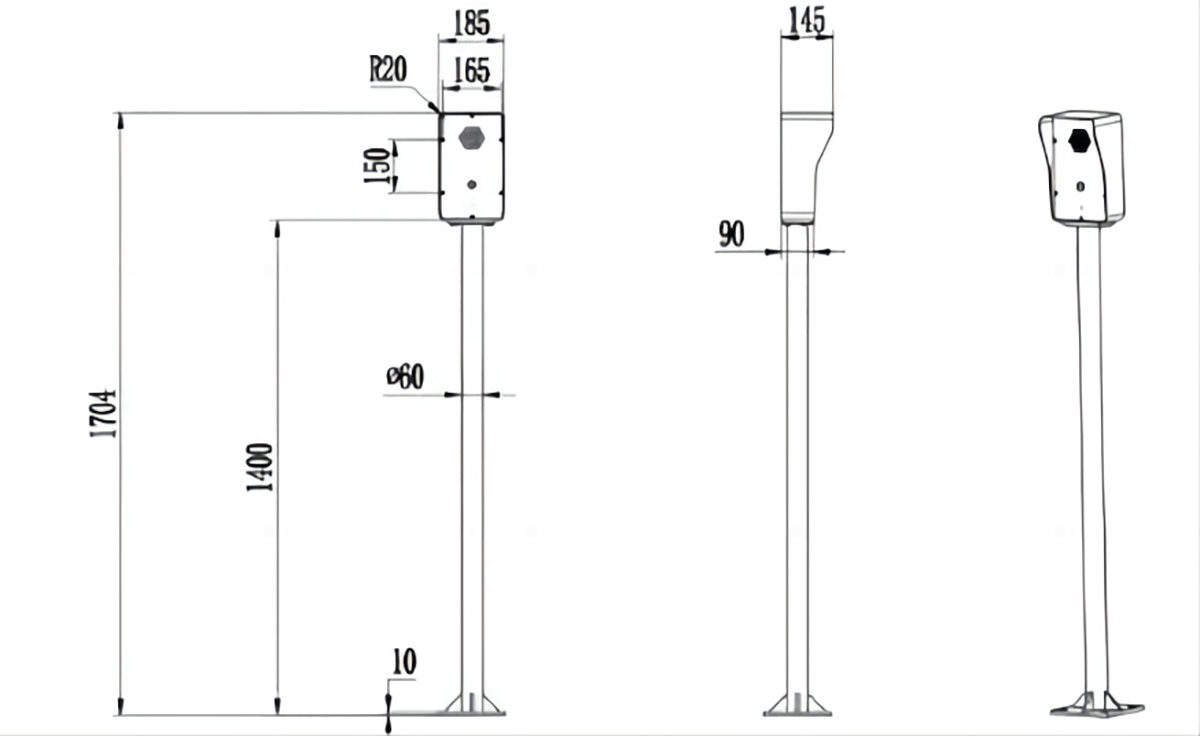

Dimension Drawing

aV (2)

Available Connector

ascasc (2)

If you have any color request, let us know the Pantone color No.

Test machine

ascasc (3)

85% spare parts are produced by our own factory and with matched test machines, we could confirm the function and standard directly.
