Industrial Weatherproof IP Telephone With beacon light and loudspeaker for Tunnel Project-JWAT910

Short Description:

To reduce environmental damage to the phone, the waterproof phone uses a metal weatherproof casing. The robust casing may shield the phone from harm. The waterproof level exceeds IP66, and the airtightness is good. In regular outside conditions, it may be utilized.

Each weatherproof telephone has passed the waterproofness and has got international standard certifications ,and equipped with skilled R&D team working in the industrial telecommunications sector since 2005. We have a strong team provide wholehearted service to customer at any time.We can provide you a cost-effective, quality-assured, after-sale protection of a waterproof telephone since we have our own factories with self-made telephone parts.




Product Detail

Product Tags

Product Introduction

The body of the telephone it is made of Aluminum alloy, a very strong die-casting material, used with generous thicknesses. The degree of protection is IP67, even with the door open. The door participates in keeping the inside parts like handset and keypad clean.
The waterproof phone is an emergency phone designed primarily for use in outdoor industries.
The Asia's Most Professional telephone Manufacturer! A waterproof phone manufactured of aluminum alloy via die casting is used in tunnels.

Features

1.Aluminum alloy die-casting shell, high mechanical strength and strong impact resistance.
2. Heavy Duty handset with hearing Aid compatible receiver, Noise canceling microphone.
3. Illuminated Stainless Steel Keypad.Buttons may be configured to operate as SOS, repeat, etc. buttons.
4. Support 2 lines SIP, SIP 2.0 (RFC3261).
5. Audio Codes:G.711, G.722, G.729.
6. IP Protocols:IPv4, TCP, UDP, TFTP, RTP, RTCP, DHCP, SIP.
7. Echo cancellation code:G.167/G.168.
8. Supports full duplex.
9. WAN/LAN: support Bridge mode.
10.Support DHCP get IP on WAN port.
11.Support PPPoE for xDSL.
12.Support DHCP get IP on WAN port.
13.Weather proof Protection class to IP67.
14.With 15-25W horn loudspeaker and DC12V flash light.
15.Wall mounted, Simple installation.
16.The available colors as an option.
17. Self-made telephone spare part available. 19. CE, FCC, RoHS, ISO9001 compliant.

Application

bvswbsb

This Weatherproof Telephone Is Very Popular For Tunnels, Mining, Marine, Underground, Metro Stations, Railway Platform, Highway Side, Parking Lots, Steel Plants, Chemical Plants, Power Plants And Related Heavy Duty Industrial Application, Etc.

Parameters

Item Technical data
Signal Voltage 100-230VAC
Standby Work Current ≤0.2A
Frequency Response 250～3000 Hz
Amplified Output Power 10～25W
Corrosion Grade WF1
Ambient Temperature -40～+70℃
Atmospheric Pressure 80～110KPa
Relative Humidity ≤95%
Cable Gland 3-PG11
Installation Wall-mounted
Signal Voltage 100-230VAC

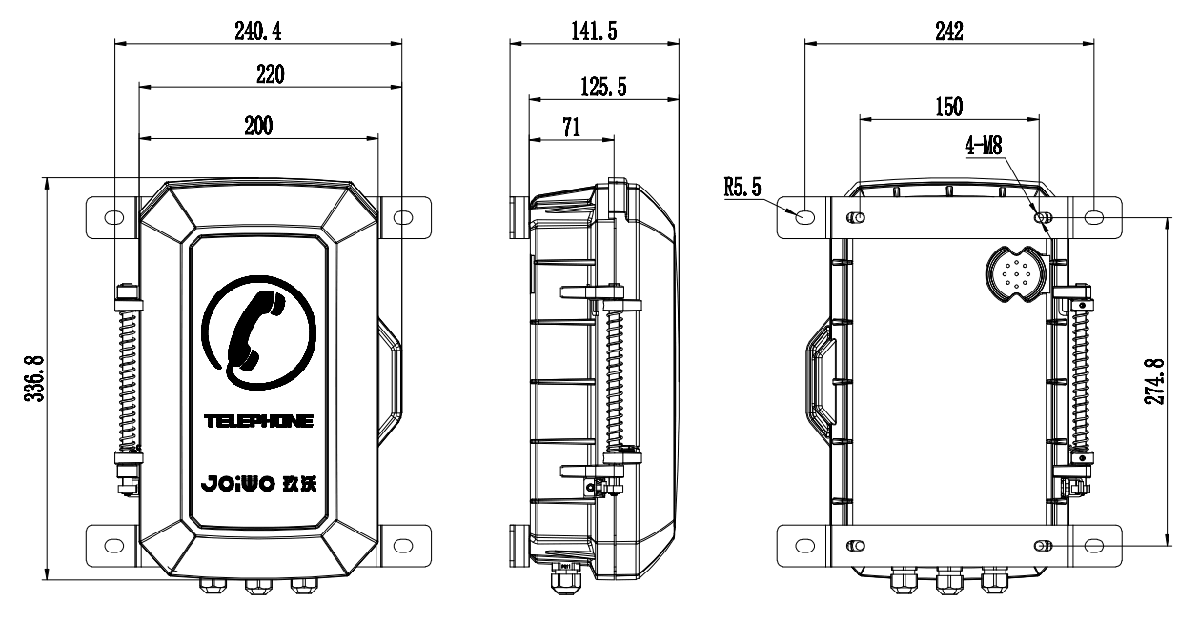

Dimension Drawing

avavba

Available Connector

ascasc (2)

If you have any color request, let us know the Pantone color No.

Test machine

ascasc (3)

85% spare parts are produced by our own factory and with matched test machines, we could confirm the function and standard directly.
