Industrial Weatherproof VOIP Intercom Phone for Construction Communications-JWAT407

Short Description:

It is an industrial weatherproof phone with a solid case made of cold rolled steel with a powder coated finish for high mechanical strength and impact resistance, a highly reliable product with a long MTBF.

Since 2005, we have a professional sales team in the field of industrial telecommunications. We recommend suitable industrial phones for customers according to detailed application requirements and detailed needs. OEM customization service welcomes your inquiry 24 hours a day, good delivery time, quality and after-sales service is your best choice


Product Detail

Product Tags

Product Introduction

Weatherproof Intercom Phone is designed for voice communication in harsh & hostile environment where reliability efficiency and safety are of prime importance.Like Transpotation Communications in tunnel, marine, railway ,highway,underground,power plant,dock,etc.
The body of the telephone it is made of Cold rolled steel, a very strong material, can be powder coated with diffirent colors,used with generous thicknesses. The degree of protection is IP67,
Several versions are available, with stainless steel armored cord or spiral, with keypad, without keypad and on request with additional function buttons. Also we have the model with camera if needed.


1.Standard SIP 2.0 telephone.
2.Robust housing, Aluminum alloy die-casting body.
3. Rolled steel face-plate with epoxy powder coated providing complete protection against dust and moisture.
4.Vandal resistant stainless buttons.
5.All weather protection IP66-67.
6. One button for speed dial.
7.Horn & Lamp on the top is available.
8. Support G.711 A/U, G.722 8000/16000, G.723, G.729.
9.WAN/LAN: support Bridge mode.
10.Support DHCP get IP on WAN port.
11.Support PPPoE for xDSL.
12.Support DHCP get IP on WAN port.
13.Temperature: Operating: -30°C to +65°C Storing: -40°C to +75°C.
14.With external power supply, sound level is more than 80db.
15.Hands-free Operation.
16.Wall mounted.
17.Self-made telephone spare part available.
18.CE, FCC, RoHS, ISO9001 compliant.

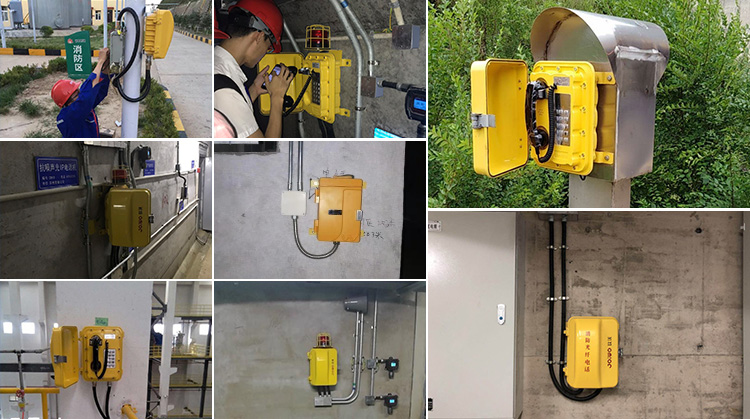

This Weatherproof Intercom Phone Is Very Popular For Construction Communications,Tunnels, Mining, Marine, Underground, Metro Stations, Railway Platform, Highway Side, Parking Lots, Steel Plants, Chemical Plants, Power Plants And Related Heavy Duty Industrial Application, Etc.


Item Technical data
Power Supply  POE or 12VDC
Standby Work Current ≤1mA
Frequency Response 250~3000 Hz
Ringer Volume ≤90dB(A)
Corrosion Grade WF2
Ambient Temperature -40~+70℃
Atmospheric Pressure 80~110KPa
Relative Humidity ≤95%
Anti-vandalism Level IK09
Installation Wall-mounted
Power Supply  POE or 12VDC

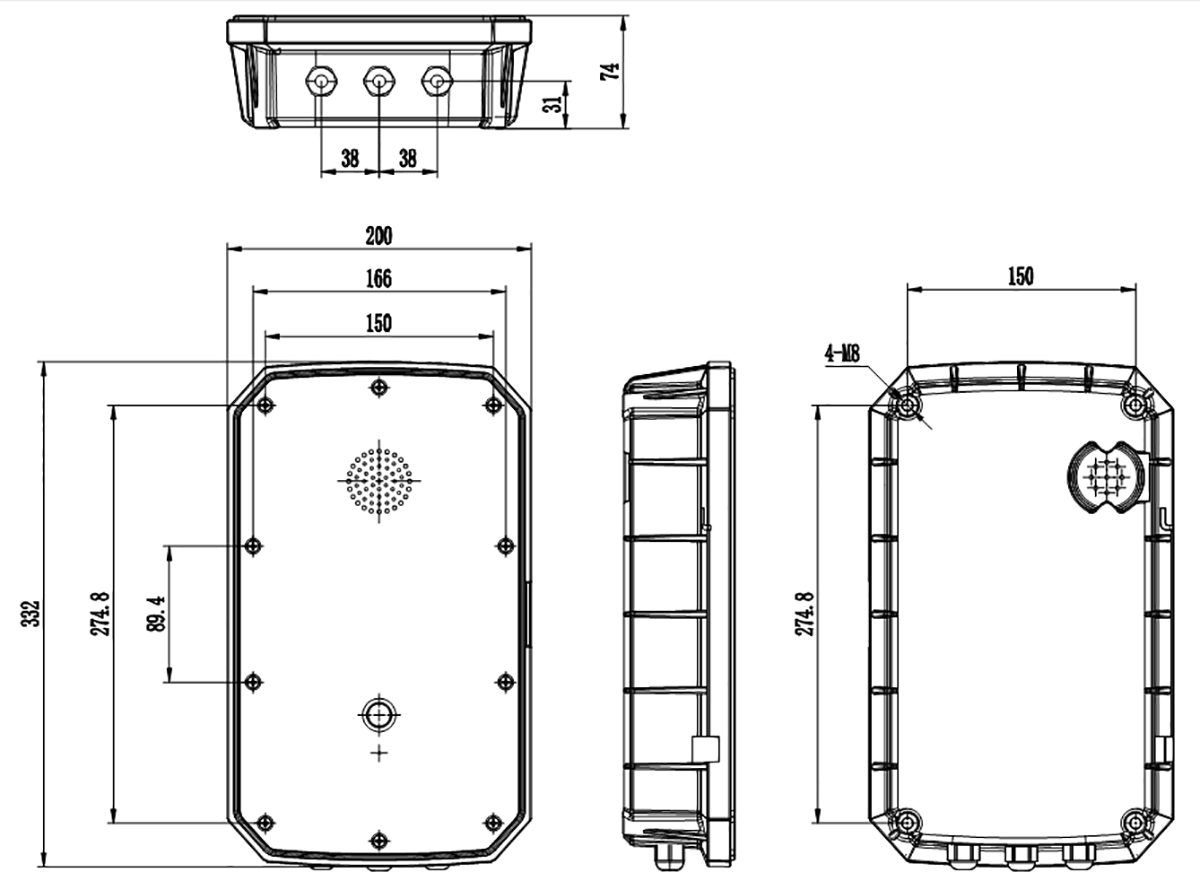

Dimension Drawing


Available Connector

ascasc (2)

If you have any color request, let us know the Pantone color No.

Test machine

ascasc (3)

85% spare parts are produced by our own factory and with matched test machines, we could confirm the function and standard directly.
