Industrial Yellow Box Fixed Outdoor Transit Public SOS Emergency Telephone for Railway-JWAT408

Short Description:

The Joiwo Telephone is an advanced protected telephone suitable for harsh and demanding environments. Ideal for police stations, prisons, tunnels, sports stadiums, under ground stations and car parks.

The Telephone is equipped with an aluminium body and watertight glands which help protect it against adverse weather conditions and potential vandalism.

With a professional R&D team in industrial telecommunication solution filed since 2005 Year, Each Intercom Telephone have been passed the FCC,CE international certificates.

Your first-choice provider of innovative communication solutions and competitive products  for the industrial communication.


Product Detail

Product Tags

Product Introduction

This JWAT408SOS Emergency Telephone Intercom provides hands-free communication through the existing Analog Telephone line or VOIP network and is suitable for a sterile environment.
The body of the telephone is made of Aluminum alloy material ,Vandal resistant,With Two button which could make a programmed call.
Several versions are available, color customized,with keypad, without keypad and on request with additional function buttons.
Telephone parts is produced by self-made , every parts like keypad could be customized.


1.Standard Analogue phone. SIP version available.
2.Robust housing, Aluminum alloy die-casting body.
3. Rolled steel face-plate with epoxy powder coated providing complete protection against dust and moisture.
4.Vandal resistant stainless buttons. LED indicator for incoming call.
5.All weather protection IP66-67.
6. One button for speed dial.One button for speaker.
7.Horn & Lamp on the top is available.
8. With external power supply, sound level could reach more than 90db.
9.Hands-free Operation.
10.Wall mounted.
11.Self-made telephone spare part available.
12.CE, FCC, RoHS, ISO9001 compliant


avavba (1)

The Intercom usually used in Food Factory, Clean room, Laboratory, Hospital Isolation areas, Sterile areas, and other restricted environments. Also available for Elevators/Lifts, Parking lots, Prisons, Railway/Metro platforms, Hospitals, Police stations, ATM machines, Stadiums, Campus, Shopping malls, Doors, Hotels, outside building etc.


Item Technical data
Power Supply Telephone Line Powered
Voltage DC48V
Standby Work Current ≤1mA
Frequency Response 250~3000 Hz
Ringer Volume >85dB(A)
Corrosion Grade WF1
Ambient Temperature -40~+70℃
Anti-vandalism Level Ik10
Atmospheric Pressure 80~110KPa
Weight 6kg
Lead hole 1-PG11
Relative Humidity ≤95%
Installation Wall mounted

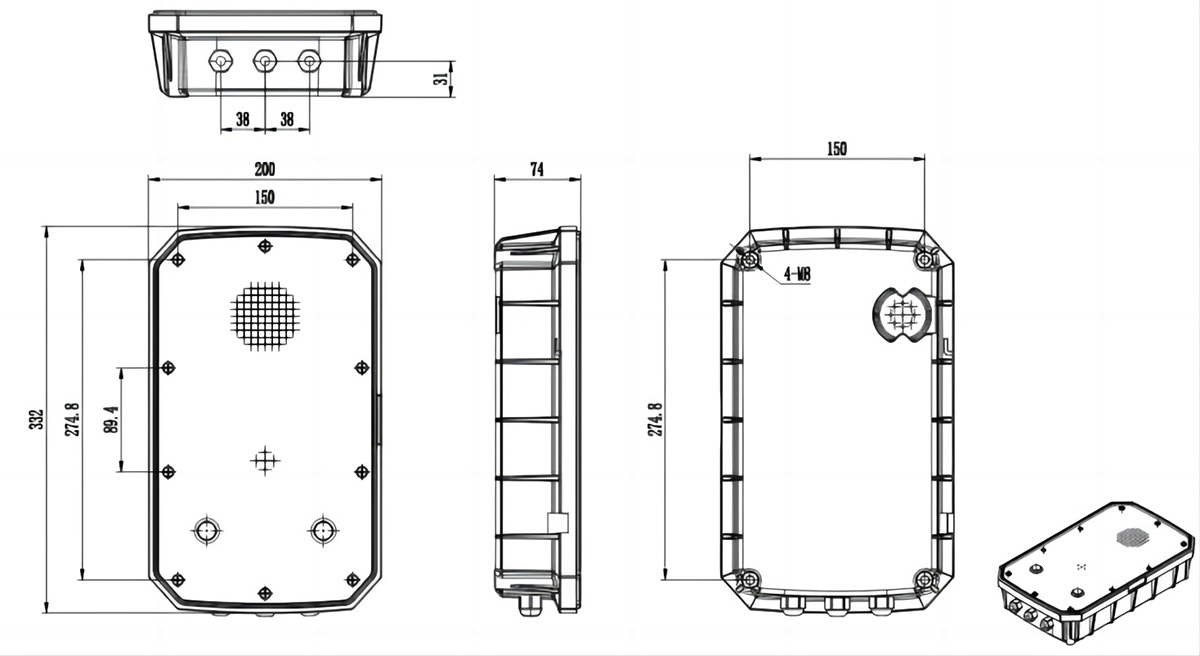

Dimension Drawing

avavba (2)

Available Connector

ascasc (2)

If you have any color request, let us know the Pantone color No.

Test machine

ascasc (3)

85% spare parts are produced by our own factory and with matched test machines, we could confirm the function and standard directly.
