PABX System Speakerphone SOS Emergency Telephone Intercom For Elevator

Short Description:

The emergency telephones are vandal and weather resistant, providing hands-free loud-speaking communications for elevator ,clean room,control room,etc,.

Joiwo Intercom Speakerphone Telephones featured vandal resistant, steel material, IP54-IP65 waterproof defend grade which could be installed on indoor or outdoor , Easy to clean,high corrosion resistant, high mechanical strength and strong impact resistance.

With a professional R&D team in industrial telecommunication solution filed since 2005 Year, Each Intercom Telephone have been passed the FCC,CE international certificates.

Your first-choice provider of innovative communication solutions and competitive products  for the Safety and Emergency communication.


Product Detail

Product Tags

Product Introduction

Handsfree telephone JWAT402 is the ideal choice for a Clean room or elevator environment with a surface design that allows you to make calls without trapping or discarding particles. The dust-free room phone provides hands-free communication through the existing analog or VOIP network and is suitable for a sterile environment.
This kind telephone adopts the latest technological design of clean and sterile room telephone terminal. Ensure that there is no gap or hole on the surface of the equipment, and there is basically no convex design on the installation surface.
The body of the telephone is made of SUS304 stainless steel,  it is easily decontaminated by washing with detergents and bactericidal preparations.The cable entrance is on the back of the phone to prevent from artificial damage.
Several versions are available, color customized,with keypad, without keypad and on request with additional function buttons.
Telephone parts is produced by self-made , every parts like keypad could be customized.

Features

1.Traditional analog phone.There is a SIP version available.
2.Sturdy housing made of 304 stainless steel.
3.4 X Tamper-resistant mounting screws
Hands-free operation.
5.A stainless steel keypad that is resistant against vandalism.One is the speaker button, while the other is the speed dial button.
6.Flush Installation.
7.Defend Grade protection IP54-IP65 in accordance with the various water proof requirements.
8.RJ11 screw terminal pair cable is used for connecting.
9.A self-made phone spare part is available.
10.Compliant with CE, FCC, RoHS, and ISO9001.

Application

VAV

The Intercom usually used in Clean room, Laboratory, Hospital Isolation areas, Sterile areas, and other restricted environments. Also available for Elevators/Lifts, Parking lots, Prisons, Railway/Metro platforms, Hospitals, Police stations, ATM machines, Stadiums, Campus, Shopping malls, Doors, Hotels, outside building etc.

Parameters

Item Technical data
Power Supply Telephone Line Powered
Voltage DC48V
Standby Work Current ≤1mA
Frequency Response 250~3000 Hz
Ringer Volume >85dB(A)
Corrosion Grade WF2
Ambient Temperature -40~+70℃
Anti-vandalism Level IK9
Atmospheric Pressure 80~110KPa
Weight 2kg
Relative Humidity ≤95%
Installation Embedded

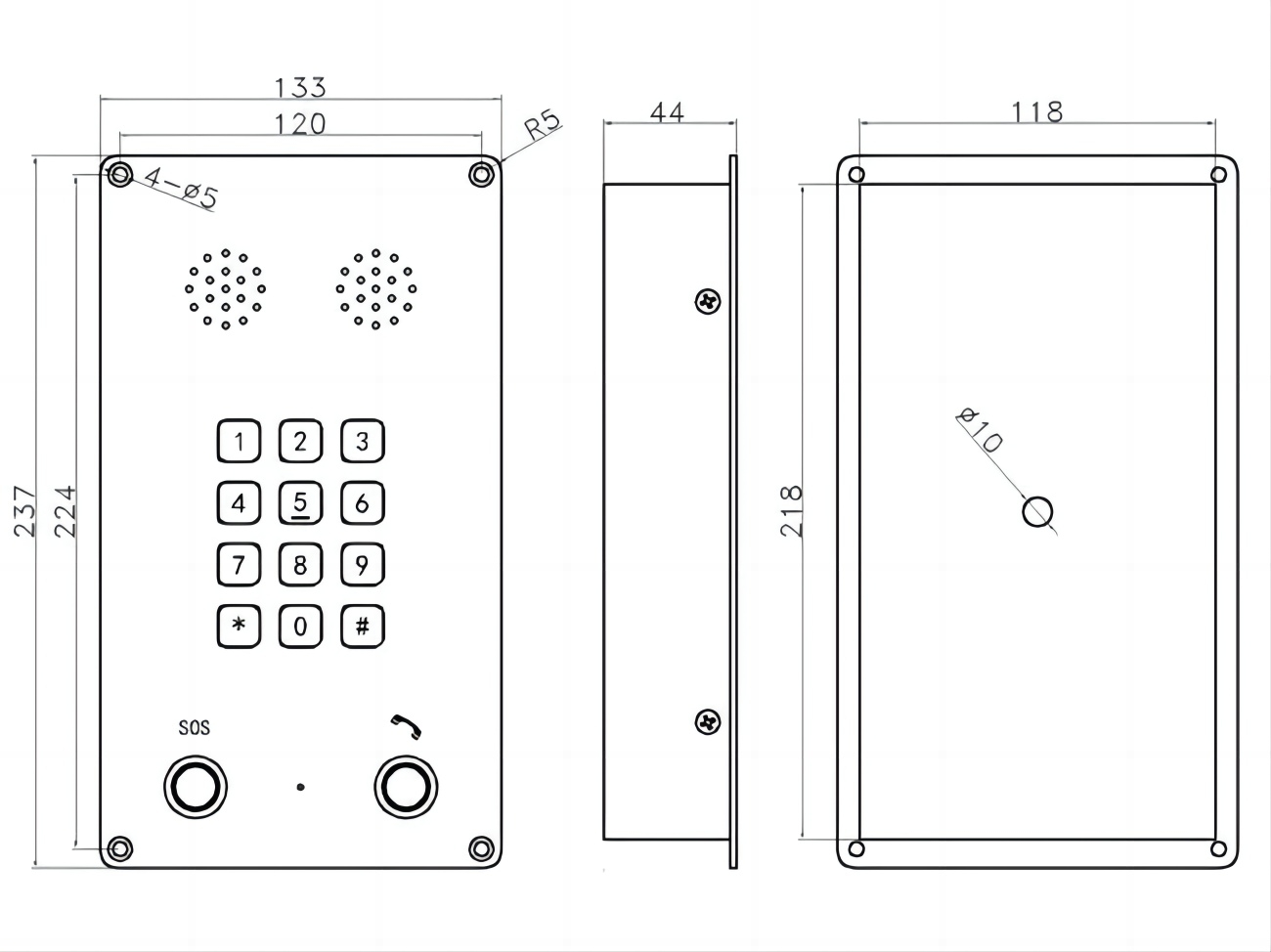

Dimension Drawing

VAV

Available Connector

ascasc (2)

If you have any color request, let us know the Pantone color No.

Test machine

ascasc (3)

85% spare parts are produced by our own factory and with matched test machines, we could confirm the function and standard directly.
