Industrial Weatherproof IP Telephone for Construction Project-JWAT702

Short Description:

It is an industrial weatherproof telephone which is fully contained within a corrosion resistant cast aluminium alloy waterproof case.With a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.

With a professional R&D team in industrial telecommunication filed since 2005 Year, Each weatherproof telephone have been waterproof tested and obtain international certificates. We have our own factories with self-made telephone parts，we can provide competitive, quality assurance, after-sale protection of weatherproof telephone for you.




Product Detail

Product Tags

Product Introduction

Weatherproof Telephone is designed for voice communication in harsh & hostile environment where reliability efficiency and safety are of prime importance.Like tunnel, marine, railway ,highway,underground,power plant,dock,etc.
The body of the telephone it is made of Aluminum alloy, a very strong die-casting material, used with generous thicknesses. The degree of protection is IP67, even with the door open. The door participates in keeping the inside parts like handset and keypad clean.
Several versions are available, with stainless steel armored cord or spiral, with or without door, with keypad, without keypad and on request with additional function buttons.

Features

1.Strong system expansion compatibility, supporting standard SIP 2.0 (RFC3261) and related RFC protocols;
2.Supports one-button direct call dispatching station function; three function keys can be arbitrarily set
3.The patented design of the phone casing is waterproof and dustproof, no need waterproof cover , beautiful and practical.
4.Aluminum alloy die-casting shell, high mechanical strength and strong impact resistance.
5.The surface of the shell is sprayed with high-temperature static electricity, which has good antistatic ability and eye-catching colors.
6.Temperature: Operating: -30°C to +65°C Storing: -40°C to +75°C.
7.The available colors as an option.
8.Self-made telephone spare part available.
9.CE, FCC, RoHS, ISO9001 compliant.

Application

bvswbsb

This Weatherproof Telephone Is Very Popular For Tunnels, Mining, Marine, Underground, Metro Stations, Railway Platform, Highway Side, Parking Lots, Steel Plants, Chemical Plants, Power Plants And Related Heavy Duty Industrial Application, Etc.

Parameters

Item Technical data
Communication Protocol SIP 2.0(RFC-3261)
Audio Amplifier 2.4W
Audio Speakers 2W
Volume Adjustable
Supporting Agreement RTP
Codec G.729、G.723、G.711、G.722、G.726
Power Supply 12V (± 15%) / 1A DC or PoE
LAN 10/100BASE-TX s Auto-MDIX, RJ-45
WAN 10/100BASE-TX s Auto-MDIX, RJ-45
Installation Wall-mounted
Communication Protocol SIP 2.0(RFC-3261)

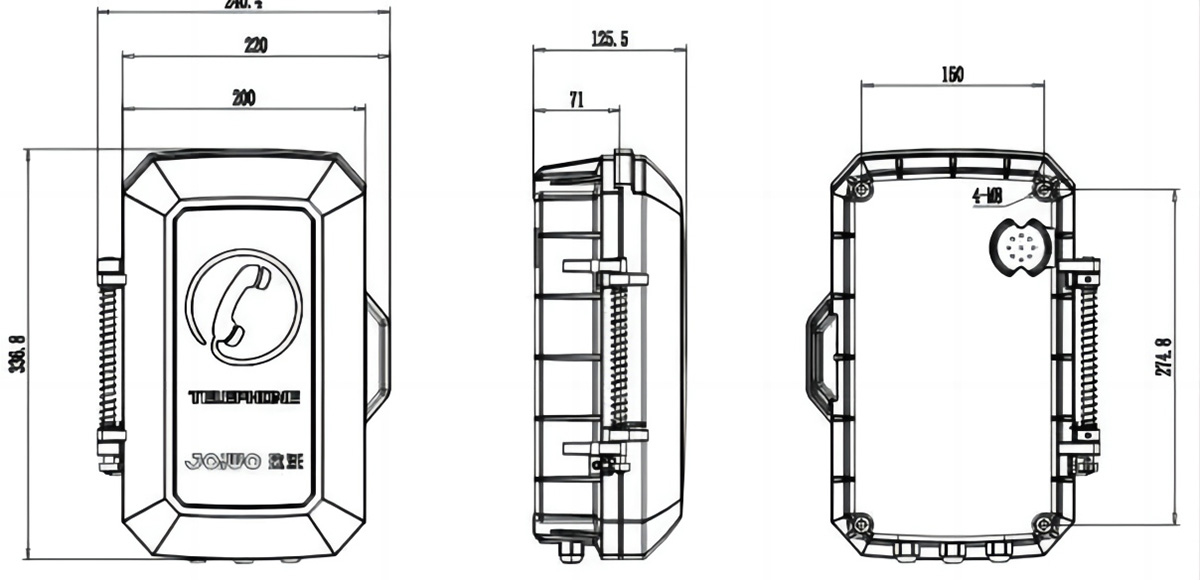

Dimension Drawing

dsbsbsb

Available Connector

ascasc (2)

If you have any color request, let us know the Pantone color No.

Test machine

ascasc (3)

85% spare parts are produced by our own factory and with matched test machines, we could confirm the function and standard directly.
