Industrial stainless steel keypad for gas station IP67 waterproof grade B770

Short Description:

This keypad is designed for gas station and fuel dispenser with ESD safe PCB and metal surface.

With IP67 waterproof grade, it could also be used in outdoor without cover.

We own professional test machines like pulling strength test, high-low temperature test machine, slat spray test machine and RF test machine so all the technical data was verified by machines directly before sharing with clients.


Product Detail

Product Tags

Product Introduction

It's mainly for fuel dispenser;vending machine,access control system, security system and some other public facilities.

Features

1.The keypad is made of SUS 304 stainless steel and could bear outdoor corrosion
2.The font on buttons and pattern can be customized according to customer requirements.

Application

va (2)

The keypad mainly used in access control and kiosk.

Parameters

Item

Technical data

Input Voltage

3.3V/5V

Waterproof Grade

IP65

Actuation Force

250g/2.45N(Pressure point)

Rubber Life

More than 500 thousand cycles

Key Travel Distance

0.45mm

Working Temperature

-25℃~+65℃

Storage Temperature

-40℃~+85℃

Relative Humidity

30%-95%

Atmospheric Pressure

60Kpa-106Kpa

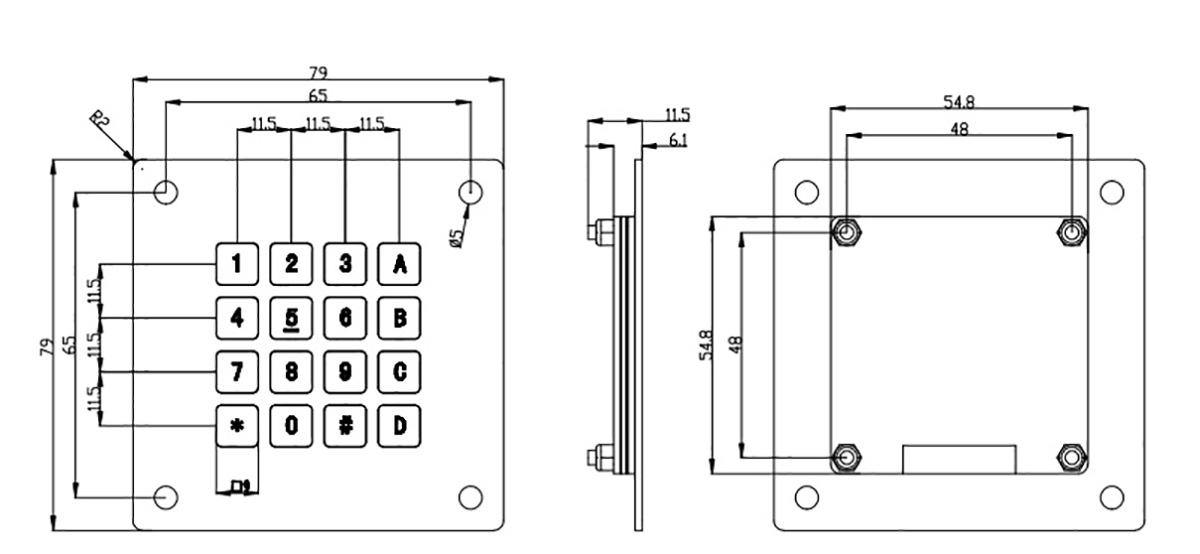

Dimension Drawing

acav

Available Connector

vav (1)

Any appointed connector could be made as customer's request. Let us know the exact item No. in advance.

Test machine

avav

85% spare parts are produced by our own factory and with matched test machines, we could confirm the function and standard directly.
