High quality zinc alloy water proof industrial keypad B507

Short Description:

Rugged die cast 20keys with strong anti-destruction capability.

We Yuyao Xianglong Communication Industrial Co., Ltd. was established in 2005, located in Yuyao, Ningbo, Zhejiang Province. It is mainly specialized in the production of industrial and military communication telephone handsets, cradles, keypads and related accessories.


Product Detail

Product Tags

Product Introduction

With willful destruction, vandal-proof, against corrosion, weather-proof especially under extreme climatic conditions, water proof/dirt proof and some other features this keypad could be used in all hostile environments.
With special design for industrial area, it could meet the highest demands with regard to design, functionality, longevity and high protection level.
The most common application is traditional payphones beside street, so if you have request, let us know and we would send matched samples to you.

Features

1.The whole keypad is made in high quality zinc alloy material.
2. The conductive rubber is with long working life and 0.45mm travel distance, so the buttons are with good touch feeling when you press it.
3. The PCB is made with Double side route which could avoid short when connect with metal parts; With golden finger in cooper lines, which is resistant to oxidation.

Application

vav

The most popular application for this keypad is public telephones and some other public facilities.

Parameters

Item

Technical data

Input Voltage

3.3V/5V

Waterproof Grade

IP65

Actuation Force

250g/2.45N(Pressure point)

Rubber Life

More than 2 million time per key

Key Travel Distance

0.45mm

Working Temperature

-25℃~+65℃

Storage Temperature

-40℃~+85℃

Relative Humidity

30%-95%

Atmospheric Pressure

60kpa-106kpa

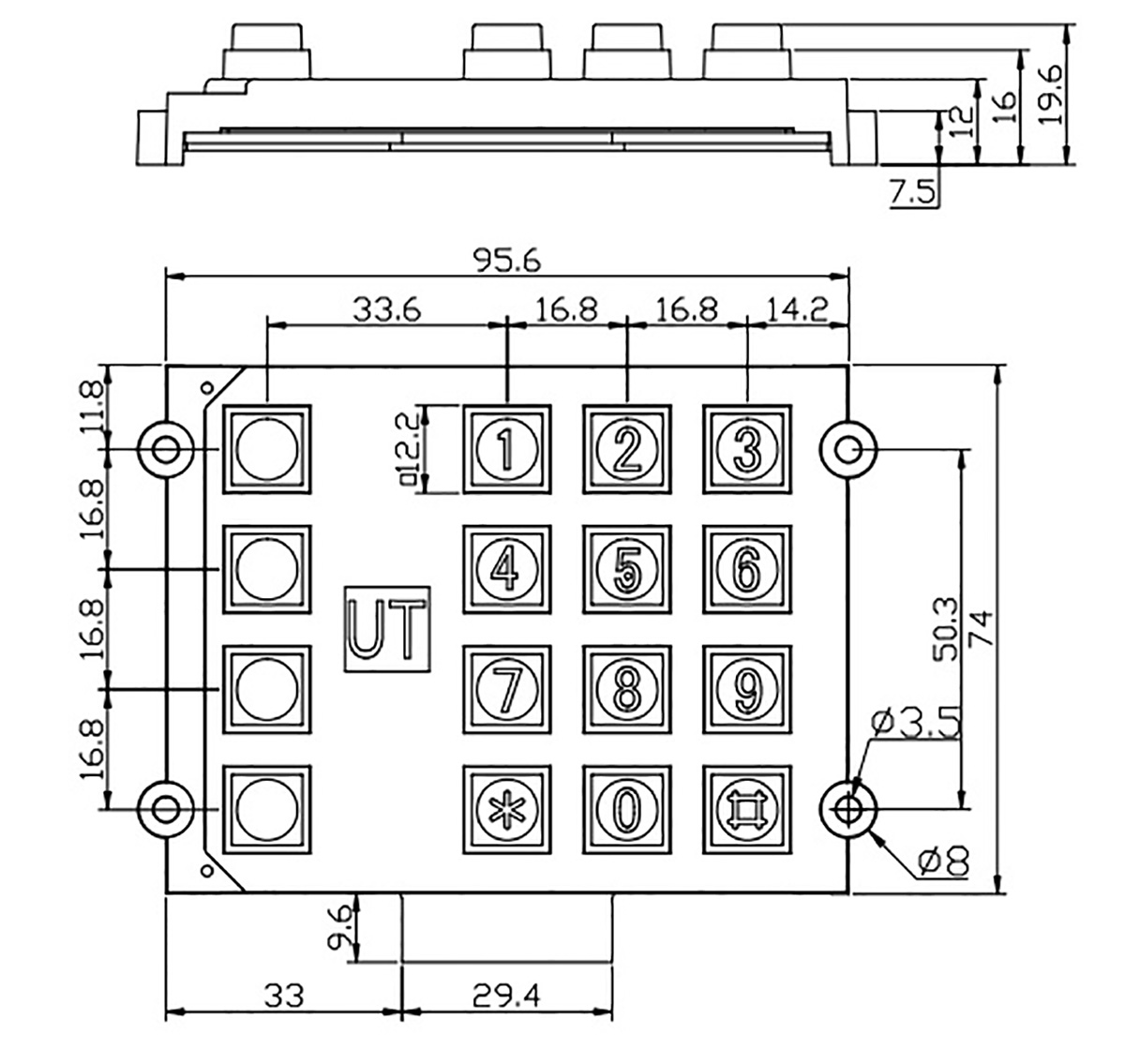

Dimension Drawing

avaa

Available Connector

vav (1)

Any appointed connector could be made as customer's request. Let us know the exact item No. in advance.

Test machine

avav

85% spare parts are produced by our own factory and with matched test machines, we could confirm the function and standard directly.
