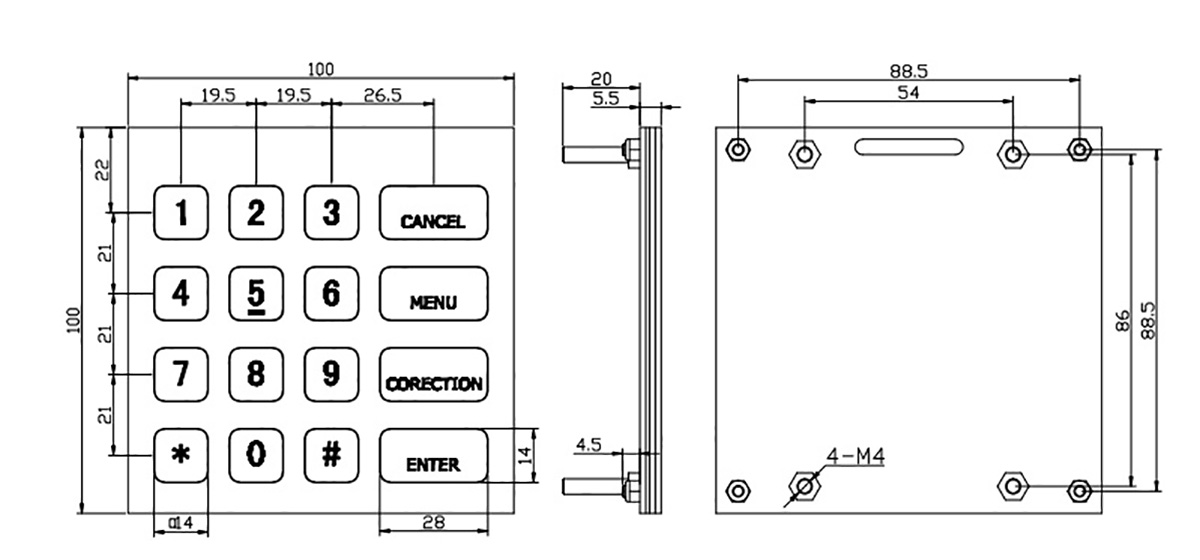

SUS304 stainless steel keypad for ATM function B725
Specially designed for public environment applications, such as vending machines, ticket machines, payment terminals, telephones, access control systems and industrial machinery. Keys and front panel are built from SUS304# stainless steel with high resistance to impact and vandalism and is also sealed to IP65.
1.The material of keypad is stainless steel.
2.10 number buttons and 6 function buttons.
3.Double-sided board, Good for contact of gold-finger.
4.Vandal resistant, Waterproof.
5.The keys layout can be customized.
6.The front panel and bottom panel can be customized.
Normally it will be used in Vending machine and Fuel dispenser.
|
Item |
Technical data |
|
Input Voltage |
3.3V/5V |
|
Waterproof Grade |
IP65 |
|
Actuation Force |
250g/2.45N(Pressure point) |
|
Rubber Life |
More than 500 thousand cycles |
|
Key Travel Distance |
0.45mm |
|
Working Temperature |
-25℃～+65℃ |
|
Storage Temperature |
-40℃～+85℃ |
|
Relative Humidity |
30%-95% |
|
Atmospheric Pressure |
60Kpa-106Kpa |
Any appointed connector could be made as customer's request. Let us know the exact item No. in advance.
85% spare parts are produced by our own factory and with matched test machines, we could confirm the function and standard directly.
