12keys special ABS plastic keypad for outdoor access control device B110

Short Description:

This keypad is mainly used in the access control system machine.

We has carried out 6S management activities, lean production management activities, quality improvement special activities, Mechanical automation improvement, human resources system, corporate culture system and other activities to improve quality and efficiency in recent years.


Product Detail

Product Tags

Product Introduction

This keypad with willful destruction, vandal-proof, against corrosion, weather-proof especially under extreme climatic conditions, water proof/dirt proof, operation under hostile environments.
Specially designed keyboards meet the highest demands with regard to design, functionality, longevity and high protection level.

Features

1.Keyframe made of unique PC/ABS plastic
2.The keys are made of flame-resistant ABS material that has been silver-painted to seem like metal.
3.Natural silicone conductive rubber, corrosion resistance, and aging resistance
4.Customized double-sided PCB circuit board, contacts Because of the use of gold in the gold-finger method, the touch is more reliable.
5.Customized button and text color based on customer specifications
6.Customized key frame color based on customer specifications
7.Aside from the telephone, the keyboard might be developed for other functions.

Application

VAV

It is mainly for access control system, industrial telephone,vending machine, security system and some other public facilities.

Parameters

Item Technical data
Input Voltage 3.3V/5V
Waterproof Grade IP65
Actuation Force 250g/2.45N(Pressure point)
Rubber Life More than 2 million time per key
Key Travel Distance 0.45mm
Working Temperature -25℃~+65℃
Storage Temperature -40℃~+85℃
Relative Humidity 30%-95%
Atmospheric Pressure 60kpa-106kpa

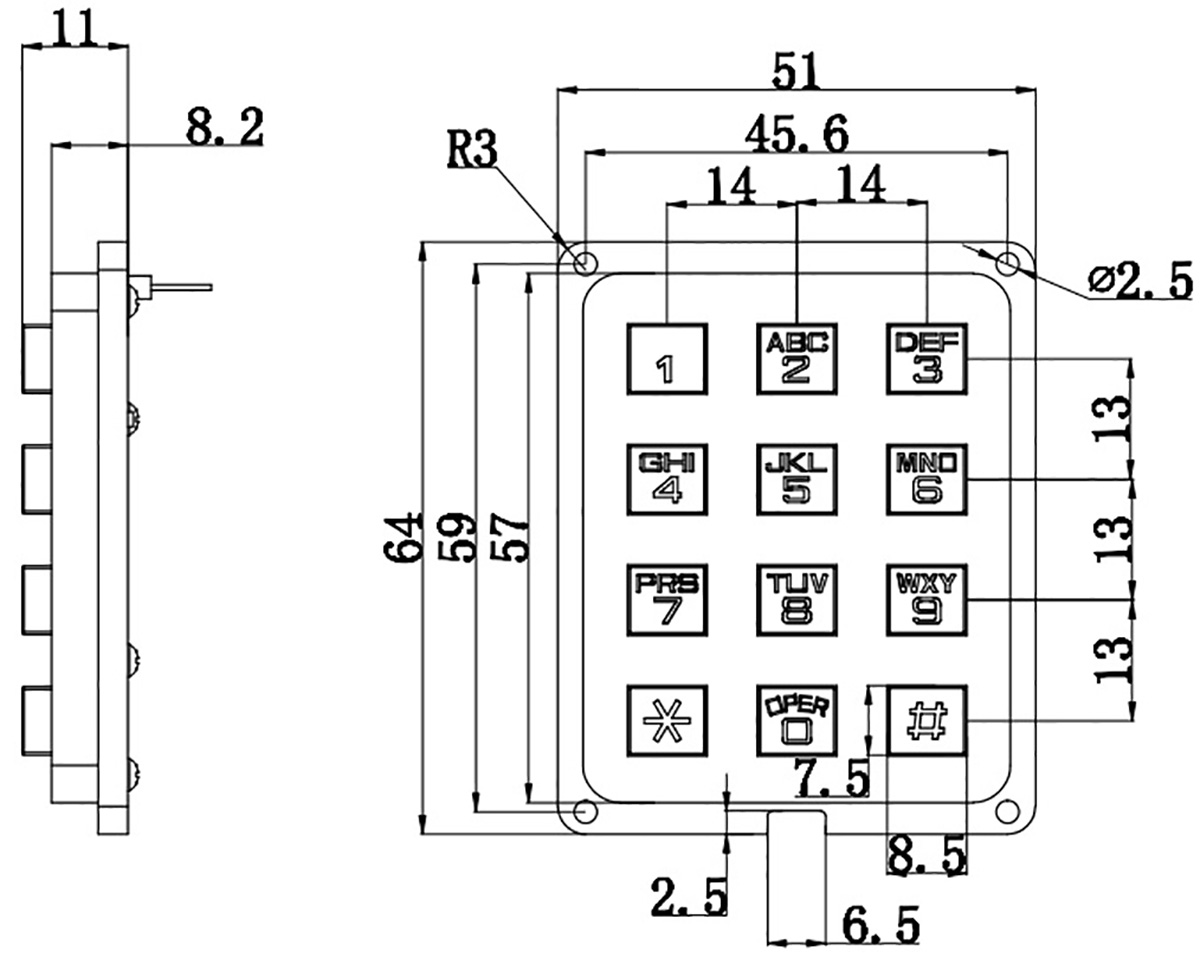

Dimension Drawing

AVAV

Available Connector

vav (1)

Any appointed connector could be made as customer's request. Let us know the exact item No. in advance.

Test machine

avav

85% spare parts are produced by our own factory and with matched test machines, we could confirm the function and standard directly.
