Wall Mount Speed Dial Intercom Speakerphone Emergency Telephone

Short Description:

This JWAT404 Waterproof Industrial Telephone is designed to suitable for Food factory ,schools, chemical plant,public area,etc.

It has great stability and strong anti-interference ability, in line with national standards GB/T 15279-94. The phone support full duplex communication, and two-way communication. The telephone is designed according to the stability requirements of minus 40 degrees to 60 degrees above zero, and its technical index is at the international leading level. The waterproofing performance of the telephone is up to IP65, and is suitable for wet, extreme temperature, bad weather environment use.

With a professional R&D team in industrial telecommunication solution filed since 2005 Year, Ningbo Joiwo Technology supplies reliable industrial telephone solutions to customers all over the world. Our production includes standard and custom telephones such as weatherproof telephones, vandal resistant telephones, explosion resistant telephones, and telephone accessories.Each Intercom Telephone have been passed the FCC,CE international certificates.

Your first-choice provider of innovative communication solutions and competitive products  for the Safety and Emergency communication.


Product Detail

Product Tags

Product Introduction

This JWAT404 Emergency speakerphone provides hands-free communication through the existing Analog Telephone line or VOIP network and is suitable for a sterile environment.
The body of the telephone is made of Cold rolled steel ,Vandal resistant,With 4 functions keys which could set the function of repeat , Volume adjustable ,speed dial ,etc.And it have a strong key to lock and unlock the telephone to make safety .
Several versions are available, color customized,with keypad, without keypad and on request with additional function buttons.
Telephone parts is produced by self-made , every parts like keypad could be customized.

Features

1.Standard Analogue phone. SIP version available.
2.Robust housing, constructed of cold rolled steel material.
3.4 X Tamper proof screws for mounting and one lock key.
4.Hands-free Operation.
5.Vandal resistant stainless steel keypad with 4 programmed button.
6.Wall mounted Installation type.
7.Defend Grade protection IP65 .
8.Connection: RJ11 screw terminal pair cable.
9.Self-made telephone spare part available.
10.CE, FCC, RoHS, ISO9001 compliant.

Application

VAV

The Intercom usually used in Food Factory, Clean room, Laboratory, Hospital Isolation areas, Sterile areas, and other restricted environments. Also available for Elevators/Lifts, Parking lots, Prisons, Railway/Metro platforms, Hospitals, Police stations, ATM machines, Stadiums, Campus, Shopping malls, Doors, Hotels, outside building etc.

Parameters

Item Technical data
Power Supply Telephone Line Powered
Voltage DC48V
Standby Work Current ≤1mA
Frequency Response 250~3000 Hz
Ringer Volume >85dB(A)
Corrosion Grade WF2
Ambient Temperature -40~+70℃
Anti-vandalism Level Ik10
Atmospheric Pressure 80~110KPa
Weight 3.8kg
Relative Humidity ≤95%
Installation Wall mounted

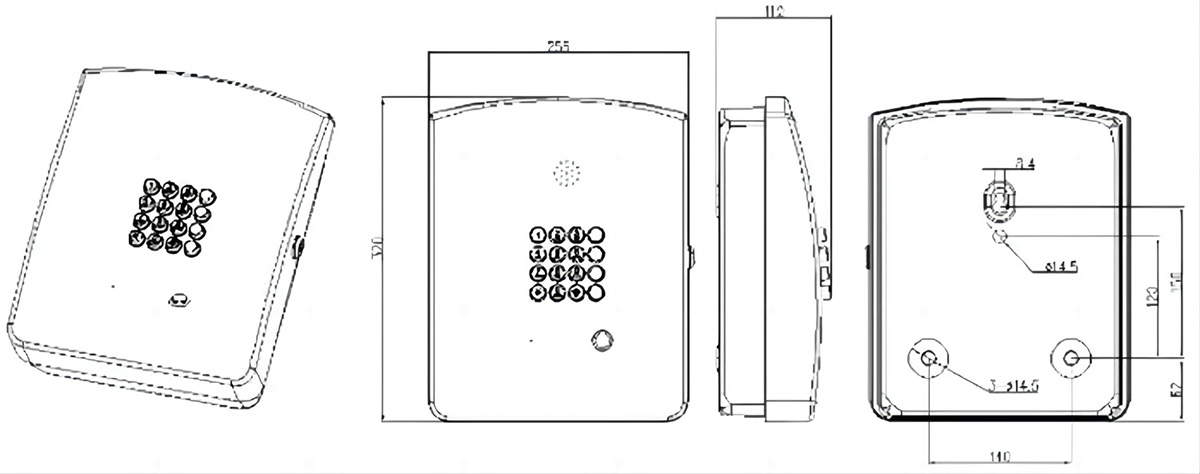

Dimension Drawing

VAV

Available Connector

ascasc (2)

If you have any color request, let us know the Pantone color No.

Test machine

ascasc (3)

85% spare parts are produced by our own factory and with matched test machines, we could confirm the function and standard directly.
