Square type push to talk dispatching system telephone handset A24

Short Description:

It is a handset used for dispatching system with push-to-talk switch in ship,control tower,traffic control centre and etc.

With professional test machines like pulling strength test, high-low temperature test machine, salt spray test machine and RF test machines, we could offer exact test report to clients to make all customer clear of all the details in advance.


Product Detail

Product Tags

Product Introduction

As a handset for dispatching system in ship,we chose weatherproof PVC curly cord to bear the low temperature and moisture. With different kinds of speakers and microphones, the handsets could be matched with various motherboard to reach high sensitivity or noise reducing functions; hearing-aid speaker could also be chose for hearing-impaired person and noise reducing microphone could cancel the noise from background when answering calls; With push-to-talk switch, it could improve the voice quality when release the switch.

Features

1.PVC curly cord (Default), working temperature:
- Standard cord length 9 inch in retracted, 6 feet after extended (Default)
- Customized different length is available.
2. Weather resistant PVC curly cord (Optional)
3. Hytrel curly cord (Optional)

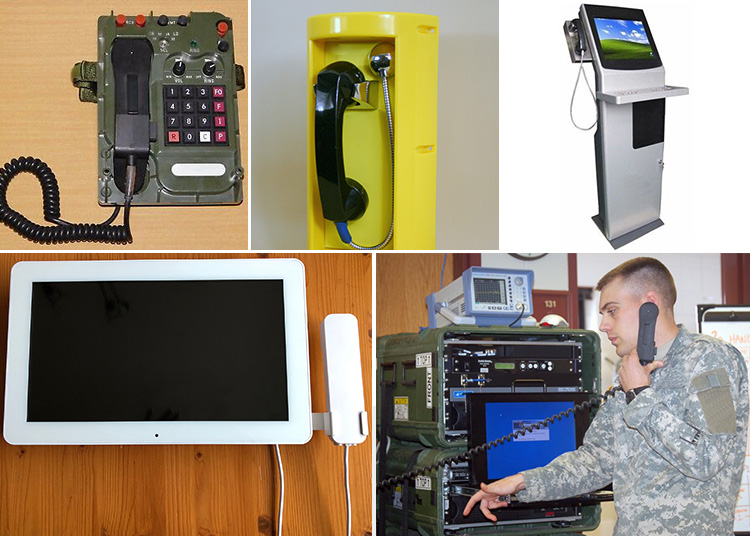

Application

vava

It could be used for dispatching system with push-to-talk switch in ship,control tower,traffic control centre and etc.

Parameters

Item

Technical data

Waterproof Grade

IP65

Ambient Noise

≤60dB

Working Frequency

300~3400Hz

SLR

5~15dB

RLR

-7~2 dB

STMR

≥7dB

Working Temperature

Common:-20℃~+40℃

Special: -40℃~+50℃

(Please tell us your request in advance)

Relative Humidity

≤95%

Atmospheric Pressure

80~110Kpa

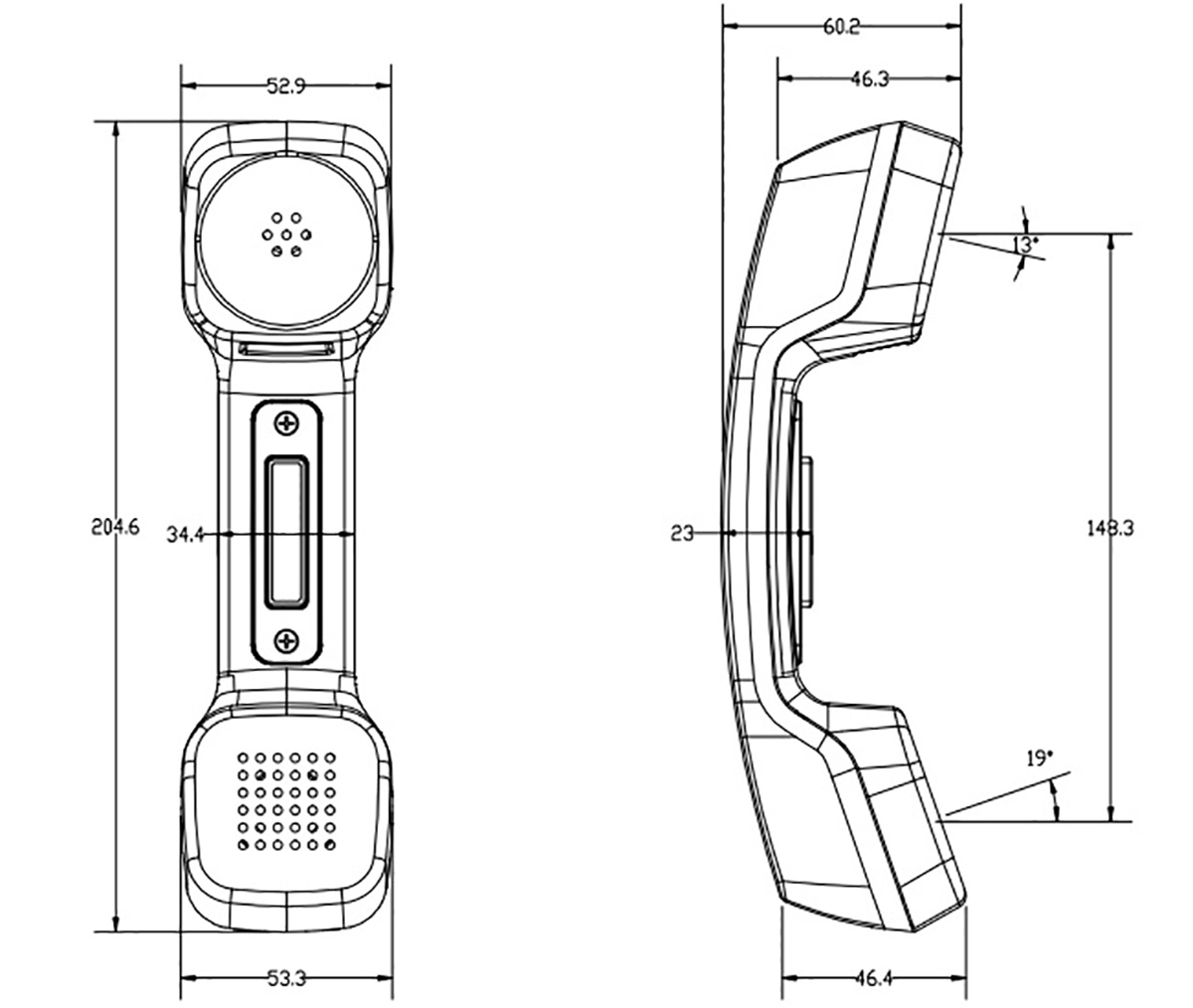

Dimension Drawing

avab

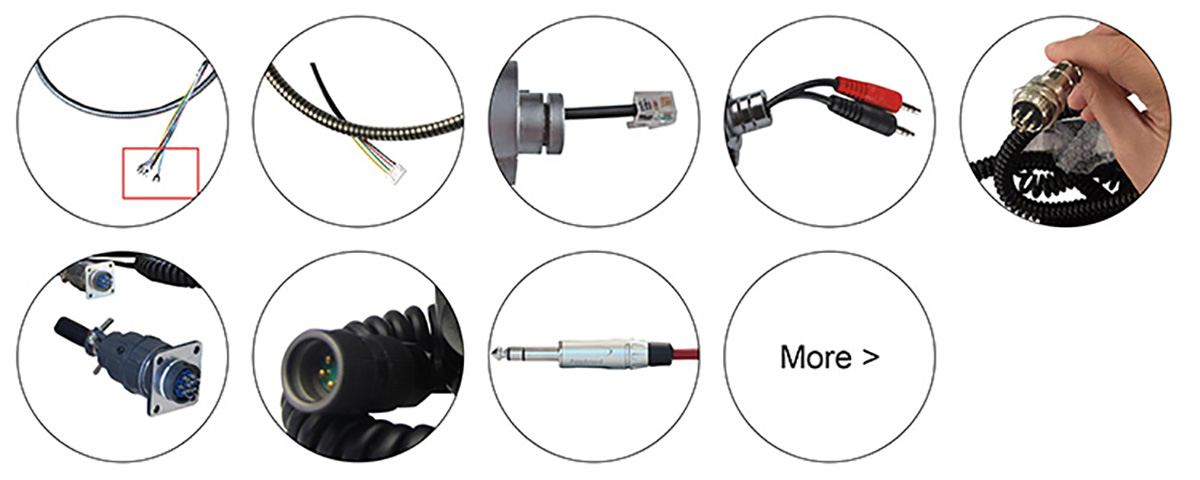

Available Connector

avav

Any appointed connector could be made as customer's request. Let us know the exact item No. in advance.

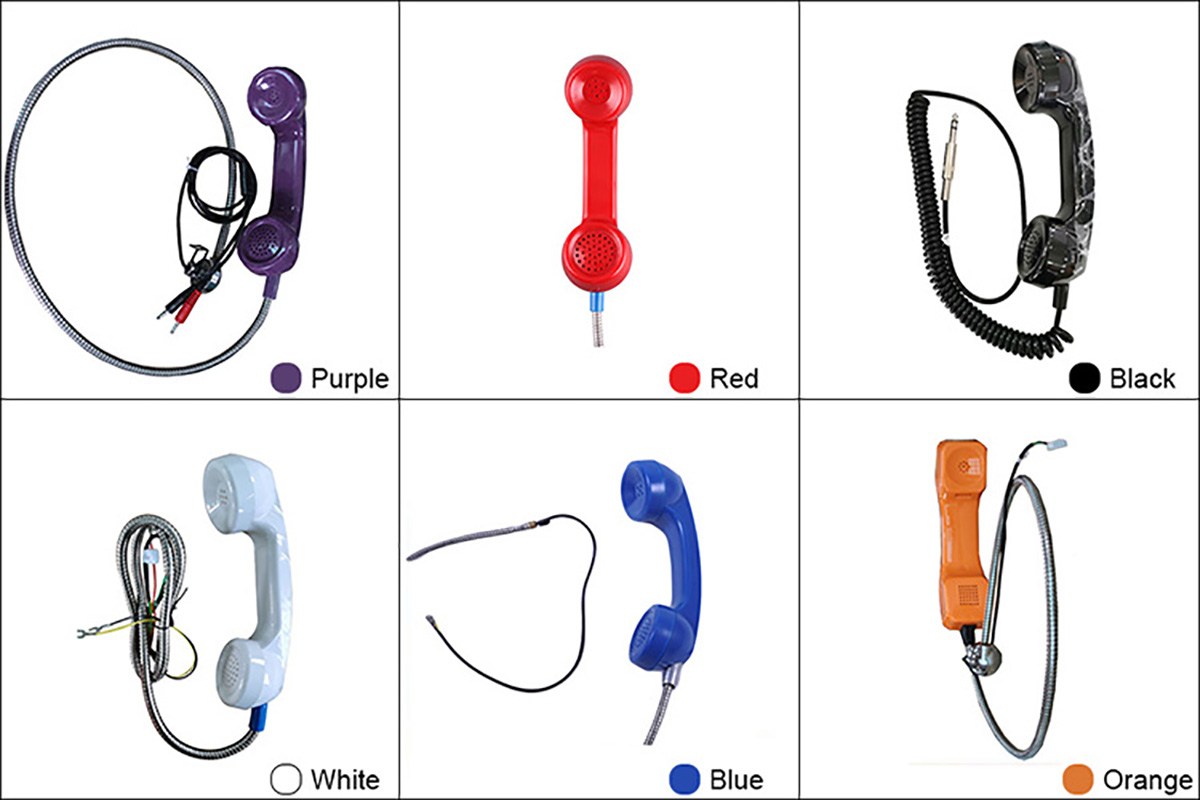

Available color

svav

If you have any color request, let us know the Pantone color No.

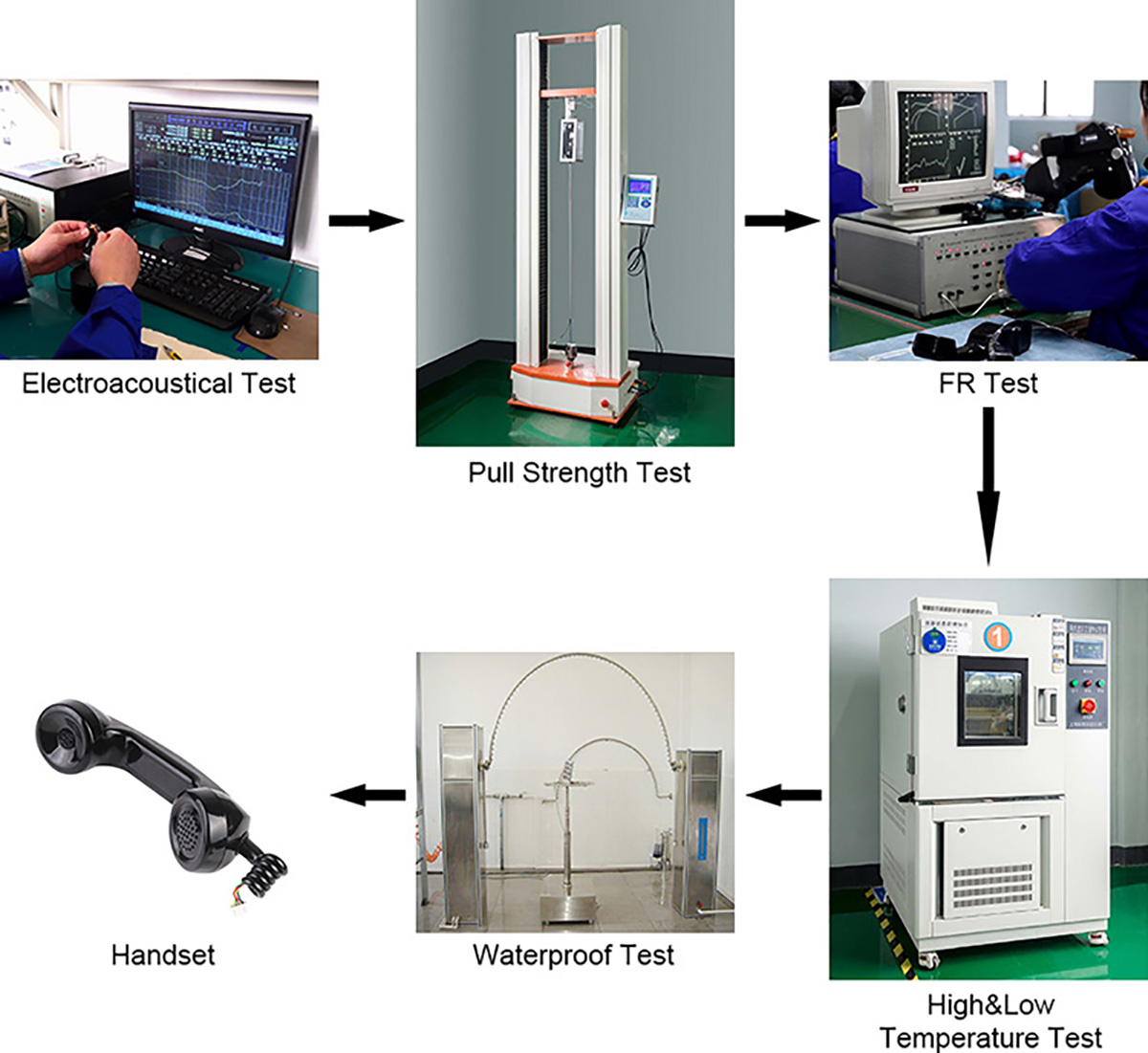

Test machine

vav

85% spare parts are produced by our own factory and with matched test machines, we could confirm the function and standard directly.
