Industrial kiosk telephone handset with 3.5mm DC audio jack and matched stand A27

Short Description:

With matched stand, this handset could be built on kiosk or PC table with 3.5mm DC audio jack or USB connection.

With professional electronics engineer in telecommunication filed for more than 18 years, We would customized all the electronics part to meet client’s request like USB, ASCII or UTAR signal.


Product Detail

Product Tags

Product Introduction

For kiosk, it is important to check the voice quality and noise reducing for handset. In order to reduce the outdoor environment noise, we chose noise reducing microphone in structure and also use hearing-aid speaker in handset for hearing-impaired person when answering calls.
For kiosk, we also have cord retractable box to match with the handset when client has this request. So you any special request could be met in our factory.

Features

1.PVC curly cord (Default), working temperature:
- Standard cord length 9 inch in retracted, 6 feet after extended (Default)
- Customized different length is available.
2. Weather resistant PVC curly cord (Optional)

Application

avavv

It could used in kiosk or PC table with matched stand.

Parameters

Item

Technical data

Waterproof Grade

IP65

Ambient Noise

≤60dB

Working Frequency

300~3400Hz

SLR

5~15dB

RLR

-7~2 dB

STMR

≥7dB

Working Temperature

Common:-20℃~+40℃

Special: -40℃~+50℃

(Please tell us your request in advance)

Relative Humidity

≤95%

Atmospheric Pressure

80~110Kpa

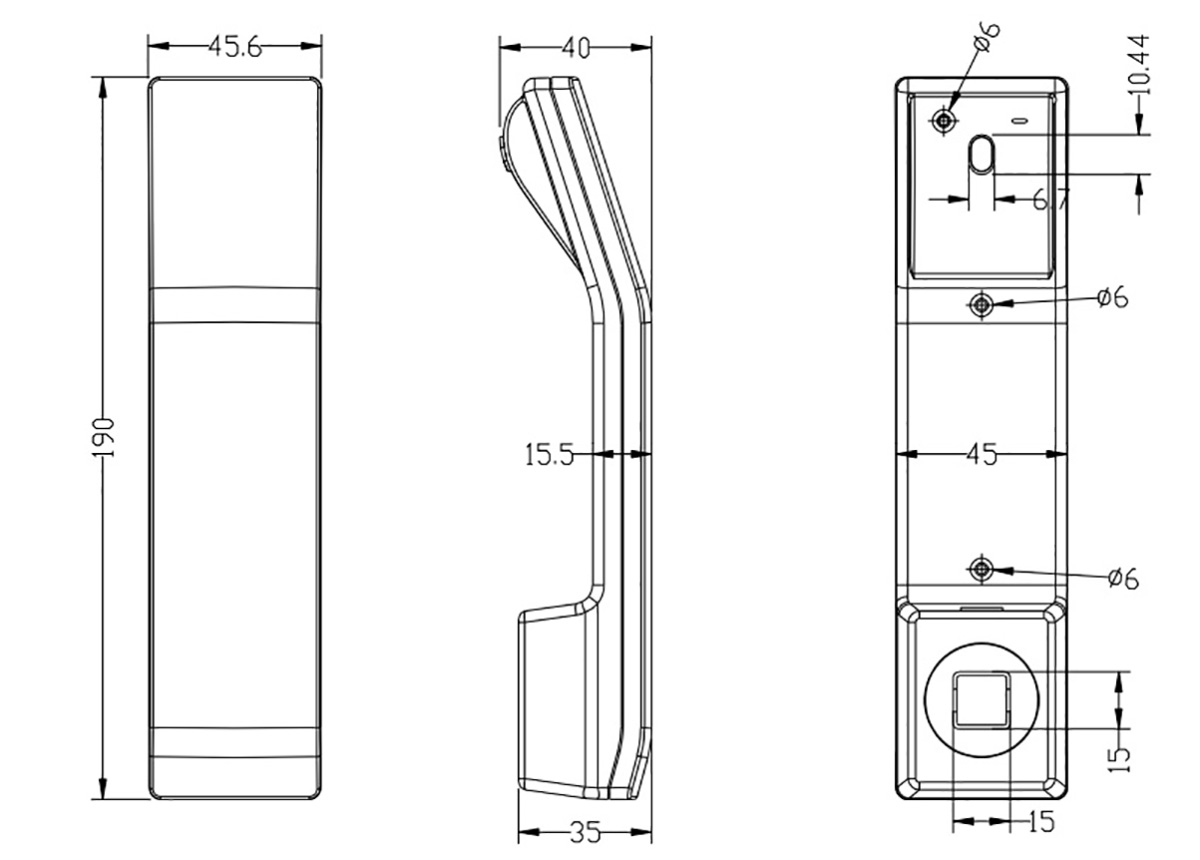

Dimension Drawing

vav

Available Connector

avav

Any appointed connector could be made as customer's request. Let us know the exact item No. in advance.

Available color

svav

If you have any color request, let us know the Pantone color No.

Test machine

vav

85% spare parts are produced by our own factory and with matched test machines, we could confirm the function and standard directly.
