Soft material handset for industrial telephones A19

Short Description:

This handset is designed with matte soft surface and could be used in industrial, commercial or residential use telephones.

During the past 5 years, we focus to bring new automatic machines in production process,like mechanical arms, auto sorting machines, auto painting machines and so on to improve the daily capacity and reduce the cost completely.

Product Detail

Product Tags

Product Introduction

This handset surface is soft when you touch, so it could be used in industrial telephones and also could be used in commercial telephones.
From the appearance, the design is accord with ergonomics and easy to hold in hands when pick up.


SUS304 Stainless steel armored cord (Default)
- Standard armored cord length 32 inch and 10 inch, 12 inch,18 inch and 23 inch are optional.
- Include steel lanyard which is anchored to telephone shell. Matched steel rope is with different pull strength.
- Dia: 1.6mm, 0.063”, Pull test load:170 kg, 375 lbs.
- Dia: 2.0mm, 0.078”, Pull test load:250 kg, 551 lbs.
- Dia: 2.5mm, 0.095”, Pull test load:450 kg, 992 lbs.


acvAV (1)

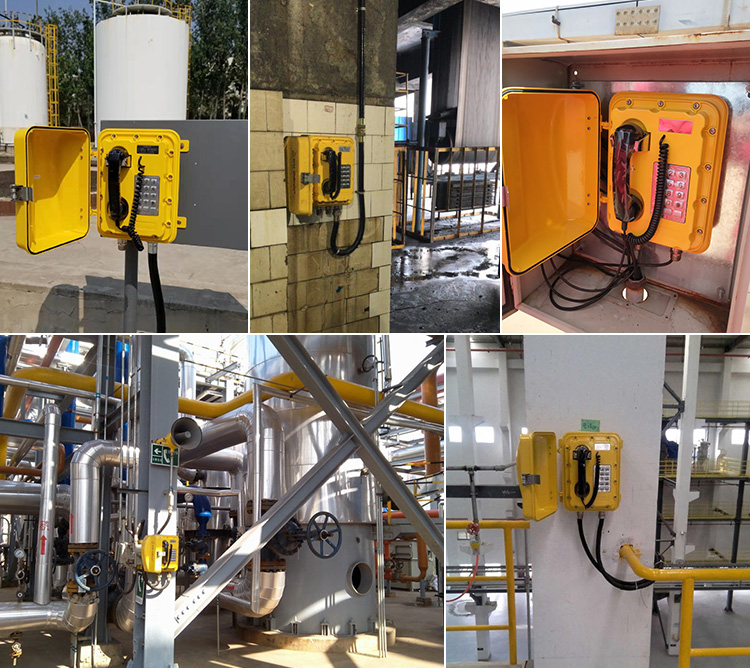

This flame resistant handset is mainly used for industrial telephones which used in gas&oil hazardous zone.



Technical data

Waterproof Grade


Ambient Noise


Working Frequency





-7~2 dB



Working Temperature


Special: -40℃~+50℃

(Please tell us your request in advance)

Relative Humidity


Atmospheric Pressure

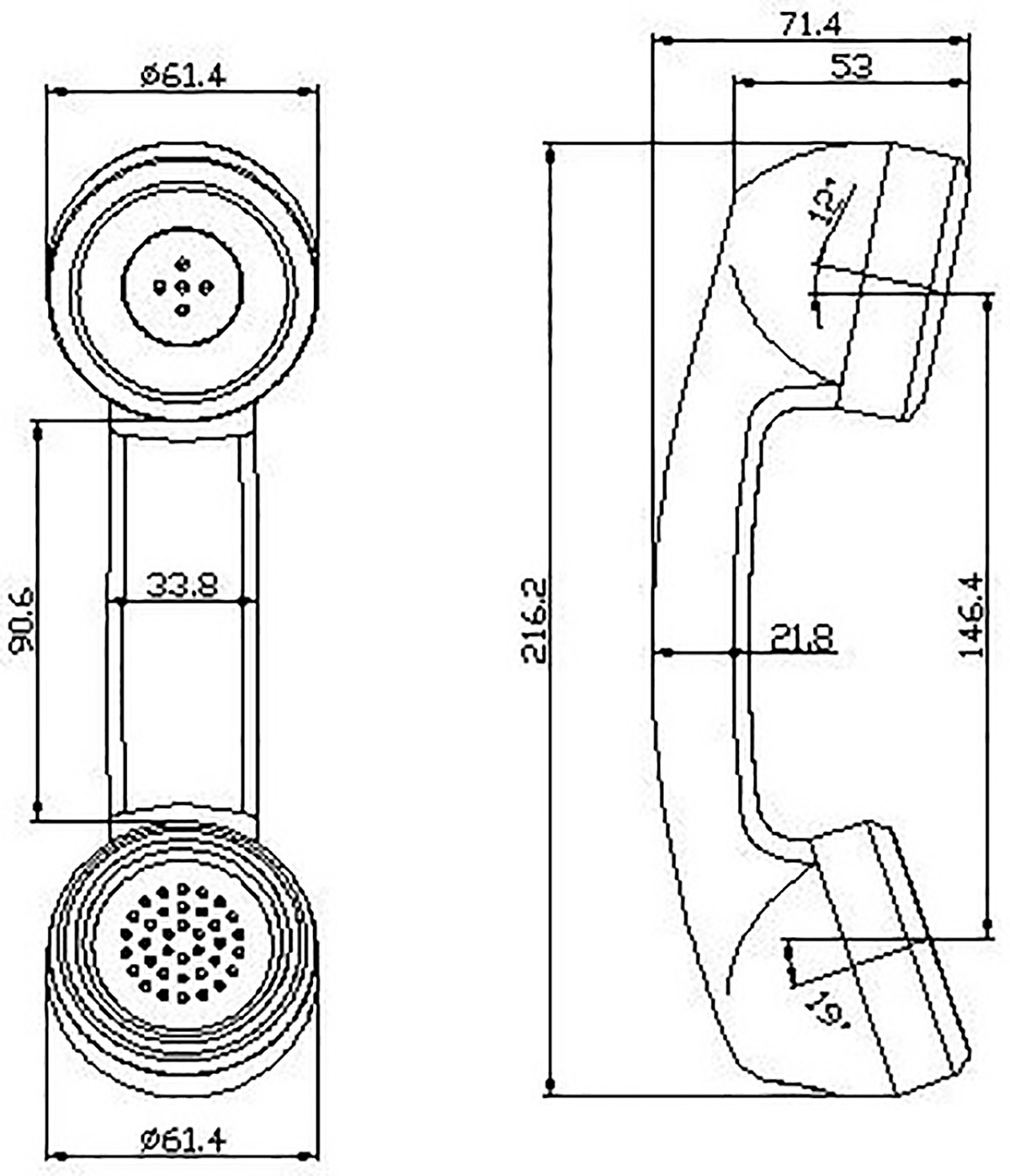

Dimension Drawing

acvAV (2)

Available Connector


Any appointed connector could be made as customer's request. Let us know the exact item No. in advance.

Test machine


85% spare parts are produced by our own factory and with matched test machines, we could confirm the function and standard directly.
