Outdoor Telephone Acoustic Hood JWAX002
Short Description:
Material : Glass reinforced plastic (GRP)
Boxed Dimensions : 700mm x 5 0 0 m m * 6 8 0 m m
Boxed Weight : About 15kg
Color ：Optional.
Product Introduction
The acoustic telephone hood has a 23db noise reduction and weatherproof function. Installing the telephone inside can well isolate the environment and provide a good call environment.
Features
1. Designed for commercial locations where appearances are important or industrial
premises to brighten up the working environment.
2. Extremely robust and weatherproof
3. Good acoustic qualities and highly visible
4. High visibility yellow paint finish
5. 15dB noise reduction（If add sound proof cotton，could reduce 24dB noise）
6. Telephone mounting panel 200mm deep shelf
7. Suitable for outdoor installs
8. suitable for internal or external locations including use as a Marine Telephone Hood.
9.Fitted to the inner back wall is a stainless steel apparatus plate or Cold rolled steel
plate optional pls contact marketing stuff if you need this telephone plate.
10.With mounting bracket to fix.
Application
Parameters
| Acoustic Damping | Insulation - Rockwool RW3, Density 60kg/m3 (50mm) |
| Boxed Weight | About 20kg |
| Fire Resistance | BS476 Part 7 Fire Retardant Class 2 |
| Insulation Liner | White Perforated Polypropylene 3mm thickness |
| Boxed Dimensions | 700 x 500 x 680mm |
| Colour | Yellow or red as standard. Other options available |
| Material | Glass reinforced plastic |
| Atmospheric Pressure | 80～110KPa |

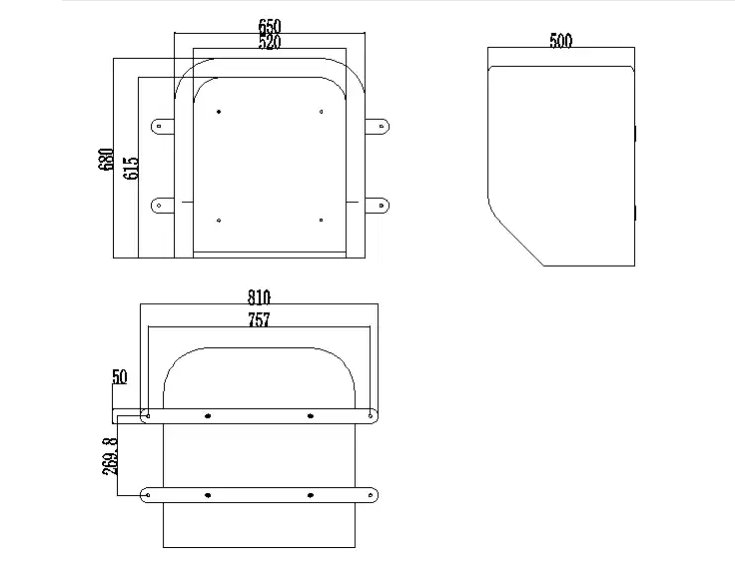

Dimension Drawing
Available Connector
Test machine
