IP66 Industrial Outdoor Weatherproof Telephone with LCD Display- JWAT316X-4S
Short Description:
We are a manufacturer of industrial waterproof telephones. We will provide the latest and best industrial waterproof telephones, with voip and analog versions available. We can also customize the telephone according to your demands. You can use our weatherproof telephones in industrial area, outdoor, nuclear power,railway, tunnel, dock,marine and chemical industries.
Product Introduction
This heavy-duty telephone is fully contained within a corrosion-resistant rolled steel weatherproof housing that provides complete protection against dust and moisture, resulting in a highly reliable product with a long MTBF. It has a high-definition LCD display, 4 function buttons, a magnetic hook that automatically hangs up when you hang up the phone, and a metal-armored phone cord to prevent tearing.
Features
1. Robust housing, constructed of cold rolled steel with powder coated
2. Standard Analogue telephone.
3.Vandal resistant handset with armored cord and metal seal connector provides added security and waterproof for handset cord.
4. Weather proof Protection class to IP65.
5. Equipped with an indicator light and lights up during a call.
6. With display, can display the outgoing number, call duration, etc
7. Waterproof stainless steel Keypad which have Four function keys could set speed dial,redial .
8.Wall mounted, Simple installation.
9. Connection: RJ11 screw terminal pair cable.
10.Sound level of ringing:over 85dB(A).
11. The available colors as an option.
12. Self-made telephone spare part like keypad,cradle, handset,etc is available.
13.CE, FCC, RoHS, ISO9001 compliant.
Application
This weatherproof telephone is very popular for subways, highways, power plants, petrol stations, docks, steel companies and other environments that have special requirements for moisture, fire, noise, dust and frost.
Parameters
| Voltage | DC48V |
| Standby Work Current | ≤1mA |
| Frequency Response | 250～3000 Hz |
| Ringer Volume | ≥85dB |
| Defend Grade | IP66 |
| Corrosion Grade | WF1 |
| Ambient Temperature | -40～+70℃ |
| Atmospheric Pressure | 80～110KPa |
| Relative Humidity | ≤95% |
| Cable Gland | 1-PG11 |
| Weight | 6kg |
Advantage
1. Developed pipe gallery fiber optic telephones in 2017 Suzhou Pipe Gallery serves as government demonstration project Function demonstration operation.
2. With more than 10 years of R&D experience ODM & OEM available.
3. Top 1 enterprise in innovation of explosion-proof telephones Product appearance obtained patent certificate
4. Include the Analog ,Voip,Fiber communication system.
5. Self-made telephone spare part available.
6. CE,FCC,ROHS,ATEX,ISO9001 compliant.

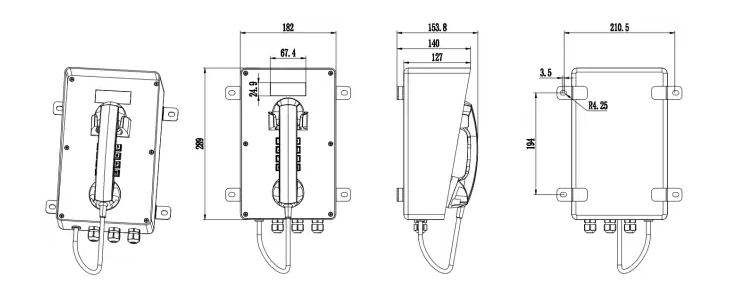

Dimension Drawing
Available Connector
Test machine
