Wall Mounting aluminum alloy rugged Explosion Proof Telephone with loudspeaker and warning light – JWBT811

Short Description:

The explosion proof telephone JWBT811 is an emergency phone that specifically addresses the harsh environment of outdoor industry.The telephone is rugged and durable and explosion proof telephone is intrinsically safe and atex zone1 and zone 2 also zone 21.

The explosion proof telephone uses aluminum alloy as the raw material for the weatherproof enclosure, and the exterior is strong. OEM and customization is also available.


Product Detail

Product Tags

Product Introduction

JWBT series explosion-proof telephones are high-tech products that combine with the actual needs of dangerous and high-noise places. , Is an indispensable and extremely ideal explosion-proof industrial communication product.

Features

1.Standard analogue phone, Phone line powered. Also available in SIP/VoIP, GSM/3G version

2.Aluminum alloy die-casting shell, high mechanical strength and strong impact resistance.

3.Heavy Duty handset with hearing Aid compatible receiver, Noise canceling microphone.

4.Zinc alloy keypad and Magnetic reed hook-switch.

5.Weather proof protection to IP66-IP67.

6.With loudspeaker and flash light.

7.Temperature range from -40 degree to +70 degree.

8.Powder coated in UV stabilized polyester finish.

9.Wall mounted, Simple installation.

10.Multiple housings and colors.

11.Self-made telephone spare part available.

12. CE, FCC, RoHS, ISO9001 compliant.

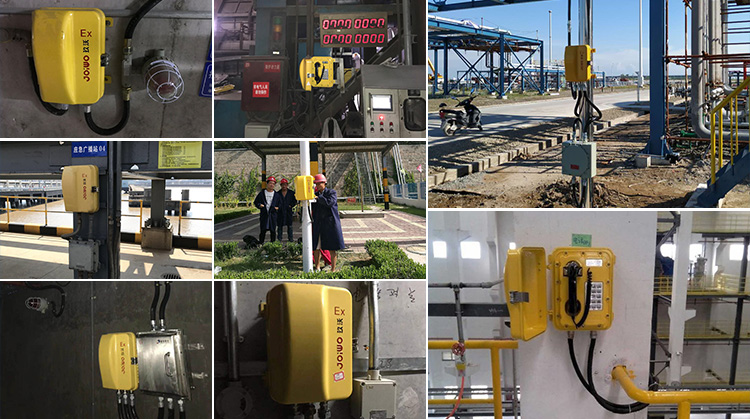

Application

5.防爆电话机官网

Parameters

Explosion-proof mark ExdibIICT6Gb/EXtDA21IP66T80℃
Signal Voltage 100-230VAC
Standby Work Current ≤0.2A
Frequency Response 250～3000 Hz
Ringer Volume 110dB
Amplified Output Power 25W
Corrosion Grade WF1
Ambient Temperature -40～+60℃
Atmospheric Pressure 80～110KPa
Relative Humidity ≤95%
Lead Hole 3-G3/4”
Installation Wall-mounted

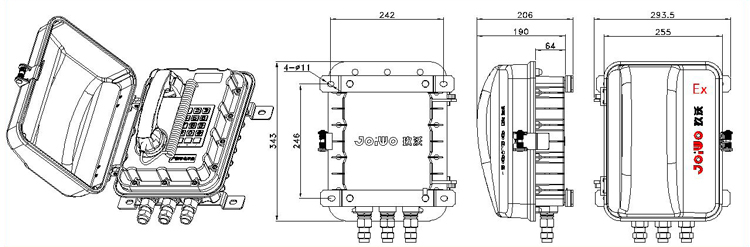

Dimension Drawing

JWBT811 drawing

Available Connector

color

Test machine

pp
