Plastic Industrial Weatherproof IP Telephone with loudspeaker for Marine Project -JWAT905

Short Description:

It is an industrial weatherproof telephone which is fully contained within a corrosion resistant cast engineering plastic waterproof case.With a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.

Each weatherproof phone has been tested for waterproofness and has earned worldwide certifications because of a skilled R&D team working in the industrial telecommunications sector since 2005. We can offer you a cost-effective, quality-assured, after-sale protection of a water-resistant telephone since we have our own factories with self-made telephone parts.


Product Detail

Product Tags

Product Introduction

Engineering plastic, an extremely durable injection molding material, is employed with ample thicknesses to create the telephone's body. Even with the door open, IP67 protection is provided. The door helps keep the inside components, including the handset and keyboard, clean.
There are several variations available, including ones with or without a door, a keypad with or without a keypad, and, upon request, extra function buttons.

Features

1.1.Engineering plastic injection moulding shell, high mechanical strength and strong impact resistance.
2.Support 2 lines SIP, SIP 2.0 (RFC3261).
3.Audio Codes:G.711, G.722, G.729.
4.IP Protocols:IPv4, TCP, UDP, TFTP, RTP, RTCP, DHCP, SIP.
5.Echo cancellation code:G.167/G.168.
6.Supports full duplex.
7.WAN/LAN: support Bridge mode.
8.Support DHCP get IP on WAN port.
9.Support PPPoE for xDSL.
10.Support DHCP get IP on WAN port.
11.Heavy Duty handset with hearing Aid compatible receiver, Noise canceling microphone.
12.Weather proof Protection class to IP68.
13.Waterproof zinc alloy Keypad.Buttons can be programmed as function button like SOS,repeat,etc.
14.Wall mounted, Simple installation.
15.Sound level of ringing: 110 dB(A).
16.The available colors as an option.
17.Self-made telephone spare part available.
18.CE, FCC, RoHS, ISO9001 compliant.

Application

avasv

This Weatherproof Telephone Is Very Popular For Marine,Tunnels, Mining, Underground, Metro Stations, Railway Platform, Highway Side, Parking Lots, Steel Plants, Chemical Plants, Power Plants And Related Heavy Duty Industrial Application, Etc.

Parameters

Item Technical data
Power Supply PoE,12V DC or 220VAC
Voltage 24--65 VDC
Standby Work Current ≤0.2A
Frequency Response 250～3000 Hz
Ringer Volume >80dB(A)
Corrosion Grade WF1
Ambient Temperature -40～+60℃
Atmospheric Pressure 80～110KPa
Relative Humidity ≤95%
Lead Hole 3-PG11
Installation Wall-mounted

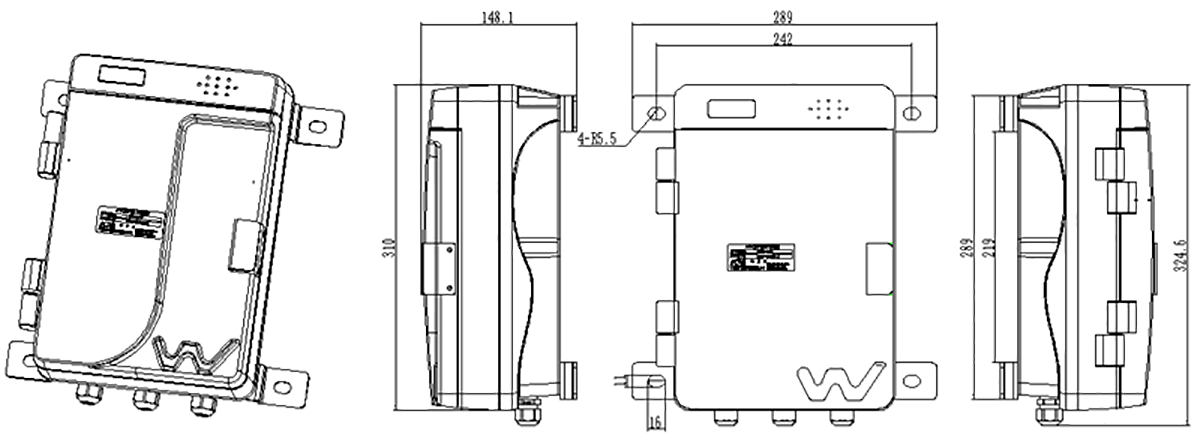

Dimension Drawing

avav

Available Connector

ascasc (2)

If you have any color request, let us know the Pantone color No.

Test machine

ascasc (3)

85% spare parts are produced by our own factory and with matched test machines, we could confirm the function and standard directly.
