Industrial Weatherproof Telephone for Tunnel Project -JWAT306-J

Short Description:

Joiwo Waterproof series was developed for maritime, energy and industrial areas requiring a virtually indestructible telephone. Fully contained within a corrosion resistant cast aluminium alloy waterproof case.With a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.Housed in a waterproof and dustproof enclosure and coated with an exterior polyurethane finish.




Product Detail

Product Tags

Product Introduction

  1. Looking for a reliable, durable phone for harsh environments? Our weatherproof telephones are the perfect choice! Designed for use in wet, demanding environments like Maritime Vessels, Offshore Plants, Railways, Tunnels, Highways, Underground Pipe Galleries, Power Plants, and Docks, where safety and efficiency are paramount. Constructed from a sturdy aluminum alloy with just the right thickness, our waterproof telephones maintain an impressive IP67 rating, even with the door open. The door's special treatment keeps internal components, such as the handset and keypad, clean at all times, ensuring clear communication whenever you need it. To meet a variety of needs, we offer a variety of weatherproof phone versions. These include options with stainless steel armored or coiled cords, with or without a door, and with or without a keypad. If you require additional features, please contact us for professional customization.

Features

1.Aluminum alloy die-casting shell, high mechanical strength and strong impact resistance.
2.Standard Analogue phone.
3.Heavy Duty handset with hearing Aid compatible receiver, Noise canceling microphone.
4.Weather proof Protection class to IP67.
5.Waterproof zinc alloy full Keypad with function keys which can be programmed as speed dial/redial/flash recall/hang up/mute button.
6.Wall mounted, Simple installation.
7.Connection: RJ11 screw terminal pair cable.
8.Sound level of ringing:over 80dB(A).
9.The available colors as an option.
10. Self-made telephone spare part available.
11. CE, FCC, RoHS, ISO9001 compliant.

Application

2

Joiwo creates offshore platform communications for your operational crew to stay connected during their everyday operations, especially in hazardous areas. You get integrated solutions to provide crew safety and increase operational efficiency. We create reliable solutions to ensure all your crew members receive critical messages in time and all alarm systems are distributed properly.

Parameters

Item Technical data
Power Supply Telephone Line Powered
Voltage 24--65 VDC
Standby Work Current ≤0.2A
Frequency Response 250~3000 Hz
Ringer Volume >80dB(A)
Corrosion Grade WF1
Ambient Temperature -40~+60℃
Atmospheric Pressure 80~110KPa
Relative Humidity ≤95%
Lead Hole 3-PG11
Installation Wall-mounted

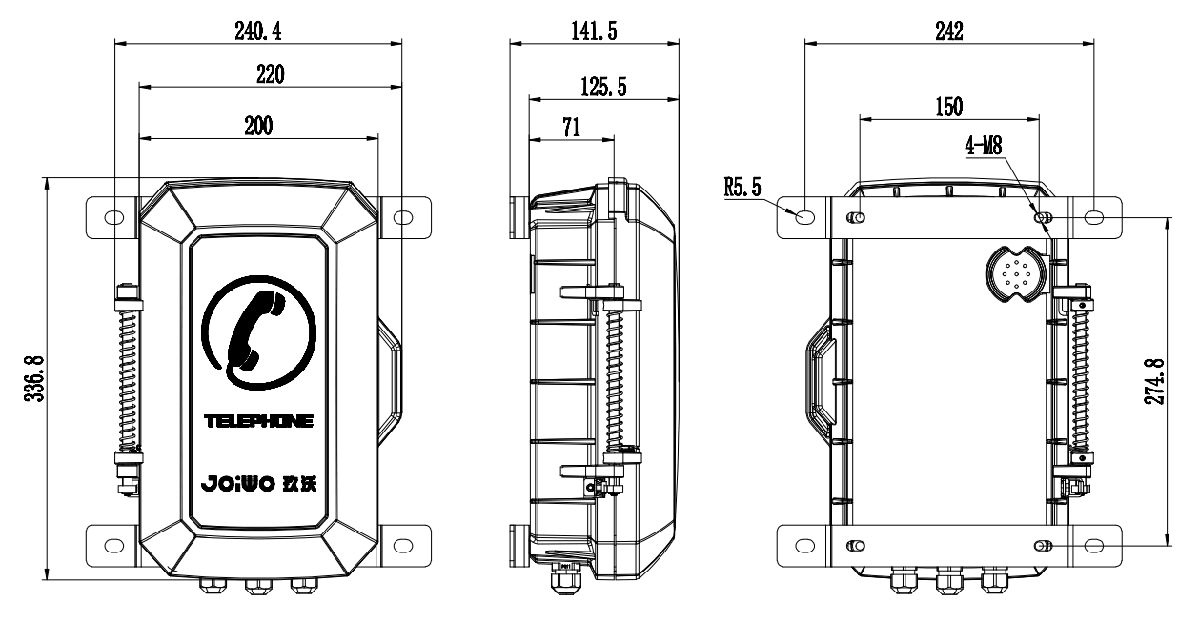

Dimension Drawing

avava

Available Connector

ascasc (2)

If you have any color request, let us know the Pantone color No.

Professional Testing

  1. Our telephone undergoes a multi-step testing process to ensure exceptional quality and reliability. Our tests include structural, performance, and functional assessments, designed to simulate real-world conditions and exceed industry standards. Key methods such as keystroke lifespan testing, salt spray testing, and waterproof testing are applied to guarantee durability. Our professional waterproof phones achieve an IP66-IP67 rating. An IP67 rating means the device is completely dustproof and can withstand being submerged in up to 1 meter of water for 30 minutes without damage. These tests ensure that the product remains functional in harsh environments, providing customers with a device they can trust for long-term use. Testing is not just a step in our production process; it’s a commitment to excellence.
ascasc (3)

85% spare parts are produced by our own factory and with matched test machines, we could confirm the function and standard directly.
